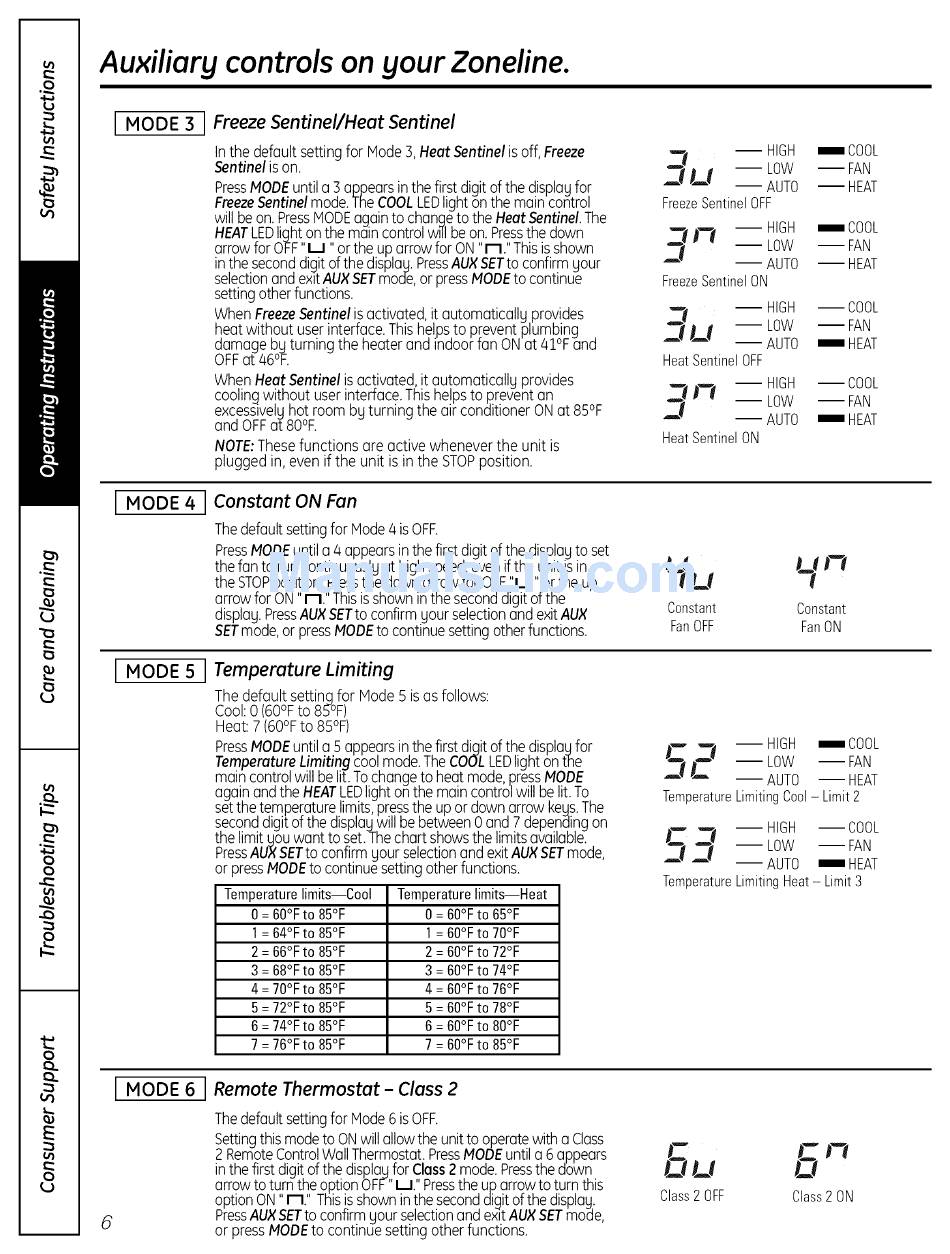

Auxiliarg controls on gour Zoneline.
I MODE 31
[ MODE 4
[ MODE 5
[ MODE 6
6
Freeze Sentinel/Heat Sentinel
Inthe default settingfor Node3, Heat Sentinelis off, Freeze
Sentinelison.
Press NODEuntila 3 appearsin the firstdigitqf the displayfor
Freeze Sentinelmode.TheCOOL LEDlighton the maincontrol
will be on.Press MODE againto chanqeto the HeatSentinel. T he
HEAT LED liqhton the maincontrolw_lbe on.Press the down
arrowfor OFF"u "or the up arrowfor ON"n." Thisisshown
in the seconddigitat thedisplay.Press AUXSETtocontirmyour
selectionand exitAUXSETmode,or pressMODE to continue
settingotherfunctions.
WhenFreezeSentinelisactivated,it automaticallyprovides
heatwithout userinterface.Thishelpsto preventplumbing
damage by turningthe heaterand indoorfan ONat 41% and
OFFat 46%.
WhenHeat Sentinelis activated,it automaticallyprovides
coolingwithout userinterface.Thishelpsto preventan
excessively hot roomby turning the air conditionerONat 85%
and OFF at 80%.
NOTE: T hesefunctions are active wheneverthe unit is
plugged in, evenif the unit is in the STOP position.
HIGH
U --LOW
-- AUTO
Freeze S entinel OFF
9B_ HIGH
-- LOW
-- AUTO
Freeze S entinel ON
HIGH
U --LOW
-- AUTO
HeatSentinel OFF
_h_ HIGH
-- LOW
-- AUTO
Heat S entinel O N
Constant ON Fan
Thedefaultsettingfor Mode4 isOFF.
Press MODE untila 4 appearsin the firstdigit of thedisplayto set
the fan to run continuously at highspeed, e venif the unitis in
the STOP position.Press the down arrowfor OFF "u" or the up
arrowfor ON"I--I."Thisisshownin the seconddigitof the
display.Press AUXSETtoconfirmyourselectionand exitAUX
SET mode,or pressMODE to continuesettingotherfunctions.
h
Constant Constant
Fan OFF Fan ON
Temperature Limiting
The default settinq for Mode 5 isas follows:
Cool:0 (60%to 8_°F)
Heat:7 (60%to 85%)
Press MODE untila 5 appearsin the firstdigit of thedisplagfor
TemperatureLimiting coolmode.TheCOOL LED lighton the
maincontrolwill be lit. Tochange.toheatmode,pressMODE
againand the HEAT LED lighton the maincontrolwill be lit.To
setthe temperaturelimits,press the up or downarrow keys.The
seconddigitat the displagwillbe between0 and 7 depending on
the limit qouwant to set.Thechart showsthe limitsavailable.
Press AU_SETtoconfirmyour selectionand exitAUXSETmode,
or pressMODE to continuesettingotherfunctions.
Temperaturelimits--Coot Temperaturelimits--Heat
0 = 60°F to 85°F 0 = 60°F to 65°F
1 = 64°F to 85°F 1 = 60°F to 70°F
2 = 66°F to 85°F 2 = 60°F to 72°F
3 = 68°F to 85°F 3 = 60°F to 74°F
4 = 70°F to 85°F 4 = 60°F to 76°F
5 = 72°F to 85°F 5 = 60°F to 78°F
6 = 74°F to 85°F 6 = 60°F to 80°F
7 = 76°F to 85°F 7 = 60°F to 85°F
/COOL
-- FAN
-- HEAT
/COOL
-- FAN
-- HEAT
Remote Thermostat - Class 2
Thedefaultsettingfor Mode6 isOFF.
Setting this modeto ONwillallowthe unitto operatewith a Class
2 Remote Contro !WallThermostat. P ress MODE untila 6 appears
in the firstdigitat the displayfor Class2 mode.Press the down
arrowto turnthe optionOFF"u." Press the up arrowto turn this
optionON"I--I." Thisisshownin the seconddigitotthe display.
Press AUXSET to confirmyour selection and exitAUXSETmode,
or pressMODE to continuesetting otherfunctions.
--COOL
-- FAN
I
HEAT
--COOL
-- FAN
I
HEAT
C cn
EIU C!
Class 2 OFF Class 2 ON
HIGH --COOL
59 --LOW --FAN
--AUTO IHEAT
Temperature LimitingHeat- Limit 3
I__ _ HIGH i COOL
AlJ._ --LOW --FAN
--AUTO --HEAT
Temperature Limiting Cool - Limit2
