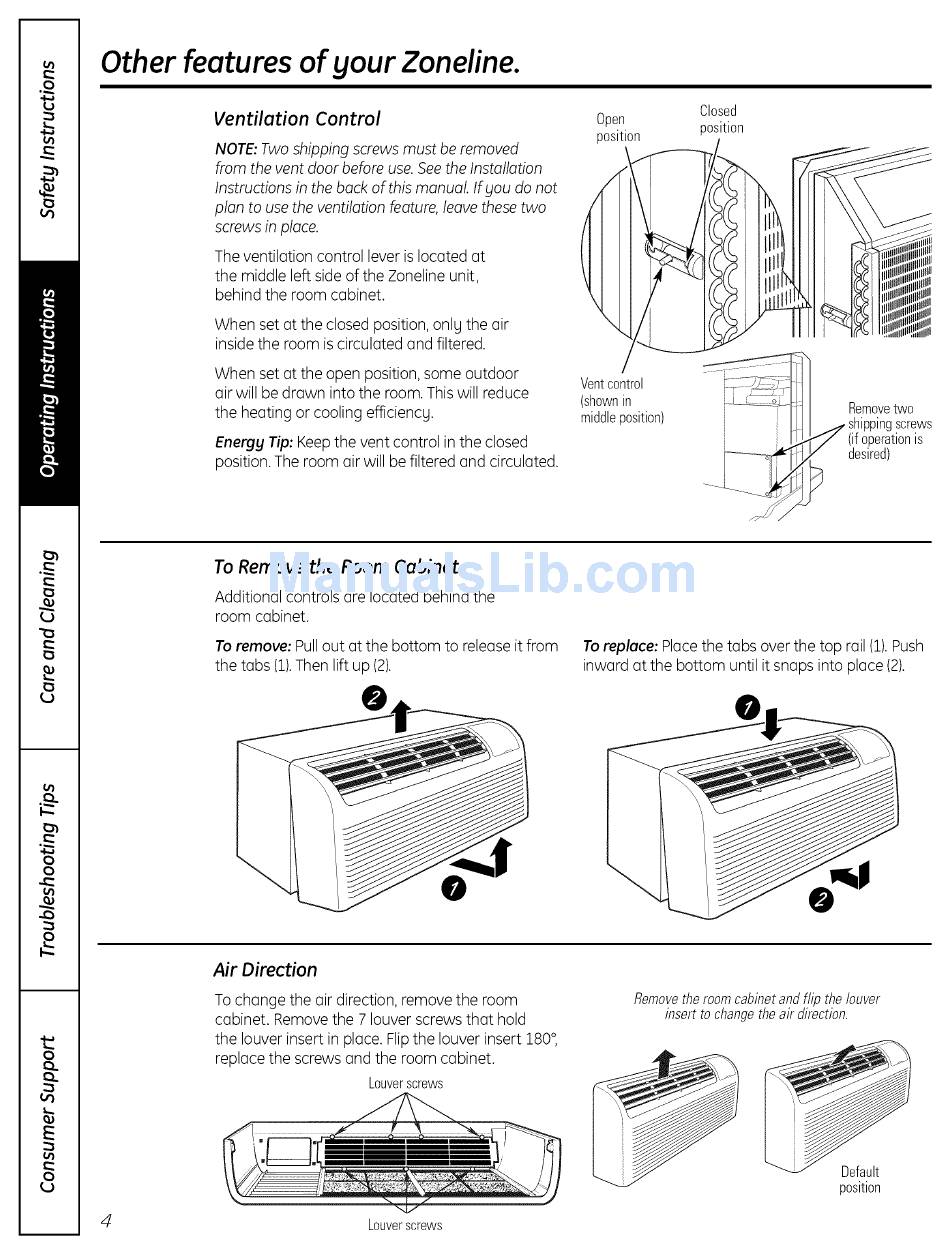

Other features of your Zoneline.
Ventilation Control
NOTE:Two shipping screws must be removed
from the vent door before use..Seethe Installation
Instructions in the back of this manual. If you do not
plan to use the ventilation feature, leave these two
screws in place.
The ventilation control lever is located at
the middle left side of the Zoneline unit,
behind the room cabinet.
When set at the closed position, only the air
inside the room is circulated and filtered.
When set at the open position, some outdoor
air will be drawn into the room. This will reduce
the heating or cooling efficiency.
Energy Tip: Keepthe vent control in the closed
position. The room air will be filtered and circulated.
Open
position
l
Ventcontrol
(shownin
middleposition)
Closed
position
To Remove the Room Cabinet
Additional controls are located behind the
room cabinet.
To remove: Pullout at the bottom to releaseit from
the tabs (1).Then lift up (2).
To replace: Placethe tabs over the top rail (1).Push
inward at the bottom until it snaps into place (2).
Air Direction
To change the air direction, remove the room
cabinet. Removethe 7 louver screws that hold
the louver insert in place. Flipthe louver insert 180°
replace the screws and the room cabinet.
Louver s crews
Remove the room cabinet and flip the louver
insert to change the air direction.
Default
position
4
Louver s crews
