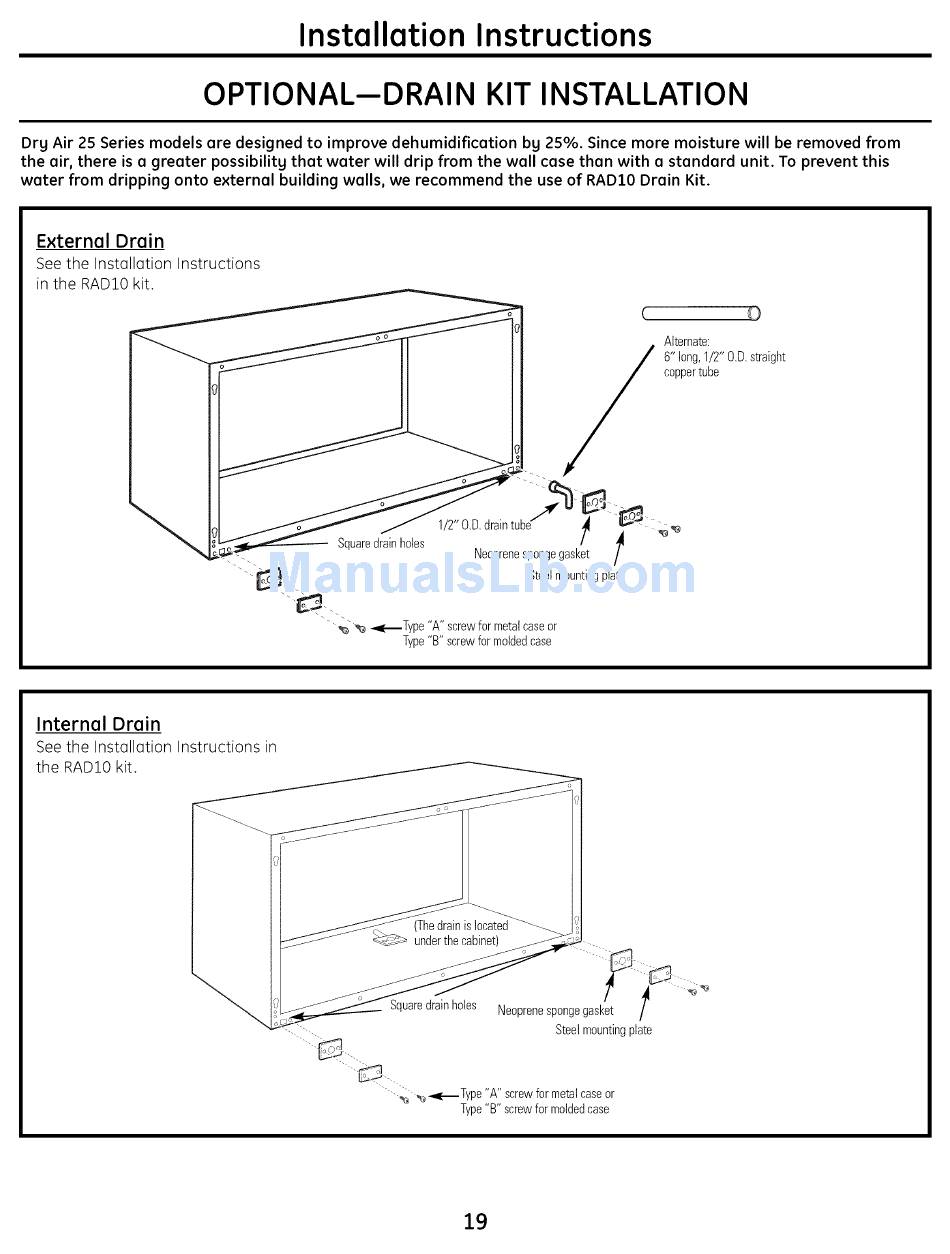

OPTIONAL--DRAIN KIT INSTALLATION
Dry Air 25 Series models are designed to improve dehumidification by 25%. Since more moisture will be removed from
the air, there is a greater possibilitg that water will drip from the wall case than with a standard unit. To prevent this
water from dripping onto external building walls, we recommend the use of RAD10 Drain Kit.
External Drain
See the Instollotion Instructions
in the RADIO kit.
Square d rain holes
"_ _[---Type "A" screw for metal case or
Type "B"screw formolded c ase
Alternate:
6"1ong,1/2" 0.D.straight
coppertube
Internal Drain
See the Instollation Instructions in
the RADIO kit.
(Thedrainis located
underthe cabinet)
Square drainholes Neoprene sponge gasket
Steelmounting plate
- _ ,t__[--Type "A" screw for metal case or
Type "B"screw formolded c ase
