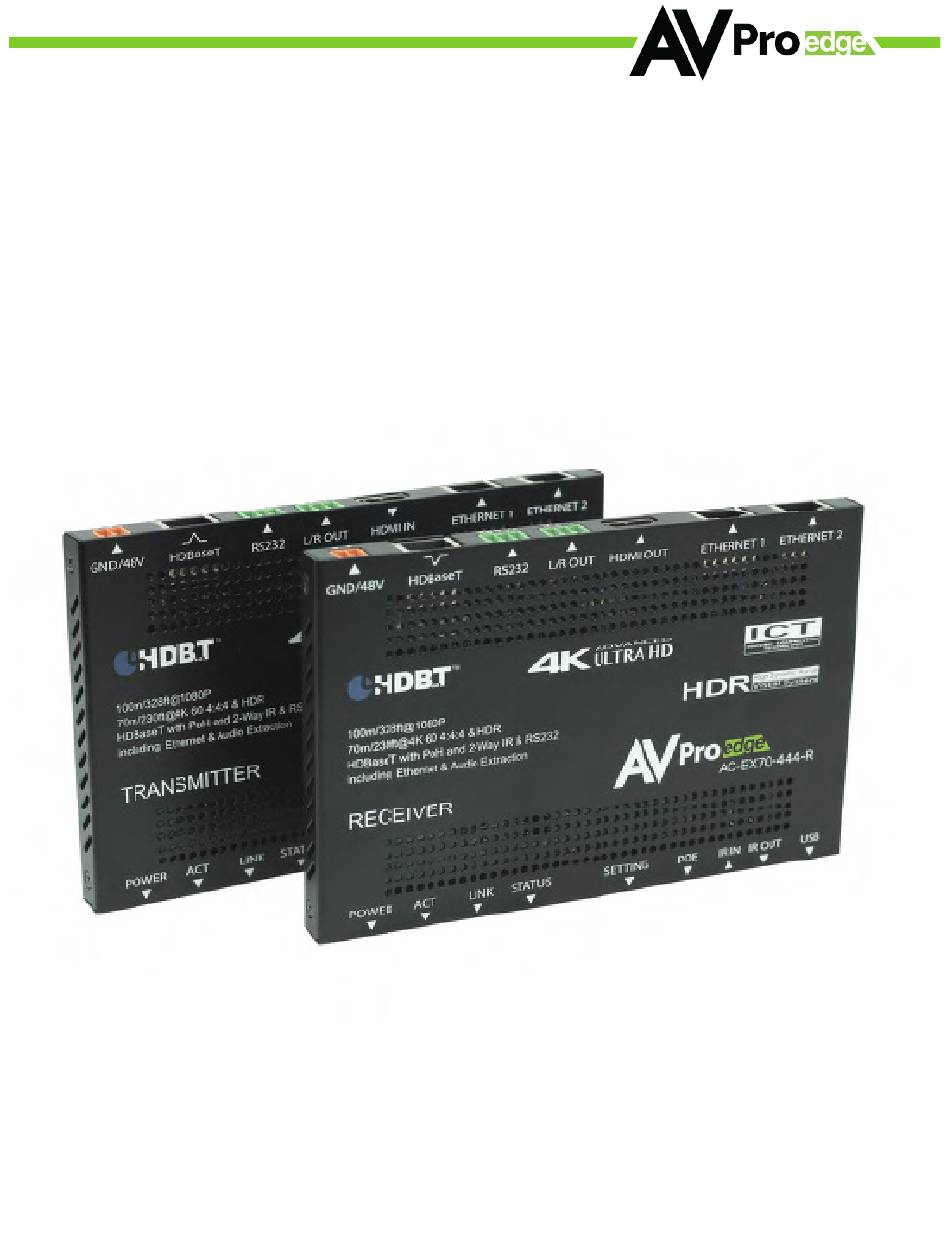

- Page 1 USER MANUAL Ultra Slim 70m (100m HD) 4K60 4:4:4, HDR HDBaseT Extender Audio Extraction, EDID Management, Scaling & Ethernet AVPROEDGE ~ 2222 E 52ND STREET N, SIOUX FALLS, SD 57104 ~ 1.877.886.5112 ~ +.605.274.6055 ~ SUPPORT@AVPROEDGE.COM...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION FEATURES WHAT’S IN THE BOX SPECIFICATIONS TRANSMITTER • ETHERNET LIGHTS & USAGE • FUNCTIONS & SETUP • EDID MANAGEMENT • COPY DEVICE EDID RECEIVER • ETHERNET LIGHTS & USAGE • FUNCTIONS & SETUP RS-232 CONFIGURATION IR CONFIGURATION IR CONNECTIONS AUDIO EXTRACTION STERO CABLE PREPARATION... -
Page 3: Introduction
AVPro Edge presents its first 18Gbps over copper extender Using ICT (Invisible Compression Tech- nology) we have achieved what was thought to be impossible We can deliver a virtually lossless high bandwidth 4K HDR signal with support for all signals up to 18Gbps Deep Color and HDR... -
Page 4: Specifications
AVPROEDGE ~ 2222 E 52ND STREET N, SIOUX FALLS, SD 57104 ~ 1.877.886.5112 ~ +.605.274.6055 ~ SUPPORT@AVPROEDGE.COM... -
Page 5: Transmitter
THE TRANSMITTER Back L/R Out (PCM Only) HDBaseT RS232 Ethernet Ports HDMI In COM & Pass-through 10/100 IR Out IR In Front IR Mode Micro USB Indicator Troubleshooting Lights on the Transmitter: (Firmware) POWER - On the front: (Red) This is an indicator that the power is connected There are only two states for light: •... - Page 6 Indicator Troubleshooting Lights on the Transmitter Cont. LINK - Above RJ45 (HDBT) Port: (Green) This indicator shows that the AV HDBT link between the Tx and Rx is in tact This light should ALWAYS be solid If this light is flashing or not present attempt following: Check the length The maximum distances are 70m (230ft) on 4K and 100m (330ft) on 1080P 2 Remove any coils of cable and make sure that there is not excess cabling 3 Bypass all patch panels and punch-down blocks...
-
Page 7: Ethernet Lights & Usage
ETHERNET LIGHTS & USAGE: Ethernet usage is very straight-forward It is used for driving network communication over the HDbaseT link The purpose of these ports is to act as a “Hub”, if you plug one port into a router all the other ports on both the Tx &... -
Page 8: Functions & Setup
Functions & Setup of the Transmitter: IR Mode Slide Switch: (On Front) This is used to select a preferred IR Mode - There are two modes: • IR-EYE - The IR Input will be configured to operate with an IR Receiver Eye •... - Page 9 EDID Management: GEN3 (If Purchased after April 2024) This is the side you can view EDID LED lights 4th vent hole decal side up: You can see it in multiple vent holes, just depends on the angle Zoomed In 1 2 3 4 EDID LED FLASHES LED STATUS...
-
Page 10: Copy Device Edid
COPY DEVICE EDID While in the USER EDID state (8), press and hold the setting button (for 4 seconds) in order to copy the EDID from the connected display or downstream device to the user EDID and it will apply automatically Why do this? This is commonly used when there is a need for a specific, known EDID that the installer may... -
Page 11: Receiver
THE RECEIVER Back L/R Out (PCM Only) HDBaseT RS232 Ethernet Ports HDMI In COM & Pass-through 10/100 IR Out IR In Front POE Mode Micro USB Indicator Troubleshooting Lights on the Receiver: (Firmware) POWER - On the front: (Red) This is an indicator that the power is connected There are only two states for light: •... - Page 12 Indicator Troubleshooting Lights on the Receivercont LINK - Above RJ45 (HDBT) Port: (Green) This indicator shows that the AV HDBT link between the Tx and Rx is in tact This light should ALWAYS be solid If this light is flashing or not present attempt following: Check the length The maximum distances are 70m (230ft) on 4K and 100m (330ft) on 1080P 2 Remove any coils of cable and make sure that there is not excess cabling 3 Bypass all patch panels and punch-down blocks...
-
Page 13: Ethernet Lights & Usage
Ethernet Lights & Usage: Ethernet usage is very straight-forward It is used for driving network communication over the HDbaseT link The purpose of these ports is to act as a “Hub”, if you plug one port into a router all the other ports on both the Tx &... -
Page 14: Functions & Setup
Functions & Setup of the Receiver: POE Slide Switch (On Front) This is used to select how you want to PoE is to be directed There are two options (you are choosing where the power is ORIGINATING from): • TX (Default)= You will need to power the TRANSMITTER, the receiver will be powered over the CAT Cable (Default) •... -
Page 15: Rs-232 Configuration
RS-232 CONFIGURATION RS-232 can be used to pass control signals bi-directionally to & from any RS-232 compatible device This is commonly used to route control signals in the following way: Control System --> Display/Projector (ie, Power On/Off) 2 Display/Projector --> Control System (ie, Display Status, Volume Status etc ) 3 When ultra long-range serial communication is needed (think concerts, live events) Use the extender The unit comes with 3 pin connectors to... - Page 16 RS-232 Sample Application AVPROEDGE ~ 2222 E 52ND STREET N, SIOUX FALLS, SD 57104 ~ 1.877.886.5112 ~ +.605.274.6055 ~ SUPPORT@AVPROEDGE.COM...
-
Page 17: Ir Configuration
IR CONFIGURATION IR can be used in three ways: 1. From Rack (Control System Direct) • Plug a MONO 3 5mm cable into an emitter port of any control system directly into the “IR IN” port on the AC-EX40-444 Transmitter to pass IR signals directly to the remote ○... -
Page 18: Ir Connections
IR Connections to AC-EX70-444-T (Transmitter) IR INPUT IR OUTPUT (Receiver Eye) (IR Emitter) IR Connections to AC-EX70-444-R (Receiver) IR INPUT IR OUTPUT (Receiver Eye) (IR Emitter) *NOTE: For best results, only use the provided IR EYE’s and Emitters AVPROEDGE ~ 2222 E 52ND STREET N, SIOUX FALLS, SD 57104 ~ 1.877.886.5112 ~ +.605.274.6055 ~ SUPPORT@AVPROEDGE.COM... -
Page 19: Audio Extraction
Audio Extraction on AC-EX70-444 A feature that is always active on the AC-EX70-444 (Tx and Rx) is Audio Extraction This feature extracts PCM Audio (2ch) from the source device in order to be run to a separate amplifier or AVR BOTH of the audio ports are always active (on Tx & Rx) NOTE - These ports ONLY work if the source is 2ch If downmixing is needed, check out AC-AVDM-AUHD or AC- ADM-COTO To use the ports:... -
Page 20: Stero Cable Preparation
STEREO CABLE PREPARATION NOTE: Pre-made audio cables can be purchased. The part number is: AC-CABLE-3PIN-2CH. Using Ethernet: Ethernet usage is very straight-forward It is used for driving network communication over the HDbaseT link This of these ports as a “hub”, if you plug one port into a router all the other ports on both the Tx &... -
Page 21: Troubleshooting
TROUBLESHOOTING • Verify Power ○Verify POE Switch is correct • Verify Connections - Check that all cables are properly connected ○TX Indicator Troubleshooting Lights ○RX Indicator Troubleshooting Lights • Not passing video, this may be an EDID issue Out of the box the default is EDID BYPASS Try a canned EDID or copy the connected displays EDID •... -
Page 22: Maintenance
MAINTENANCE To ensure the reliable operation of this product and protect the safety of any person using or handling this device while powered, please follow the following instructions • Use the power supply provided If a replacement is required, check voltage, polarity, and verify it has sufficient power to supply this device •... -
Page 23: Damage Requiring Service
DAMAGE REQUIRING SERVICE The unit should be serviced by qualified service personnel if: • The DC power supply cord or AC adapter has been damaged • Objects or liquids have gotten into the unit • The unit has been exposed to rain •... -
Page 24: Warranty
AVPro Edge has developed a warranty anyone can get behind We wanted to remove all the “red tape” from a warranty and simplify it Our 10-YEAR NO BS warranty hinges on three... - Page 25 Engineer Or you may email support@avproedge com or fill out the general contact form at www avproedge com End users may not request an RMA directly from AVPro Edge and will be referred back to the Dealer, Reseller, or Installer...
