AVPro Edge AC-EX70-SC2-R Quick Start Manual

AC-EX70-sc2-r
18G Scaling HDB
b p s
Quick Start Guide

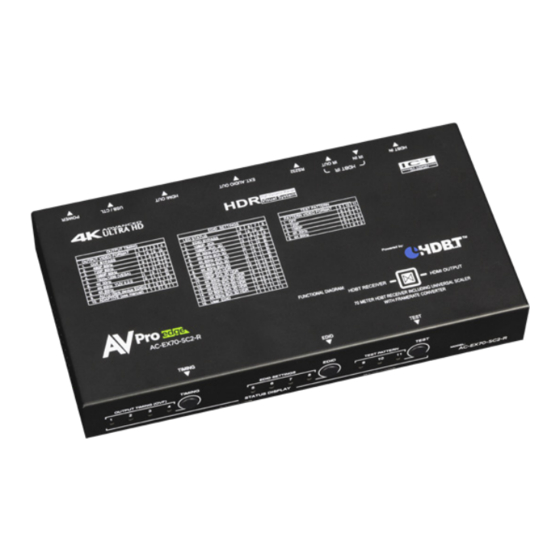

The AC-EX70-SC2-R is the ideal HDBaseT receiver for
integrators who need to distribute 18Gbps video to
current and legacy displays while maintaining the best
quality picture. Featuring bidirectional IR and RS232,
POE, extracted audio via Balanced Analog or Toslink,
480p-4k60 4:4:4 scaling with Interlace to Progressive
conversion, robust EDID management, and a built-in test
pattern generator. The constant resolution output holds
no matter the input signal while the blank black splash
screen eliminates those pesky no signal images when switching.
• Up/Down Scaler
• EDID Manager
• Audio De-embedding
• Troubleshooting
• Legacy Integration
• HDMI Handshake Fixer

How to Install:

1. Connect the SC2 Receiver's HDB
switch.
2. Next connect the HDMI Output to the Input of your sink device.
3. For power, ensure that your Matrix has POE enabled. If not the SC2-Receiver can be
powered with the supplied 48V Power Supply.

Controlling the device:

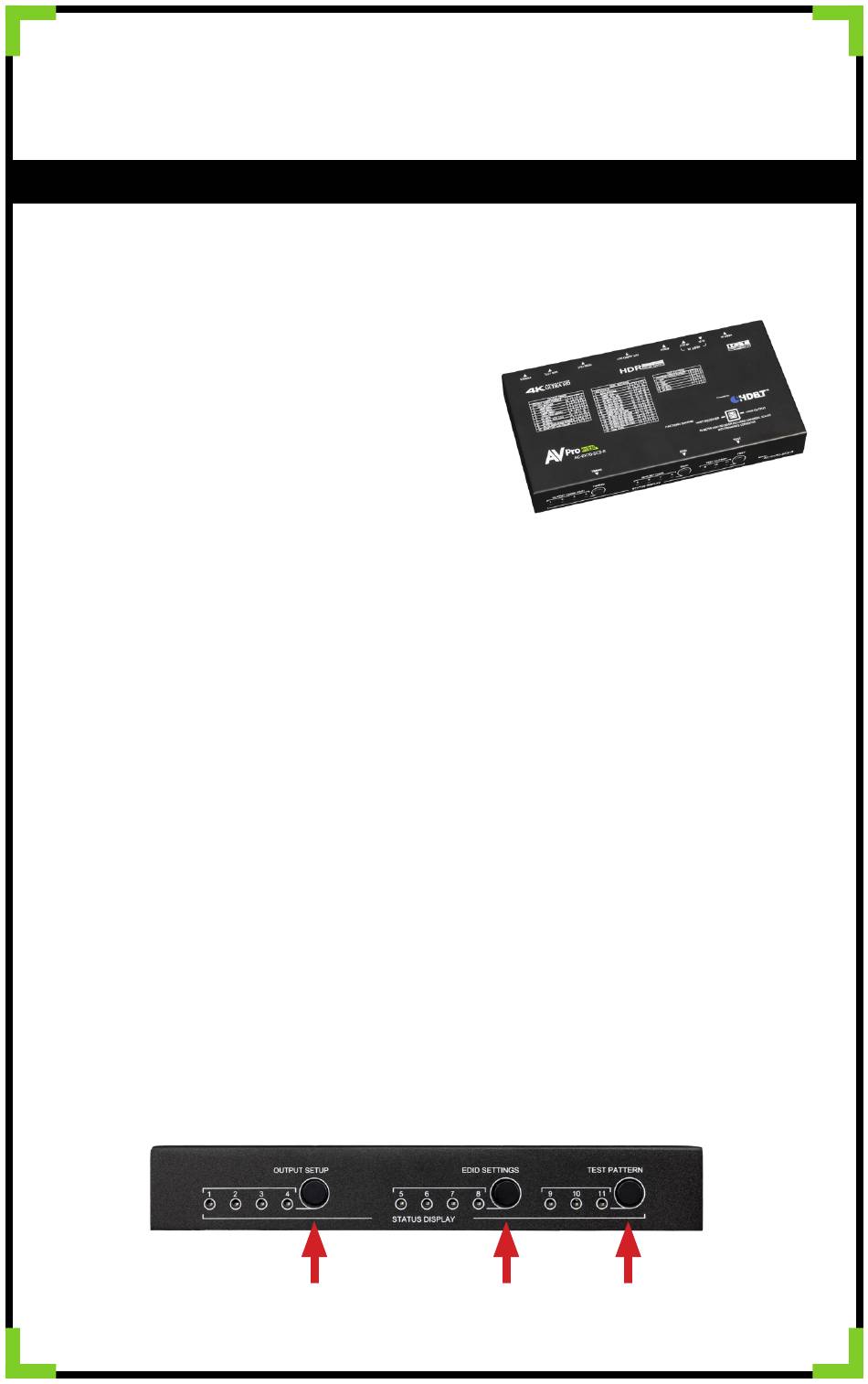

Front Panel:
Output timing, edid settings, and test patterns can all be accessed and controlled by the 3 buttons on
the front of the SC2 Receiver
T Receiver, EDID Manager, Audio De-embedder
a s e
T Input to the HDBaseT Output on your HDB
ase
T Matrix
ase
