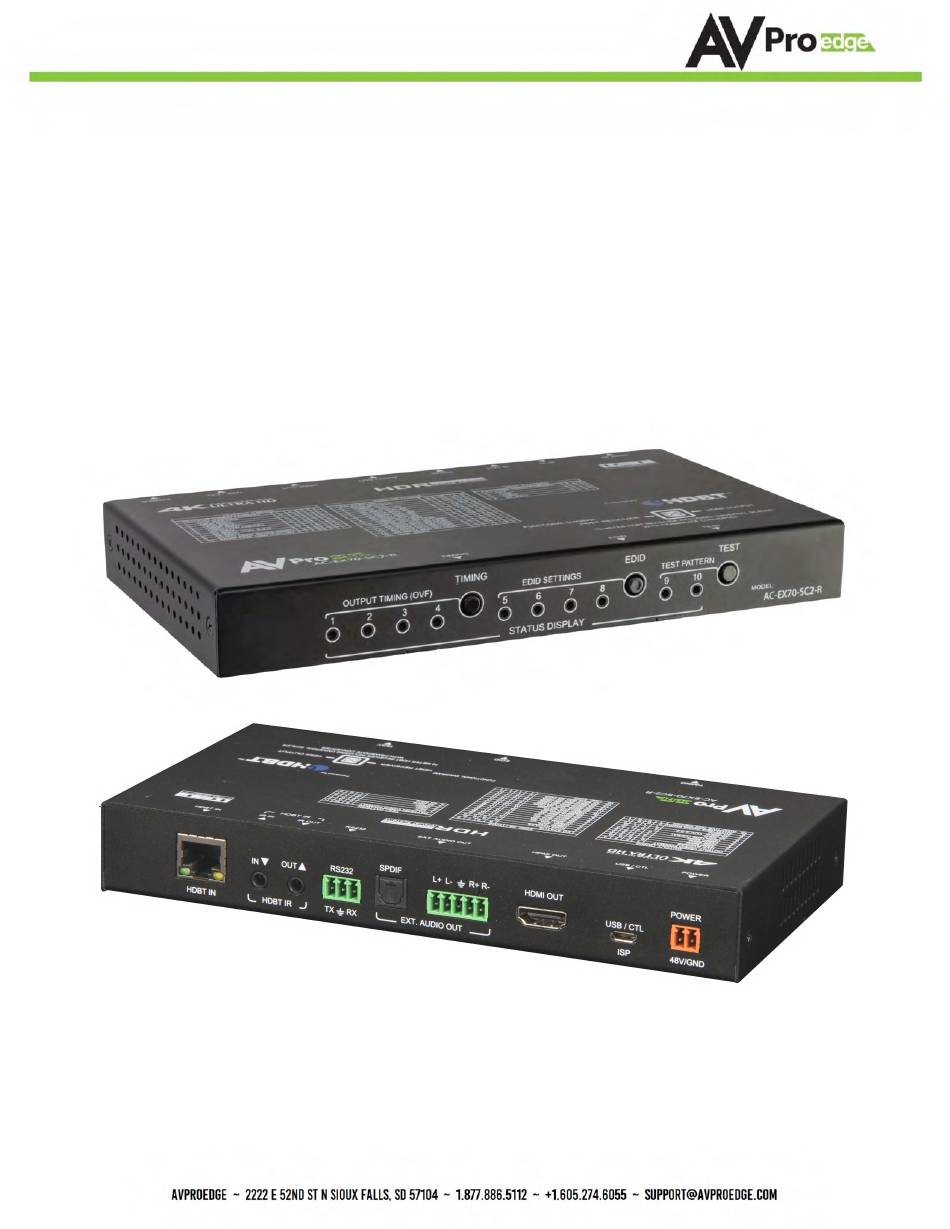

- Page 1 FRESCO-SIX-A-GEN2 USER MANUAL AC-EX70-SC2-R A 70 Meter HDBaseT Receiver with our SC2 scaler built in Page 1...
-
Page 2: Typical Applications
FRESCO-SIX-A-GEN2 The AVPro Edge's AC-EX70-SC2-R is the ideal solution for integrators that are needing to distribute a signal to a variety of displays and keep an optimal picture. Integrators will enjoy it's versatility of not only being able to control up/down scaling but handling EDID issues (including 4K HDR EDID's) and being able to access audio from the stream. - Page 3 FRESCO-SIX-A-GEN2 Page 3...
- Page 4 FRESCO-SIX-A-GEN2 Page 4...
-
Page 5: Overview Back
FRESCO-SIX-A-GEN2 Overview Top/Front Output Timing Button EDID Button Test Pattern Button See Page 6 For More Details See Page 7 For More Details See Page 8 For More Details Overview Back 48V Power HDBaseT Input port HDMI Output... - Page 6 FRESCO-SIX-A-GEN2 OUTPUT TIMING The AVPro Edge's AC-EX70-SC2-R is the ideal solution for integrators that are needing to distribute a signal to a variety of displays and keep an optimal picture. Integrators will enjoy its versatility of not only being able to control up/down scaling but handling EDID issues (including 4K HDR EDID's), image enhancement, and being able to access audio from the stream.
-
Page 7: Edid Settings
FRESCO-SIX-A-GEN2 EDID Settings With EDID Settings you can manage the sources devices and force a certain output. This is especially important on newer sources that rely on EDID communications in implement high bandwidth and HDR signals. • 1080 EDIDs – Legacy EDIDs, these will ask the sources (especially high bandwidth ones) to output 1080 to function in 1080 Systems. -
Page 8: Test Patterns
FRESCO-SIX-A-GEN2 Test Patterns There are four built in Test patterns available To Enable and Disable press "TEST" button to cycle through the 3 resolutions. • 4k 30Hz / 4k 60Hz • 720P • 1080P You can also send the commands... - Page 9 FRESCO-SIX-A-GEN2 CTRL/ISP Micro USB Port for firmware and control. Command list below. For CTRL, use a Micro to USB cable and set the serial communications to: 57600,n,8,1 (baud: 57600, no parity, 8 data bits and 1 stop bit) with no handshaking.
- Page 10 FRESCO-SIX-A-GEN2 Page 10...
-
Page 11: Troubleshooting
FRESCO-SIX-A-GEN2 Troubleshooting • Verify Power - When power is applied all lights on the front of the device will flash. You can also press any of the 3 buttons on the side to change settings, the corresponding lights should change if the unit is powered up. -
Page 12: Maintenance
FRESCO-SIX-A-GEN2 Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to. -
Page 13: Warranty
FRESCO-SIX-A-GEN2 Support Should you experience any problems while using this product, first, refer to the Troubleshooting section of this manual before contacting Technical Support. When calling, the following information should be provided: • Product name and model number • Product serial number •... - Page 14 FRESCO-SIX-A-GEN2 Page 14...
- Page 15 FRESCO-SIX-A-GEN2 Page 15...
- Page 16 FRESCO-SIX-A-GEN2 Thank you for choosing AVProEdge! Please contact us with any questions. We are happy to be of service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge.com Page 16...
