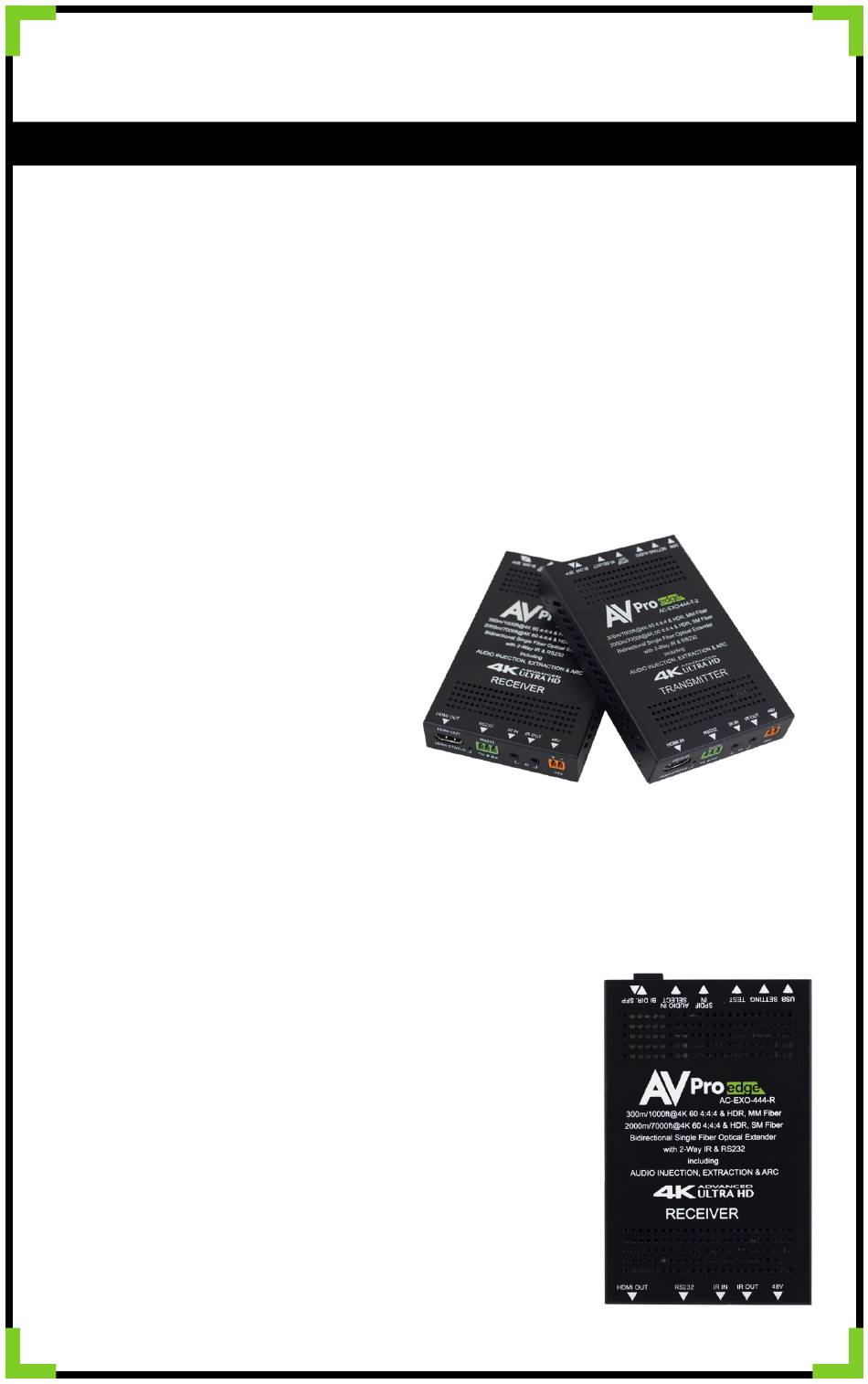

AC-EXO-444-KIT
4K HDMI Extender via Optical Fiber; up to 2 Kilometer
Quick Start Guide
This is AVPro Edge's flagship Fiber Optic Extender, allowing the user to extend an HDMI signal 2 kilo-
meters via single-mode fiber, and up to 300 meters using multi-mode fiber. You can go even further
by installing your own SFP port. It solves problems for both commercial and residential markets
for distributing high value 4K 18Gbps content from rack to display. These extenders go the distance,
no need to find power and cascade extenders for ultra-long runs. Additionally, AC-EXO-444 offers
solutions for 18Gbps distribution in residential, digital entertainment centers, retail stores, AV
events that require reliable and long-distance distribution, suitable for Data Center, Control Rooms,
Conference Rooms, Schools and Corporate Training environment.
This quick start guide will be going
through:
Set up of Transmitter and Receiver
Installation / Recommended conneion order
EDID Management
Scaler settings
RS-232 Configuration
IR Configuration
Test Pattern
Troubleshooting

Setup of the Receiver:

Audio Select Slide Switch: Use this to select where ARC will come from.
There are two modes to choose from:
1. ARC (Default) - The audio sent back to the transmitter will be
from the HDMI Audio Return Channel. The supported formats are
2CH PCM, 6CH/7CH LPCM, DTS 5.1, Dolby Digital, Dolby Digital Plus. In
this mode the SPDIF Input is inactive.
To use ARC via HDMI, make sure ARC in enabled on AVR and
Display properly.
The SPDIF Out on the transmitter will be active for up to
DD+
Dolby Atmos can pass over HDMI ARC
2. SPDIF (Recommended) - The audio sent back to the transmitter will
be from the SPDIF input. The supported formats are 2CH PCM, 6CH/7CH
LPCM, DTS 5.1, Dolby Digital, Dolby Digital Plus. No down-mix, pass
through only. Please see the AC-ADM-COTO for down-mixing.
*NOTE - On the Transmitter, you can retrieve the signal from HDMI or SPDIF Toslink
