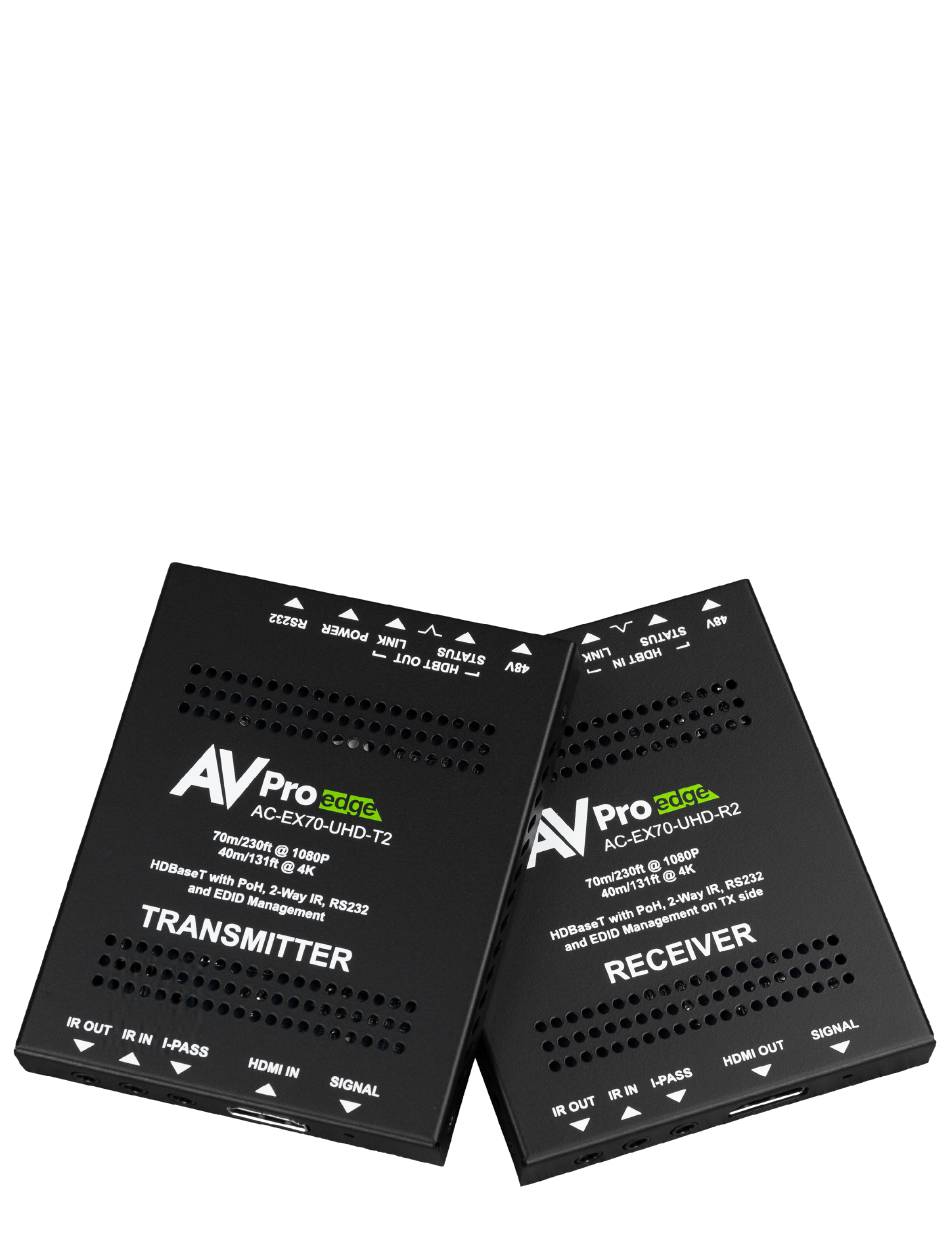

USER MANUAL
Ultra Slim 70 Meter HDMI Via HDBaseT Extender Set
with Bi-Directional Power and EDID Management
AC-EX70-UHD-KIT
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX-EX70-UHD-R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVPro Edge AX-EX70-UHD-R

Summary of Contents for AVPro Edge AX-EX70-UHD-R

  • Page 1 USER MANUAL Ultra Slim 70 Meter HDMI Via HDBaseT Extender Set with Bi-Directional Power and EDID Management AC-EX70-UHD-KIT...

  • Page 2: Table Of Contents

    Table of Contents T A B L E O F C O N T E N T S ������������������������������������������������������������������������������������������������� 2 I N T R O D U C T I O N ����������������������������������������������������������������������������������������������������������� 3 F E A T U R E S ����������������������������������������������������������������������������������������������������������������������� 3 I N T H E B O X �������������������������������������������������������������������������������������������������������������������...

  • Page 3: Introduction

    Introduction The AVPro Edge primary extender is the most cost effective, state of the art, and reliable single CAT 70 meter extender on the market today. It solves problems for both commercial and residential markets for distributing high value 4K UHD content from rack to display.

  • Page 4: Specifications

    Specifications...

  • Page 5: Transmitter Overview

    Transmitter Overview EDID DIP Switches see page 12 HDBaseT RS-232 IR IN HDMI Input 48V Power Power LED RS-232 Operation Mode Switch IR OUT I-PASS HDMI Signal Indicator LED Indicator Troubleshooting Lights - Transmitter POWER - On the back by power HDBaseT RJ45 port: (Red) This is an indicator that the power is connected.
  • Page 6 If the BLUE HDMI SIGNAL LIGHT is flashing, check the following: · The source. Plug it directly into the display to be sure it’s functioning properly. · Try a longer HDMI cable. Some HDMI cables do not sync well at shorter lengths, a 2 meter minimum is recommended per HDMI Specifications.
  • Page 7 Status above the RJ45 (HDBaseT) Port: (Amber) This indicator shows that theres power present between the Tx and Rx. This light blink steadily indicating everything is OK. If you do not see this light attempt the following: · Check the length. The maximum distances are 40m (131ft) on 4K and 70m (230ft) on 1080P.
  • Page 8 Powering the System Bi-Directional Power: The AC-EX70-UHD-KIT allows you to choose where you power the kit. There are two options: · Powering at the HDBaseT Tx - The power will be supplied to the Rx through the CAT cable. · Powering at the HDBaseT Rx - The power will be supplied to the Tx through the CAT Cable (This is known as “Reverse Power) NOTE: There is no button or switch to set the Power Mode�...

  • Page 9: Receiver Overview

    Receiver Overview HDBaseT RS-232 48V Power Power LED RS-232 Operation Mode Switch IR IN HDMI Out put IR OUT I-PASS HDMI Signal Indicator LED Indicator Troubleshooting Lights - Receiver POWER - On the back by power HDBaseT RJ45 port: (Red) This is an indicator that the power is connected.

  • Page 10: I R C O N F I G U R A T I O

    IR Configuration There are three different 3.5mm IR ports located on the Transmitter and Receiver. IR OUT - This port is designed to accept an IR Emitter In the example below an IR receiving eye is plugged into the “IR IN” port of the HDBaseT Transmit- ter, and a IR Emitter is plugged into the “IR OUT”...
  • Page 11 IR IN - This port is designed to accept an IR Receiving Eye/Sensor IPASS - This port is designed to be directly connected to a control system via a 3.5mm Mono cable NOTE: IPASS is only an INPUT. So you can go IPASS in from a control system to IR OUT. Control System >...

  • Page 12: E D I D M A N A G E M E N T - T R A N S M I T T E

    EDID Management - Transmitter Default out of the box all the dip switches are down (off) “BYPASS (HDBT)”mode. This will pass the EDID of the connected display to the source un-altered. NOTE: This is a 10.2Gbps extender, when in “BYPASS (HDBT)”make sure the source is not sending a signal that exceeds this HDBaseT Extender set�...

  • Page 13: R S - 2 3 2 C O N F I G U R A T I O

    • Normal (Default) - This is the standard operating mode and allows for RS-232 pass through. • Program - This is only for updating firmware to the units. For questions on updating firmware, please contact AVPro Edge Technical Support. To use RS-232 for control signal transmission, connect the supplied RS-232 cables to each end of the extenders RS-232 ports.

  • Page 14: T R O U B L E S H O O T I N

    Troubleshooting · Verify Power - Check that the power supply is properly connected and on an active circuit. · Verify Connections - Check that all cables are properly connected. · TX/RX Indicator Troubleshooting Lights - Pg. 5-6 · IR Issues - Verify correct connections - P. 8-9 Note: Visibly flashing Emitters may not function properly, if you are experiencing issue try the IR Cables that come in the box.

  • Page 15: M A I N T E N A N C

    Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. · Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to.

This manual is also suitable for:

Ac-ex70-uhd-kitAc-ex70-uhd-t2Ac-ex70-uhd-r2
