AVPro Edge AC-EX70-UHD-KIT Quick Start Manual

ac-EX70-UHD-KIT
Ultra Slim 4K HDMI via HDBaseT 70 Meter Extender
quick start guide

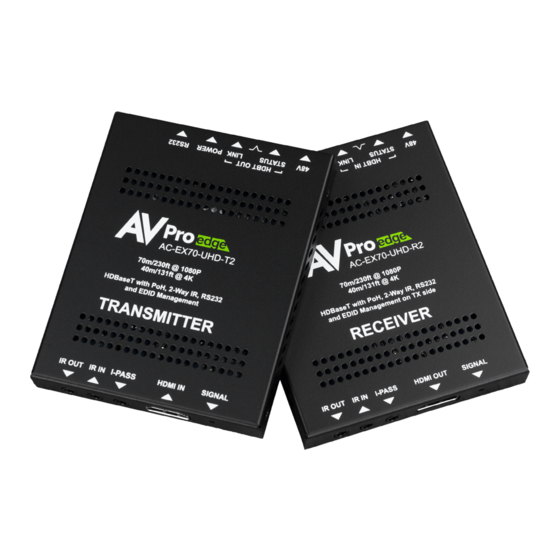

The AVPro Edge AC-EX70-UHD-KIT is a cost effective, HDMI extender using HDBaseT protocol
for transmitting HDMI, IR and RS-232 signals up to 70 meters (depending on resolution) for the
commercial and residential A/V markets. This quick start guide is to acquaint you with the products,
their features, and get the kit up and running. For more details, please see the full manual.
This quick start guide will go through:
•

AC-EX70-UHD-T

• AC-EX70-UHD-R
• Installation/Recommended Connection Order
• RS-232 Configuration
• IR Configuration
• Troubleshooting
AC-EX70-UHD-T

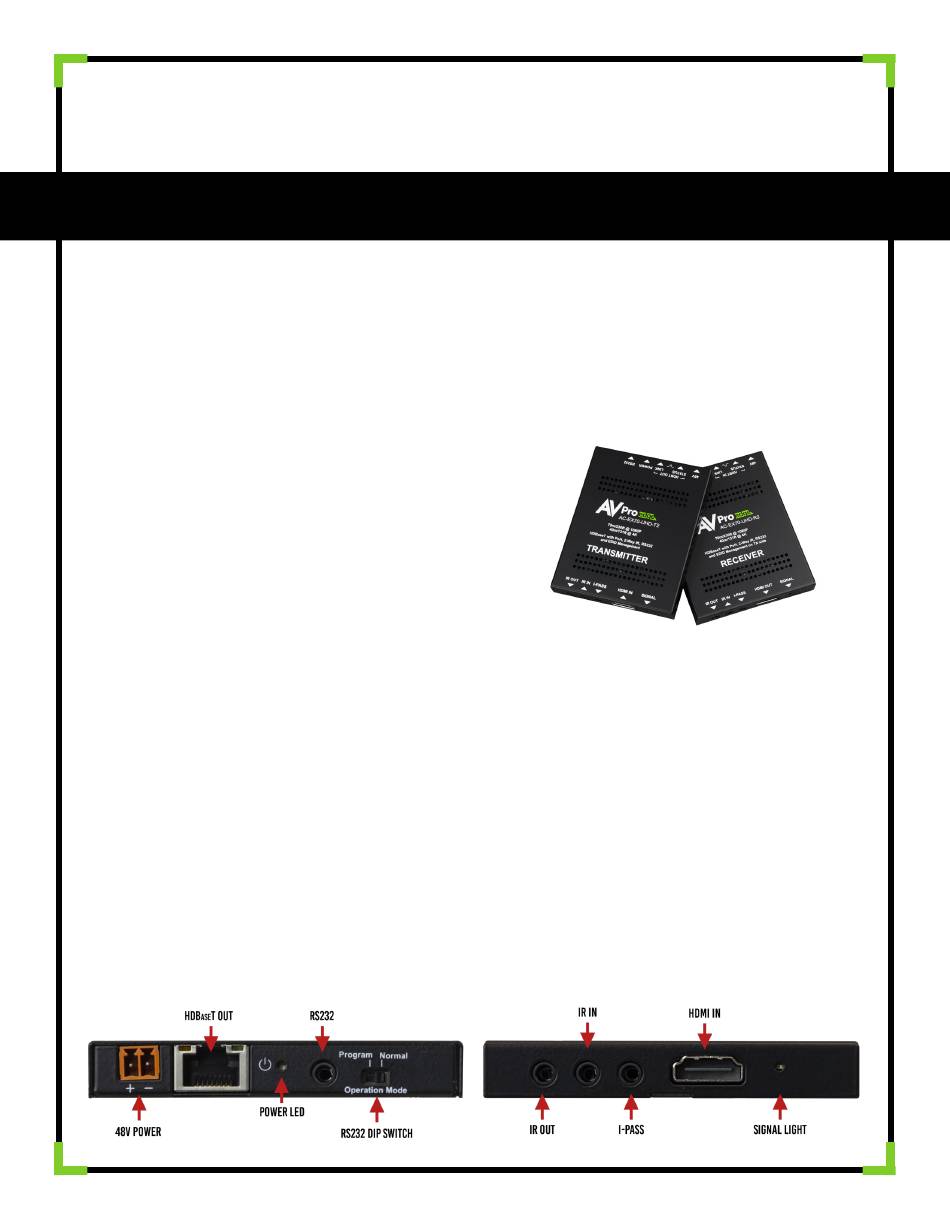

LED Indicators (see images below for unit orientation and led location)
POWER – on the rear of the unit, to the right of the universal power symbol, the led will illuminate red
to indicate power is connected to the 48v input (on the far left of the chassis). It will also show red
when using the bidirectional power option, by connecting power to the AC-EX70-UHD-R and both
units connected via category cabling.
RED indicates the unit is active; if power is expected but the led is not illuminated, check connections
for power and the category wire to both units. Verify the power supply is connected to an active
mains outlet
SIGNAL – on the front of the unit to the right of the HDMI port, the led will illumintate
a source is present at the HDMI port.
The LED indicates the following status:
• A steady, solid blue light indicates sync with the source is correct.
• Flashing indicates sync acquisition is in progress. If the led continues flashing, an image may
not be present (see troubleshooting suggestions for possible solutions)
BLUE to indicate
