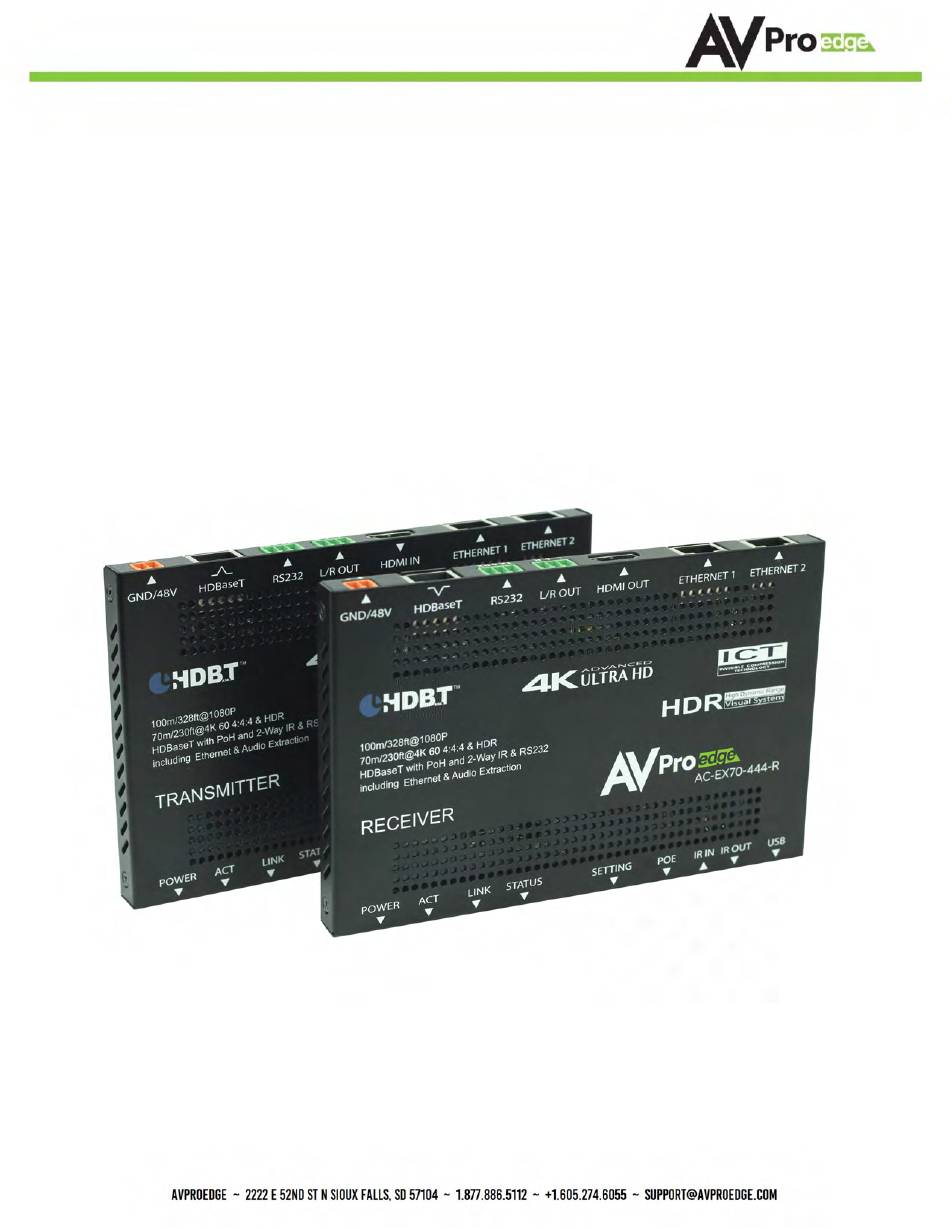

- Page 1 AC-EX70-444-KIT USER MANUAL Ultra Slim 70m (100m HD) 4K60 4:4:4, HDR HDBaseT Extender Audio Extraction, EDID Management, Scaling & Ethernet Page 1...
-
Page 2: Model Numbers
AC-EX70-444-KIT AVPro Edge presents its first 18Gbps over copper extender. Using ICT (Invisible Compression Technology) we have achieved what was thought to be impossible. We can deliver a virtually lossless high bandwidth 4K HDR signal with support for all signals up to 18Gbps. Deep Color and HDR Metadata remain intact making the transmission free of artifacts like banding. - Page 3 AC-EX70-444-KIT Page 3...
- Page 4 AC-EX70-444-KIT Page 4...
- Page 5 AC-EX70-444-KIT The Transmitter L/R Out ■ Back HDBaseT (PCM Only) Ethernet Ports HDMI In RS232 10/100 COM & Pass-through) Front IR In IR Out Micro USB IR Mode (Firmware) Indicator Troubleshooting Lights on the Transmitter: POWER - On the front: (Red) This is an indicator that the power is connected.
- Page 6 AC-EX70-444-KIT Indicator Troubleshooting Lights on the Transmitter cont.: LINK - Above RJ45 (HDBT) Port: (Green) This indicator shows that the AV HDBT link between the Tx and Rx is in tact. This light should ALWAYS be solid. If this light is flashing or not present attempt following: 1.
- Page 7 AC-EX70-444-KIT Functions & Setup of the Transmitter: IR Mode Slide Switch: (On Front) This is used to select a preferred IR Mode - There are two modes: • IR-EYE - The IR Input will be configured to operate with an IR Receiver Eye.
- Page 8 AC-EX70-444-KIT COPY DEVICE EDID While in the USER EDID state (8), press and hold the setting button (for 4 seconds) in order to copy the EDID from the connected display or downstream device to the user EDID and it will apply automatically.
- Page 9 AC-EX70-444-KIT The Receiver L/R Out ■ Back HDBaseT (PCM Only) Ethernet Ports HDMI In RS232 10/100 COM & Pass-through) Front IR In IR Out Micro USB POE Mode (Firmware) Indicator Troubleshooting Lights on the Receiver: POWER - On the front: (Red) This is an indicator that the power is connected.
- Page 10 AC-EX70-444-KIT Indicator Troubleshooting Lights on the Receivercont.: LINK - Above RJ45 (HDBT) Port: (Green) This indicator shows that the AV HDBT link between the Tx and Rx is in tact. This light should ALWAYS be solid. If this light is flashing or not present attempt following: 1.
-
Page 11: Test Pattern
AC-EX70-444-KIT Functions & Setup of the Receiver: POE Slide Switch: (On Front) This is used to select how you want to PoE is to be directed. There are two options (you are choosing where the power is ORIGINATING from): • TX (Default)= You will need to power the TRANSMITTER, the receiver will be powered over the CAT Cable (Default). - Page 12 AC-EX70-444-KIT RS-232 Configuration ■ RS-232 can be used to pass control signals bi-directionally to & from any RS-232 compatible device. This is commonly used to route control signals in the following way: 1. Control System --> Display/Projector (ie, Power On/Off) 2.
- Page 13 AC-EX70-444-KIT RS-232 Sample Application ■ Page 13...
- Page 14 AC-EX70-444-KIT IR Configuration ■ IR can be used in three ways: 1. From Rack (Control System Direct): Plug a MONO 3.5mm cable into an emitter port of any control system directly into the "IR IN" port on the AC-EX40-444 Transmitter to pass IR signals directly to the remote end. NOTE - Be sure the IR MODE Slide Switch is set to "I-PASS"...
- Page 15 AC-EX70-444-KIT IR Connections to AC-EX70-444-T (Transmitter) ■ IR INPUT IR OUTPUT (Receiver Eye) (IR Emitter) IR Connections to AC-EX70-444-R (Receiver) ■ IR INPUT IR OUTPUT (Receiver Eye) (IR Emitter) *NOTE: For best results, only use the provided IR EYE's and Emitters...
- Page 16 AC-EX70-444-KIT Audio Extraction on AC-EX70-444 ■ A feature that is always active on the AC-EX70-444 (Tx and Rx) is Audio Extraction. This feature extracts PCM Audio (2ch) from the source device in order to be run to a separate amplifier or AVR.
- Page 17 AC-EX70-444-KIT Stereo Cable Preparation ■ *NOTE: Pre-made audio cables can be purchased. The part number is: AC-CABLE-3PIN-2CH. Using Ethernet: ■ Ethernet usage is very straight-forward. It is used for driving network communication over the HDbaseT link. This of these ports as a "hub", if you plug one port into a router all the other ports on both the Tx & Rx now have access to the network.
-
Page 18: Troubleshooting
AC-EX70-444-KIT Troubleshooting ■ • Verify Power - Pg. 5 & 9 o Verify POE Switch is correct - Pg. 11 • Verify Connections - Check that all cables are properly connected o TX Indicator Troubleshooting Lights - Pg. 5-6 o RX Indicator Troubleshooting Lights - Pg. 9-10 •... -
Page 19: Maintenance
AC-EX70-444-KIT Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to. -
Page 20: Warranty
AC-EX70-444-KIT Support Should you experience any problems while using this product, first, refer to the Troubleshooting section of this manual before contacting Technical Support. When calling, the following information should be provided: • Product name and model number • Product serial number •... - Page 21 AC-EX70-444-KIT _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 21...
- Page 22 AC-EX70-444-KIT _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 22...
- Page 23 AC-EX70-444-KIT Thank you for choosing AVProEdge! Please contact us with any questions, we are happily at your service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge.com Page 23...
