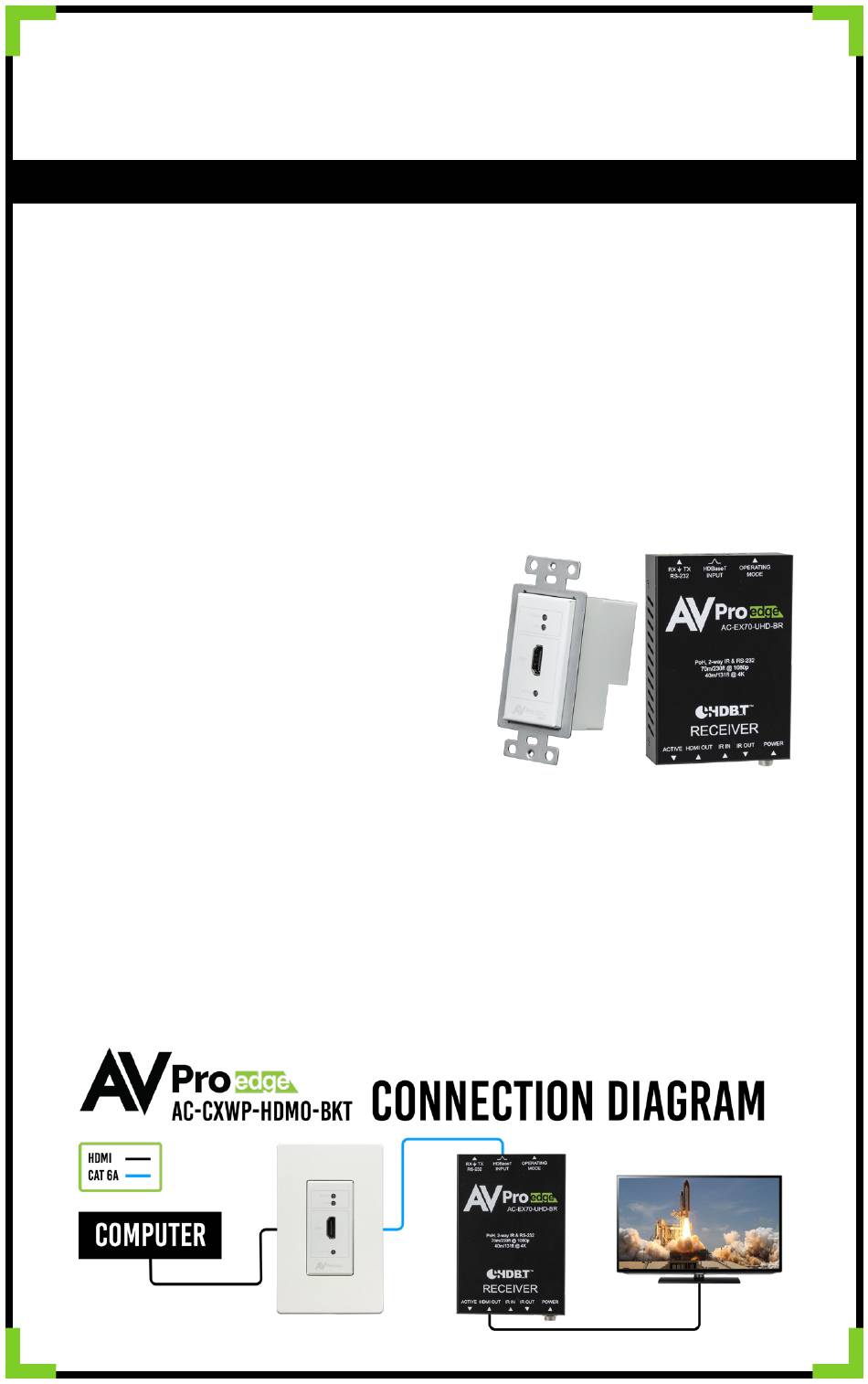

AC-CXWP-HDMO-BKT

Quick Start Guide

This basic HDBaseT wall plate transmitter/receiver kit is a cost effective HDMI extension
product from AVPro Edge's ConferX line of products. Able to handle 4k at 10.2 Gbps, this
single gang wall plate transmitter fits in any standard mud ring and works with standard
category cable to deliver a stable signal long distances. This extender kit is able to send a
4k signal 40 Meters and a 1080p signal 70 meters using CAT6a with HDBaseT technology.
This quick start guide will be going
through:

Installation

Product SPecifications
Installation
1. Connect Cat cable from the wall plate
transmitter to the ex70 receiver
2. Power on the system with the provided power supply. You only need to
power the receiver for both units to receive power.
3. Connect your computer to the wall plate transmitter via HDMI
4. Connect your display to the Receiver via HDMI.
hdmi wall plate 70 Meter Extender

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC-CXWP-HDMO-BKT and is the answer not in the manual?

Questions and answers

Summary of Contents for AVPro Edge AC-CXWP-HDMO-BKT

  • Page 1: Quick Start Guide

    This basic HDBaseT wall plate transmitter/receiver kit is a cost effective HDMI extension product from AVPro Edge’s ConferX line of products. Able to handle 4k at 10.2 Gbps, this single gang wall plate transmitter fits in any standard mud ring and works with standard category cable to deliver a stable signal long distances.
  • Page 2 RS-232 Configuration RS-232 can be used to pass control signals bi-directionally to & from any RS-232 compatible device. In order to connect your computer to the extender by rs232 you need to make your own cable with one end a phoenix connector and the other end a rs-232 port.
  • Page 3: Troubleshooting

    Troubleshooting Verify Power: Verify Connections - Check that all cables are properly connected IR Issues: Verify correct connections - Visibly flashing Emitters may not function properly, try the IR Cables that come in the box if you are experiencing issues Have a question or need assistance? Don’t hesitate to contact us! SUPPORT: +1 605-274-6055...
