4 4 4 E x t e n d e r s
40M, 70M & 100M 18G
q u i c k s ta r t g u i d e
AVPro Edge presents our 18Gbps over copper HDMI extender. Using ICT (Invisible
Compression Technology) we can deliver a virtually lossless high bandwidth 4K HDR
signal with support for all signals up to 18Gbps. Deep Color and HDR Metadata remain
intact making the transmission free of artifacts like banding.
There are 3 different models in the 444 Extender series. Each step up in the series
not only supports longer distances, but also upgraded features. Each extender kit

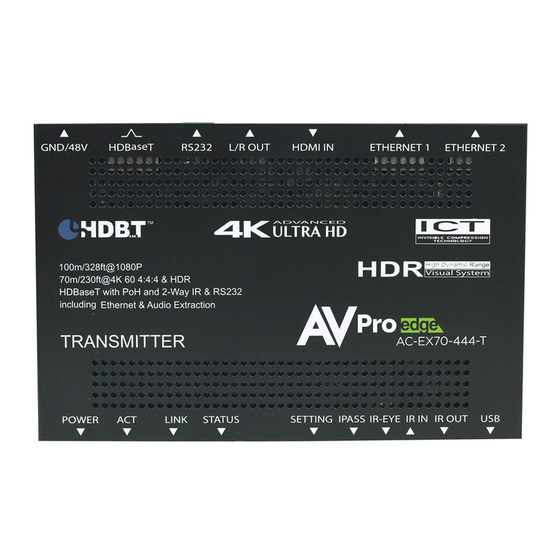

consists of two main pieces, a transmitter (Tx) and a receiver (Rx). The majority
of this Quick Start Guide refers to the AC-EX40-444-KIT. You will find specific
information pertaining to the AC-EX70-444-KIT and the AC-EX100-444-KIT towards
the end of the guide. This guide will walk you through the following topics:
•
Installation
•
EDID Management
•
Scaling
•
Test Pattern Generator
•
IR Control Signals

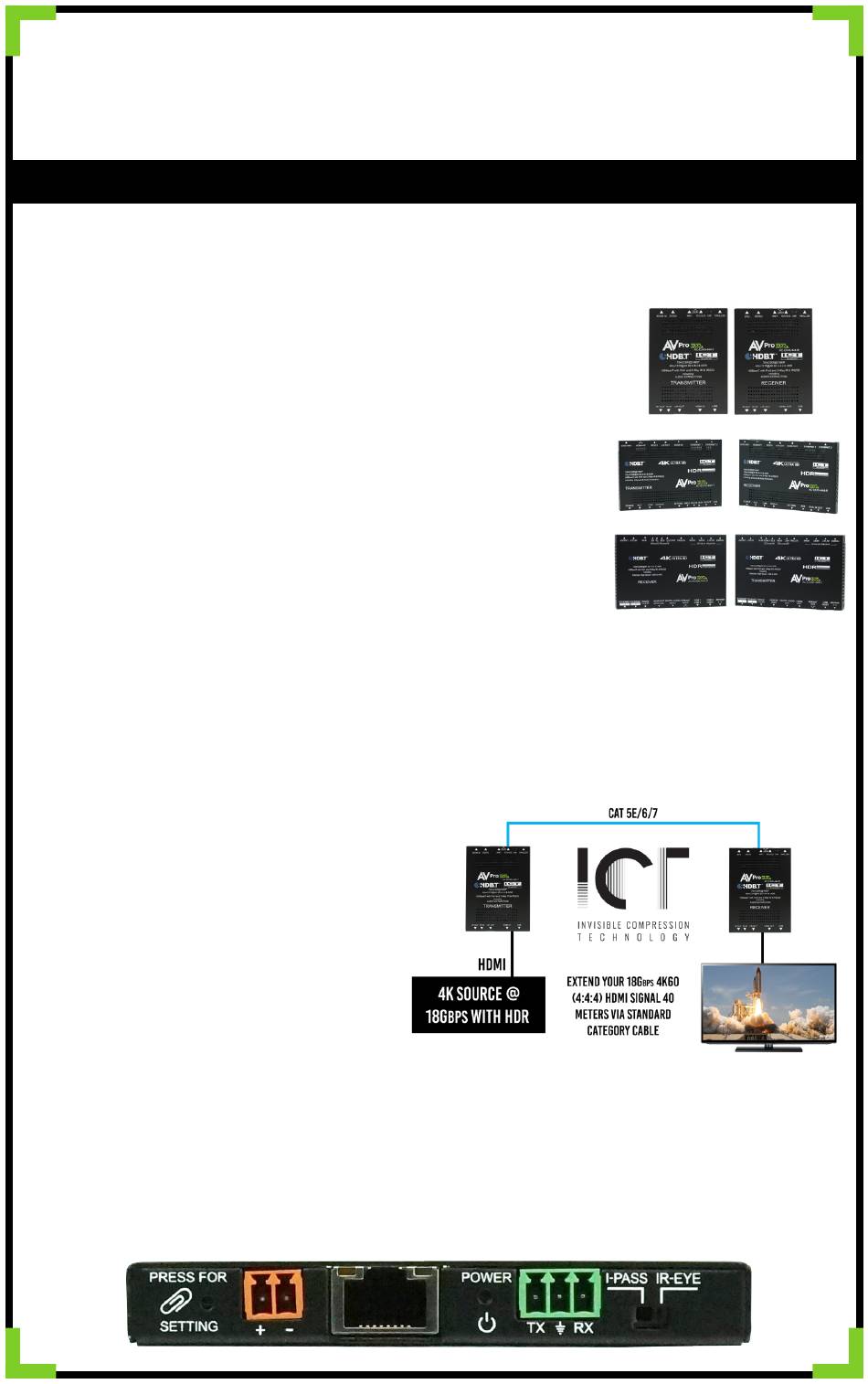

Installation of the Extender:
1.
Install a CAT5e (or better) cable between the
display and the source (be sure to follow local
low voltage code. This varies state to state).
2.
The Tx has an HDMI input. Connect this to the
output of the source with an 18Gbps HDMI cable.
3.
The Rx has an HDMI output. Connect this to the
input of the display with an 18Gbps HDMI cable.
4.
Both the Tx and Rx have an RJ45 HDBT
connector. Connect each end of the installed
Category cable to these ports.
5.
Both the Tx and Rx have an orange 2 pin power connector. You only need to power the Rx or the Tx, not both.
You will notice that the Rx has a switch labeled "POE". This indicates where power originates from. If you power
the Tx, be sure this switch is in the "Tx" position, and if you power the Rx be sure that the switch is in the "Rx"
position.
*NOTE - Only use the included power supply.
4k60 (4:4:4) HDB
bps
•
RS232 Control Signals
•
Audio Extraction
•
Ethernet (AC-EX70-444-KIT & AC-EX100-444-KIT only)
•
USB Extension (AC-EX100-444-KIT only)
•
Troubleshooting
T Extenders with ICT
ase
AC-EX40-444-KIT
AC-EX70-444-KIT
AC-EX100-444-KIT
Advertisement
Table of Contents
Related Manuals for AVPro Edge AC-EX40-444-KIT
Summary of Contents for AVPro Edge AC-EX40-444-KIT
- Page 1 (Tx) and a receiver (Rx). The majority AC-EX70-444-KIT of this Quick Start Guide refers to the AC-EX40-444-KIT. You will find specific information pertaining to the AC-EX70-444-KIT and the AC-EX100-444-KIT towards the end of the guide. This guide will walk you through the following topics: AC-EX100-444-KIT •...
- Page 2 EDID management: EDID management allows you to manage the input device (typically the display) to request specific video resolutions and/or audio codecs from a source. Using a paper clip, pick tool, or pen, press the “SETTING” button on the Tx to toggle between different preset EDIDs. The following choices are available: EDID BYPASS - LED flashes 1 time 1080P 2CH - LED flashes 2 times...
- Page 3 1080P Test Pattern 4K Test Pattern Control Signals: The 444 series extenders can pass control signals from one device to another via IR and RS232. IR Control Signals IR control signals can be sent 3 different ways: From the rack using a control system (Control4, Crestron, etc): Plug one end of a 3.5mm mono cable into the control system Plug the other end of the 3.5mm mono cable into the “IR IN”...
- Page 4 RS232 Control Signals: Both the Tx and Rx have a 3 pin connector labeled “RS232”. You can easily make a control cable using a DB9 cable RS232 control signals can be sent 2 different ways: From the rack using a control system (Control4, Crestron, etc) to the display From the display back to the rack When ultra long RS232 communication is needed (live events, churches, etc) AVPro recommends using the 444 Extender Kit for control signals.
- Page 5 Audio Extraction: This feature will allow you to extract 2ch audio from the source in order to send audio signals to an amplifier or AVR. *NOTE - This feature only works if the audio from the source is set to 2ch PCM. If downmixing is needed, check out the AVPro AC-ADM-AUHD or the AC-ADM-COTO You can make a cable, or a premade cable can be purchased separately (AC-CABLE-3PIN-2CH).
- Page 6 USB Extension (AC-EX100-444-KIT only): In addition to Ethernet passthrough, the AC-EX100-444-KIT adds USB extension and supports ARC (Audio Return Channel). -USB extension will allow you to control a computer 100 meters away with a keyboard or mouse, connect a USB camera, connect a hard drive or thumb drive;...
- Page 7 Clean up your rack with AVPro Edge’s Squid Rack and Power Supply Regardless of the model of the extender kit, you can power up to 8 Rx or Tx units with a single power supply. You can...
- Page 8 Have a question or need assistance? Don’t hesitate to contact us! SUPPORT: +1 605-274-6055 USA TOLL FREE: 877-886-5112 EMAIL: support@avproedge.com Drivers are available at www.avproedge.com/drivers...
