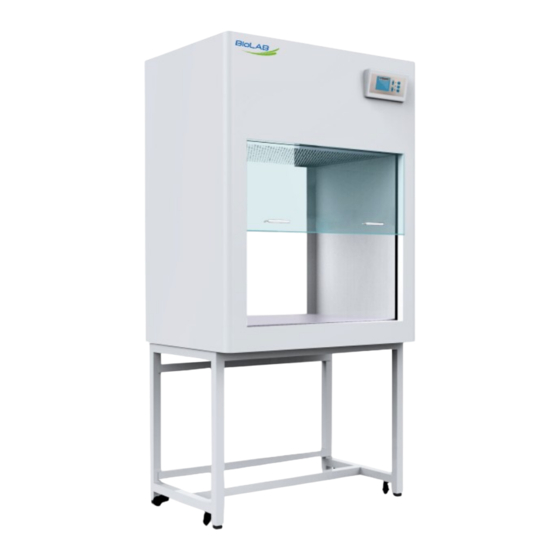

- Page 1 Operation Manual BLVR-202 Vertical Laminar Airflow Thank you for Choosing Biolab products. Please read the “Operating Instructions” and “Warranty” before operating this unit to assure proper operation.
- Page 2 Vertical Laminar Airflow BLVR-202 Index 1. Unpacking, Installation and Debugging........03 2. User Instructions................08 3. Trouble Shooting and Solutions.............18 4. Warranty..................21 www.biolabscientific.com...
-
Page 3: Unpacking, Installation And Debugging
Vertical Laminar Airflow BLVR-202 Unpacking, Installation and Debugging Please firstly check if the packing box is in good condition. If the packing box is damaged, please take photos. 1.1 Unpacking Choose the proper unpacking method and tools as shown in the below picture... - Page 4 Vertical Laminar Airflow BLVR-202 2) Method 2 Use M8 Wrench to unpack (Picture 2). Picture 2 The following diagram demonstrates quick unpacking procedures (Picture 3). Remove the screws as shown in the below diagram, then remove the wooden sheet to right and wooden box to left.
- Page 5 Vertical Laminar Airflow BLVR-202 Picture 3 1.2 Accessories Checking Refer to the packing list and check the accessories. The spare parts as back up, it can be normally used after unpacking. Packing list (BLVR-202) Quantit Items Position Main body 1 unit...
- Page 6 Vertical Laminar Airflow BLVR-202 and installation report Training Certificate 1 pc File Packet On top of main body 1.3 Installation Conditions and Operating Environment Laminar Flow Cabinet shall be placed in the protective area of an air stream, and the working area of the Laminar Flow Cabinet cannot be right opposite to the door...
- Page 7 Vertical Laminar Airflow BLVR-202 Picture 4 1.5 Checking after Installation First, check the electrical power supply, make sure the voltage and frequency match with the Instrument power supply rating, then check the follows items after power on: Checking Items Normal working status...
-
Page 8: User Instructions
The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air. BLVR-202 is vertical type Laminar Flow Cabinet. - Page 9 Vertical Laminar Airflow BLVR-202 2.1.3 Protected Objects Laminar flow cabinets are designed to protect samples and create partial particles-free environment. The main function is to make sure the accuracy of experiment at the operating area. However, it could not protect the environment or operators.
- Page 10 Vertical Laminar Airflow BLVR-202 The voltage increases to 1390V (AC) in 5s and keep for another 5s without breakdown. Grounding resistance ≤0.1Ω. 2.2 Product Structure 2.2.1 Structural Composition of BLVR-202 Picture 6 Picture 6 1. Socket 2. Control panel 3. LED light 4.
- Page 11 Vertical Laminar Airflow BLVR-202 2.2.2 Structure Composition 1. Driving system of front window 2. Driving system consists of constant spring and front window. 3. Air filtration system 4. Air filtration system is the core system of laminar flow cabinet. It consists of blower and HEPA filter system.
- Page 12 Vertical Laminar Airflow BLVR-202 a. Gear indicator To see air speed gears of the equipment through gears indicator. b. Soft touch buttons 1 Laminar flow cabinet’s main functions are executed by touch-buttons. To control fluorescent lamp. To control UV lamp(UV is interlocked with blower and fluorescent light,...
- Page 13 6) HEPA filter life: With the usage time increasing, dust and bacteria accumulate inside HEPA filter. Filter Resistance is getting bigger, when it reaches the maximum point, the speed requirements can’t be met. Then need contact Biolab service department to get a new one. The used filter should be processed as medical waste.
- Page 14 Vertical Laminar Airflow BLVR-202 c) The cabinet should be sterilized by UV lamp for at least 30 minutes with the window fully closed before any experiment. NOTE: 1) For safety of eyes and skin, people should leave the room during UV sterilization.
- Page 15 Vertical Laminar Airflow BLVR-202 2.4.2 Clean the External Surface and Front Window Use a piece of soft cotton cloth or towel with non-abrasive household cleanser to wipe the surface. 2.4.3 Overall Maintenance Period The recommended interval period for comprehensive maintenance is either one year or 1000 working hours.
- Page 16 Vertical Laminar Airflow BLVR-202 than one year needs to be unpacked and checked before selling and using. Only the tested and qualified cabinet could be sold. 2.5 Replacement Parts List BLVR-202 replacement parts list Number Name Specification BH-01 Fuse BH-02...
- Page 17 Vertical Laminar Airflow BLVR-202 2.6 Wiring Diagram www.biolabscientific.com...
-
Page 18: Trouble Shooting And Solutions
Vertical Laminar Airflow BLVR-202 Trouble Shooting and Solutions 3.1 Common Failures and Solutions Please confirm that the power is well connected, the power cord and fuse are in good condition(without any damage). Failure Checking parts Measures Fluorescent lamp LED stand plug... - Page 19 Risk caused by failing to follow those instructions would be responsible by user.; 2) Please contact Biolab or our agent if a failure could not be traced or solved. Do NOT repair the equipment without a qualified electrician; 3) The trouble shooting and repair of this equipment only could be undertaken by trained and recognized technicians;...
- Page 20 Vertical Laminar Airflow BLVR-202 LED stand plug LED stand Picture 10 3.4 Replacement of UV Lamp Ultraviolet intensity should be tested regularly in order to achieve a good disinfection effect. We recommend use Ultraviolet intensity test card to confirm if we need to replace UV lamp.
-
Page 21: Warranty
4.1 Warranty is 12 months from EX-factory date (excluding consumable accessories, UV and Fluorescent lamp, fuse). 4.2 Biolab would not be liable for any repair of damage caused by improper operation.. 4.3 If the warranty has been expired, Biolab would still responsible for repair with relative charges. - Page 22 Vertical Laminar Airflow BLVR-202 BIOLAB SCIENTIFIC LTD. 3660 Midland Avenue, Suite 300, Toronto, Ontario M1V 0B8 Canada Email: contact@biolabscientific.com Tel: +1 707 533 1445 Website: www.biolabscientific.com www.biolabscientific.com...
