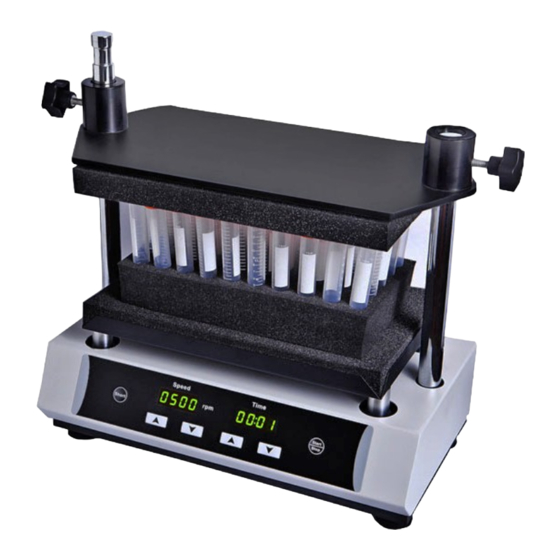

- Page 1 Operation Manual BVMX-201 Multi-tube Vortex Thank you for Choosing Biolab products. Please read the “Operating Instructions” and “Warranty” before operating this unit to assure proper operation.
- Page 2 Multi-tube Vortex BVMX-201 Foreword Thank you for purchasing Multi-Tube Vortexer. This Manual for users contains function and operation of the Instrument. In order to use the instrument properly, please read this manual carefully before using the Instrument. Opening Check Please check the instrument and appendix with the packing list when you first open the packing case.
- Page 3 Multi-tube Vortex BVMX-201 Safety Warnings and Guidelines Important operation information of the security Before operation, please have a perfect conception of how to use the Instrument. Read this manual carefully before using it. Operation before reading the Manual is forbidden. Read the guidelines and directions below and carry out the countermeasure according to them.
- Page 4 Multi-tube Vortex BVMX-201 Before power on, guarantee the voltage used should be accordant to the voltage needed, and the rated load of electrical outlet should not lower than the demand. If the electric line is damaged, you should replace it with the same type. You should assure there’s nothing on the electric line and you should not put the electric line in the ambulatory place.
-
Page 5: Table Of Contents
Multi-tube Vortex BVMX-201 Index 1. Introduction..............................06 2. Specifications...............................07 3. Preparations..............................08 4. Operation Guide............................11 5. Failure Analysis and Handling.......................13 Annex 1 : Wiring Diagram for Multi-tube Vortexer...............14 www.biolabscientific.com... -
Page 6: Introduction
Multi-tube Vortex BVMX-201 Introduction The Multi-tube Vortexer is designed for mechanical and chemical cell lysis, mixing suspensions, and general sample agitation. It gives a distinctly different motion than shaking a sample. With vortexing, greater shearing forces are placed on materials in the bottom of a tube, thus promoting either disruption or solubility. -
Page 7: Specifications
Multi-tube Vortex BVMX-201 Specifications 1. The normal operating condition: Ambient temperature: 4°C ~ 45°C The relative humidity: ≤70% Power supply: AC100-240V 1.5A 2. The basic parameters and function Model Parameter BVMX-201 Speed 500 ~2500rpm Orbit Time Setting 1min ~ 9999min Max. -
Page 8: Preparations
Multi-tube Vortex BVMX-201 Preparations This chapter introduces Multi-Tube Vortexer’s mechanical structure and the central panel’s Support Plate functions and some preparations before power-on. You should be familiar with this chapter before the instrument is first operat 1. Structure Description www.biolabscientific.com... - Page 9 Multi-tube Vortex BVMX-201 2. Keyboard and Display panel Short mix key. Instrument mixes at the highest speed by pressing Short this key continuously, release to stop running. Start Start/Stop key. Pressing this key to start or stop the procedure. Stop Key to increase speed or time setting value.
- Page 10 Multi-tube Vortex BVMX-201 AC100-240V~ 4. Exchangeable Tube Foam Rack Type Parameter Tube Capacity Dimension (mm) BX-103865 10mm 245X132X45 245X132X45 BX-103866 12mm 245X132X45 BX-103867 13mm 245X132X45 BX-103868 16mm/15ml 245X132X45 BX-103869 25mm 245X132X45 BX-103870 50ml 305X178.5X25 BX-103871 Replacement tray pad set www.biolabscientific.com...
-
Page 11: Operation Guide
Multi-tube Vortex BVMX-201 Operation Guide 1. Shaking speed and timing setting a) When the instrument powers on, display screen will 8888 8888 show “ “ one by one with the sound of “du…”. The instrument goes into the initial interface after flicks three times. - Page 12 Multi-tube Vortex BVMX-201 2. Touch-Vortex mode Keep press “Short Mix”, the instrument starts to shake, 00:23 2500 release “Short Mix”, shaking stops. Refer to the right chart, “2500” means shaking speed is 2500rpm, already operated 23s. 3. Pulse mode Keep press of time key synchronously to enter in pulse mode setting.
-
Page 13: Failure Analysis And Handling
Multi-tube Vortex BVMX-201 Failure Analysis and Handling Failure analysis and processing procedures No. Phenomenon Cause Remedy No power Check the connection of power No display Switch Failure Exchange the switch Others Contact the seller Mixing samples Place the mixing samples... -
Page 14: Annex 1 : Wiring Diagram For Multi-Tube Vortexer
Multi-tube Vortex BVMX-201 Annex 1：Wiring Diagram for Multi-tube vortexer BVMX-201 AC100V ~ AC240V J2 DC24V Main Board Motor PORT1 www.biolabscientific.com... - Page 15 Multi-tube Vortex BVMX-201 BIOLAB SCIENTIFIC LTD. 3660 Midland Avenue, Suite 300, Toronto, Ontario M1V 0B8 Canada Email: contact@biolabscientific.com Tel: +1 707 533 1445 Website: www.biolabscientific.com www.biolabscientific.com...
