CD-3603K-ST/3603K-PA
2D Image Scanner
User Manual
Package Contents
CD-3603K-ST
CD-3603K-ST 2D Image
Scanner with Mounting
Bracket for TK-21xx Series
Kiosk
USB cable

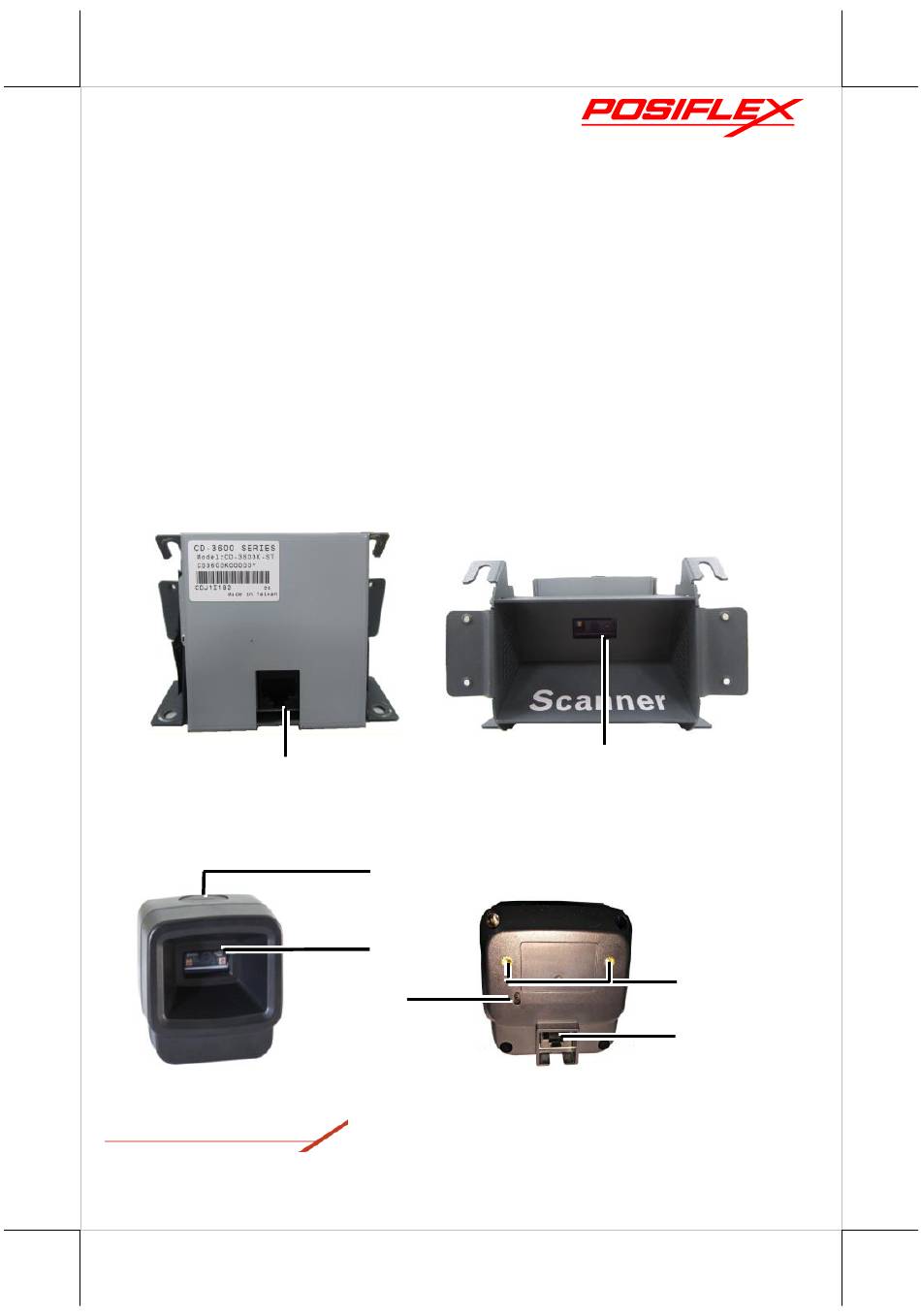

Parts of the 2D Image Scanner
CD-3603K-ST Scanner Module
Interface Cable Connector
CD-3603K-PA Scanner Module
Trigger Button
CD-3603K Ver. A0
1
Scan Window
w/ Object Detector
Beeper Hole
1
CD-3603K-PA
CD-3603K-PA 2D Image
Scanner with Mounting
Bracket for TK-320xx Series
Kiosk
USB cable
Scan Window
w/ Object Detector
Mounting Screw Hole
Interface Cable Connector

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD-3603K-ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for POSIFLEX CD-3603K-ST

Summary of Contents for POSIFLEX CD-3603K-ST

  • Page 1 CD-3603K-ST/3603K-PA 2D Image Scanner User Manual Package Contents CD-3603K-ST CD-3603K-PA   CD-3603K-ST 2D Image CD-3603K-PA 2D Image Scanner with Mounting Scanner with Mounting Bracket for TK-21xx Series Bracket for TK-320xx Series Kiosk Kiosk   USB cable USB cable...
  • Page 2 Installing CD-3603K-ST to TK-21xx Series Kiosk Turn the key of the belly system unit to the right. Then pull the front door of the belly system unit to slide open like a drawer. (1) Push upwards the pusher on the left side of the printer in the belly system unit and then (2) open the monitor.
  • Page 3 Fix the scanner in the belly system from inside with four original hex nuts. Please refer to the picture. Put the speakers on the two sides of the bracket, then fix the speakers with four screws. Please refer to the picture.
  • Page 4 Connect the “USB to RJ45 cable” wot the main board. (1) Pull the sliding bar between the monitor and the belly system unit, and then (2) gently push the monitor to the belly system unit until the monitor is completely closed. 10.
  • Page 5 Hold two sides of the monitor to pull out the monitor from the bottom side. Make sure the crank stopper drop down and then gently release the monitor until it is stuck by the crank stopper. Crank Stopper for Monitor Pull out Put the scanner with mounting bracket inside the kiosk, and then fix it with four hex nuts.
  • Page 6 Connect the “USB to RJ45 cable” to the scanner. Route the cable like the picture on the right side. Route the cable and then connect the cable to the main board refer to the below picture.

  • Page 7: Scanner Maintenance

    Pull the monitor out a bit, lift the crank stopper up with one finger, and then push the monitor back to the back chassis until the monitor is stuck. Pull the monitor out a bit, lift the crank stopper up Push the a little monitor back to...

  • Page 8: Troubleshooting

    Troubleshooting This section contains information about how to solve problems that you may encounter when operating the scanner. If a trouble occurs, please refer to the following diagnostic tips as a mean to solve the trouble. However, before referring to the tips, make sure that the scanner is installed well. If the problem remains, contact your dealer.

  • Page 9: Report Version

    Scan one of the following barcodes to select the USB device type. NOTE: When changing USB Device Types, the engine resets and issues the standard startup beep sequences. NOTE: Before selecting USB CDC Host (Virtual COM), install the USB CDC driver located at Posiflex Global Website.
  • Page 10 USB Keyboard HID USB CDC Host (Virtual COM) SSI over USB CDC Trigger Mode The scanner for EK series model is auto trigger by default. The manual trigger button is for scanner setup. It is highly recommended that the scanner setup is implemented by professional technicians.

  • Page 11: Beep After Good Decode

    Aiming Scan one of the following barcodes to select when to project the aiming pattern in hand-held mode:  Enable Decode Aiming Pattern: This projects the aiming pattern during barcode capture.  Disable Decode Aiming Pattern: This turns the aiming pattern off. ...
  • Page 12 Disable Beep After Good Decode Enabling/Disabling of readable codes Scan the Disable All Code Types bar code to disable all symbologies. Scan Enable All Code Types to enable all symbologies. Disable All Code Types Enable All Code Types *Enable UPC-A Disable UPC-A *Enable UPC-E...
  • Page 13 Disable UPC-E Enable UPC-E1 *Disable UPC-E1 *Enable EAN-8/JAN-8 Disable EAN-8/JAN-8 *Enable EAN-13/JAN-13 Disable EAN-13/JAN-13 Enable Bookland EAN...
  • Page 14 *Disable Bookland EAN Enable ISSN EAN *Disable ISSN EAN *Enable Code 128 Disable Code 128 *Enable GS1-128 Disable GS1-128 *Enable ISBT 128...
  • Page 15 Disable ISBT 128 *Enable Code 39 Disable Code 39 *Enable Code 93 Disable Code 93 Enable Code 11 *Disable Code 11 Enable Interleaved 2 of 5...
  • Page 16 *Disable Interleaved 2 of 5 Enable Discrete 2 of 5 *Disable Discrete 2 of 5 *Enable Codabar Disable Codabar Enable MSI *Disable MSI Enable Chinese 2 of 5...
  • Page 17 *Disable Chinese 2 of 5 Enable Matrix 2 of 5 *Disable Matrix 2 of 5 Enable Korean 3 of 5 *Disable Korean 3 of 5 *Enable GS1 DataBar Omnidirectional Disable GS1 DataBar Omnidirectional Enable CC-C...
  • Page 18 *Disable CC-C Enable CC-A/B *Disable CC-A/B Enable TLC39 *Disable TLC39 *Enable PDF417 Disable PDF417 Enable MicroPDF417...
  • Page 19 *Disable MicroPDF417 *Enable Data Matrix Disable Data Matrix Enable GS1 Data Matrix *Disable GS1 Data Matrix Enable Maxicode *Disable Maxicode *Enable QR Code...
  • Page 20 Disable QR Code *Enable GS1 QR Disable GS1 QR *Enable MicroQR Disable MicroQR *Enable Aztec Disable Aztec Enable Han Xin...
  • Page 21 *Disable Han Xin Enable US Postnet *Disable US Postnet Enable US Planet *Disable US Planet Enable UK Postal *Disable UK Postal Enable Japan Postal...
  • Page 22 *Disable Japan Postal Enable Australia Post *Disable Australia Post Enable Netherlands KIX Code *Disable Netherlands KIX Code Enable USP4 4CB/One Code/Intelligent Mail *Disable USPS 4CB/One Code/ Intelligent Mail Enable UPU FICS Postal...

  • Page 23: Driver Download

    *Disable UPU FICS Postal *Disable Mailmark Enable Mailmark Driver Download Please download the relevant driver that you need from the Posiflex website (https://download.posiflex.com/en- global/Download/index/driver/Kiosk/Stellar_TK-2100-Series). Specifications Item Characteristics Image Resolution 1280 x 960 pixels, rolling shutter Horizontal: 44.5˚ , Vertical: 33.5˚...
  • Page 24 0~107,639 lux (direct sunlight) ※ The product information and specifications are subject to change without prior notice. To get the detailed information of the CD-3603 series, please check this model from Posiflex Global Website. Or download the advanced manual for more detailed settings.
