POSIFLEX CD-HS-SE4107 Quick Installation Manual

POSIFLEX CD-HS-SE4107 Quick Installation Manual

2d image scanner
Hide thumbs

Advertisement

Quick Links

Download this manual
CD-HS-SE4107
2D Image Scanner
Quick Installation Guide
Package Contents
CD-HS-SE4107 2D Image Scanner for HS Series POS Terminal
USB cable

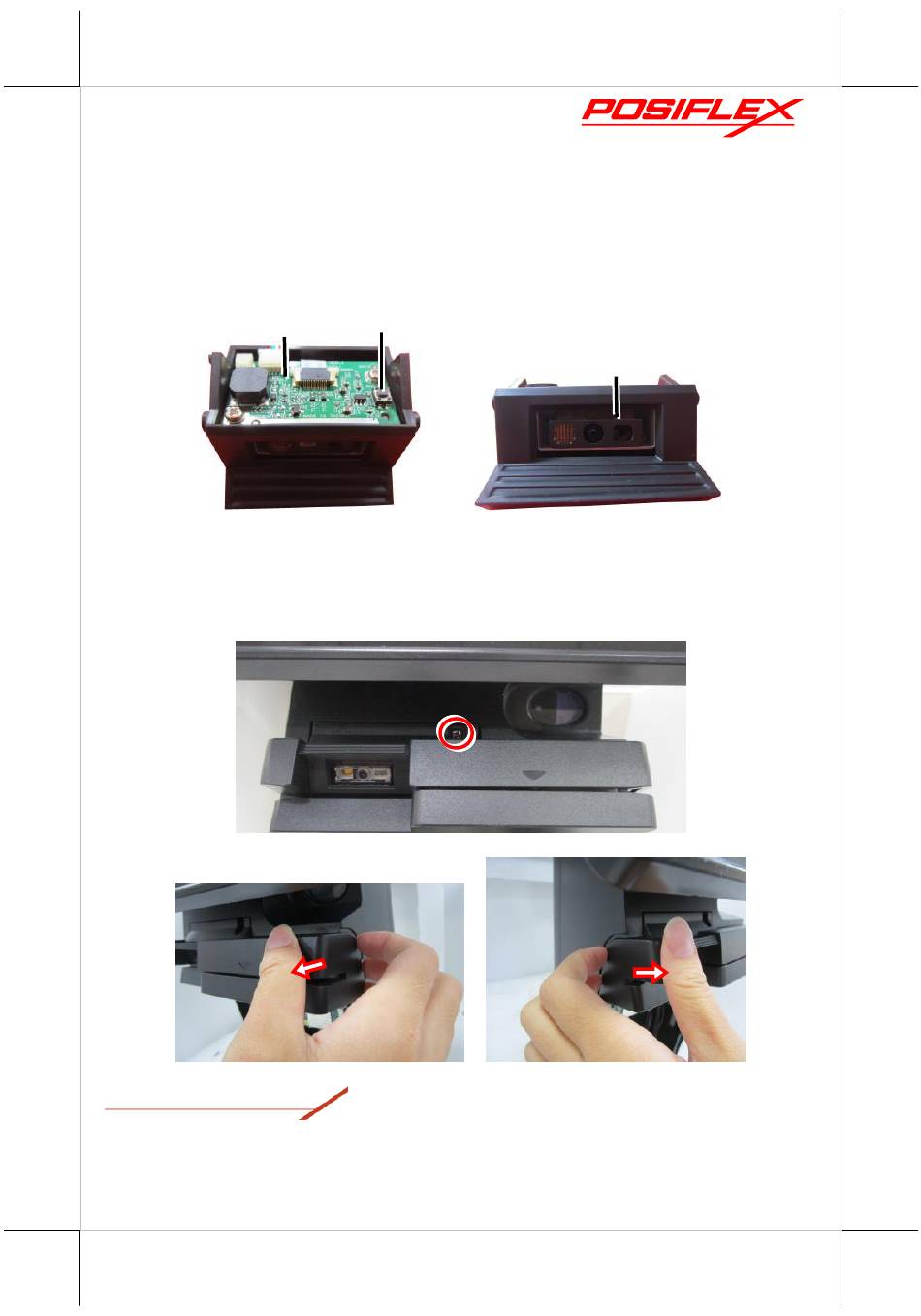

Overview
Control board
Installing CD-HS-SE4107 to HS Series POS Terminal
1.
Remove the MSR & scanner module by loosening one screw, then remove
the module by two hands.
CD-HS-SE4107 Ver. A1
Trigger Button
1
Scan window

Advertisement

loading
Need help?

Need help?

Do you have a question about the CD-HS-SE4107 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for POSIFLEX CD-HS-SE4107

Summary of Contents for POSIFLEX CD-HS-SE4107

  • Page 1 CD-HS-SE4107 2D Image Scanner Quick Installation Guide Package Contents  CD-HS-SE4107 2D Image Scanner for HS Series POS Terminal  USB cable Overview Trigger Button Control board Scan window Installing CD-HS-SE4107 to HS Series POS Terminal Remove the MSR & scanner module by loosening one screw, then remove the module by two hands.
  • Page 2 Install the scanner engine to the MSR & scanner module.
  • Page 3 Fix the plastic 2D fix cover with two Φ3 screws. Connect the scanner cable to the hub board. Fix the MSR & scanner module back to the HS series POS terminal with the original screw.
  • Page 4 Programming Codes Below are some suggestion you need to bear in mind while scanning labels: The barcode labels shown with “ * ” are default factory settings. Please cover the unwanted codes for scanning the specific barcode required for the programming to prevent confusion in code scanning. Use the user manual downloaded from our global website for advanced programming.
  • Page 5 NOTE: When changing USB Device Types, the engine resets and issues the standard startup beep sequences. NOTE: Before selecting USB CDC Host (Virtual COM), install the USB CDC driver located at Posiflex Global Website. USB Keyboard HID USB CDC Host...
  • Page 6 trigger pull activates decode processing. After 2 seconds of inactivity the aiming pattern and internal illumination LEDs automatically shut off. *Standard (Level) Presentation (Blink) Host Auto Aim Auto Aim with Illumination Illumination Selecting Enable Decoding Illumination causes the engine to turn on illumination every image capture to aid decoding.
  • Page 7 Disable Decoding Illumination Aiming Scan one of the following barcodes to select when to project the aiming pattern in hand-held mode:  Enable Decode Aiming Pattern: This projects the aiming pattern during barcode capture.  Disable Decode Aiming Pattern: This turns the aiming pattern off. ...
  • Page 8 *Enable Beep After Good Decode Disable Beep After Good Decode Enabling/Disabling of readable codes Scan the Disable All Code Types bar code to disable all symbologies. Scan Enable All Code Types to enable all symbologies. Disable All Code Types Enable All Code Types *Enable UPC-A Disable UPC-A...
  • Page 9 *Enable UPC-E Disable UPC-E Enable UPC-E1 *Disable UPC-E1 *Enable EAN-8/JAN-8 Disable EAN-8/JAN-8 *Enable EAN-13/JAN-13...
  • Page 10 Disable EAN-13/JAN-13 Enable Bookland EAN *Disable Bookland EAN Enable ISSN EAN *Disable ISSN EAN *Enable Code 128 Disable Code 128...
  • Page 11 *Enable GS1-128 Disable GS1-128 *Enable ISBT 128 Disable ISBT 128 *Enable Code 39 Disable Code 39 *Enable Code 93 Disable Code 93...
  • Page 12 Enable Code 11 *Disable Code 11 Enable Interleaved 2 of 5 *Disable Interleaved 2 of 5 Enable Discrete 2 of 5 *Disable Discrete 2 of 5 *Enable Codabar Disable Codabar...
  • Page 13 Enable MSI *Disable MSI Enable Chinese 2 of 5 *Disable Chinese 2 of 5 Enable Matrix 2 of 5 *Disable Matrix 2 of 5 Enable Korean 3 of 5 *Disable Korean 3 of 5...
  • Page 14 *Enable GS1 DataBar Omnidirectional Disable GS1 DataBar Omnidirecti onal Enable CC-C *Disable CC-C Enable CC-A/B *Disable CC-A/B Enable TLC39...
  • Page 15 *Disable TLC39 *Enable PDF417 Disable PDF417 Enable MicroPDF417 *Disable MicroPDF417 *Enable Data Matrix Disable Data Matrix Enable GS1 Data Matrix...
  • Page 16 *Disable GS1 Data Matrix Enable Maxicode *Disable Maxicode *Enable QR Code Disable QR Code *Enable GS1 QR Disable GS1 QR *Enable MicroQR...
  • Page 17 Disable MicroQR *Enable Aztec Disable Aztec Enable Han Xin *Disable Han Xin Enable US Postnet *Disable US Postnet Enable US Planet...
  • Page 18 *Disable US Planet Enable UK Postal *Disable UK Postal Enable Japan Postal *Disable Japan Postal Enable Australia Post *Disable Australia Post Enable Netherlands KIX Code...
  • Page 19 *Disable Netherlands KIX Code Enable USP4 4CB/One Code/Intelligent Mail *Disable USPS 4CB/One Code/ Intelligent Mail Enable UPU FICS Postal *Disable UPU FICS Postal *Disable Mailmark Enable Mailmark...

  • Page 20: Specifications

    Specifications Item Characteristics Image Resolution 1280 x 960 pixels, rolling shutter Horizontal: 44.5˚ , Vertical: 33.5˚ Field of View (FOV) Roll: 360˚ Scan Angle Pitch: ±60˚ (approx.) Skew: ±60˚ (approx.) Light Source Aiming: Green LED Illumination: Warm white LED Operating Voltage 5.0 +/- 0.5V Physical Characteristics Colors: Black &...
