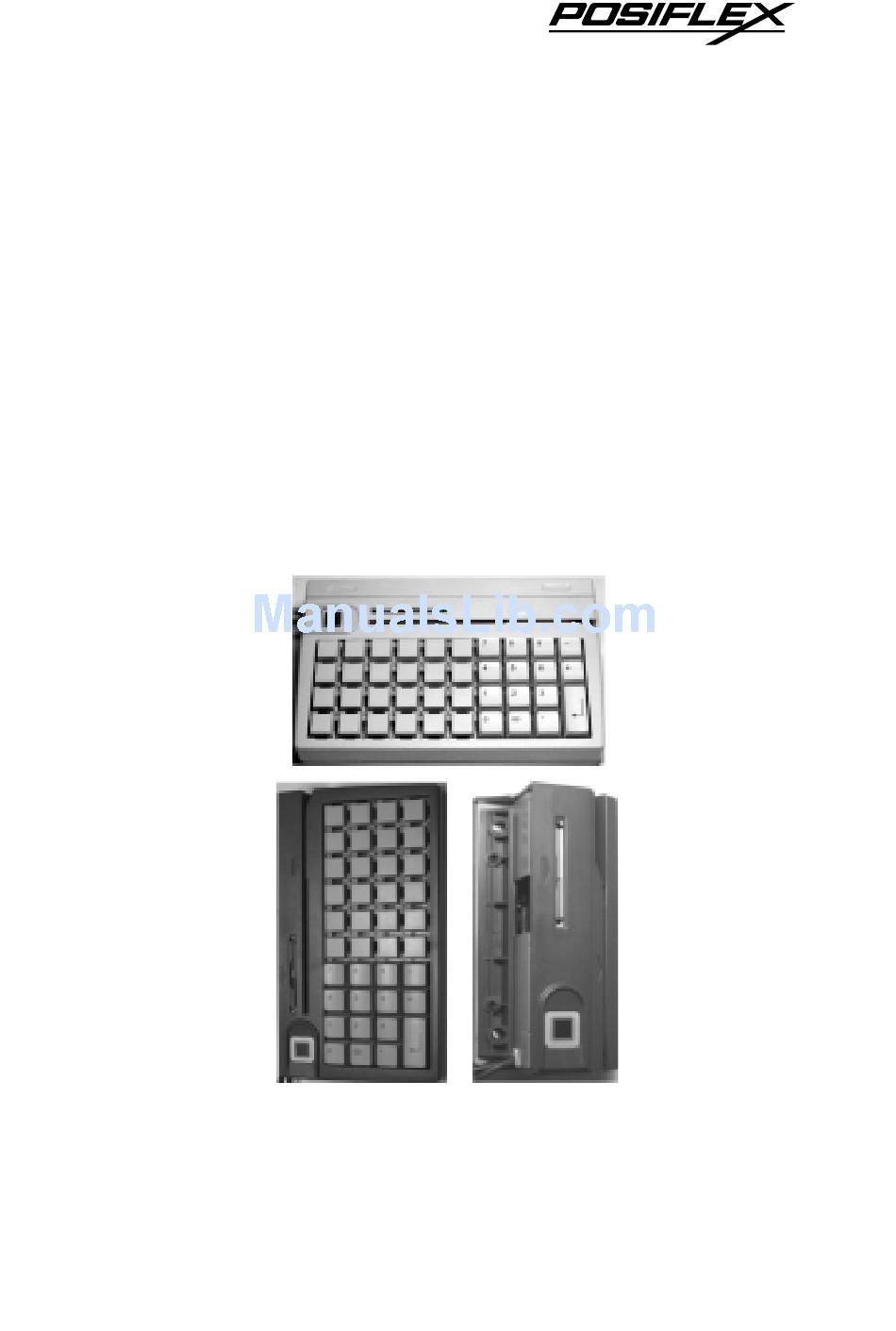

- Page 1 KB4000 / KP100 / SD100 MULTIFUNCTION SECURITY DEVICE USER’S MANUAL Rev. B MUSTEK CORP. MANUFACTURED BY: ISO-9001 ISO-14001 CERTIFIED MANUFACTURER...
- Page 2 This manual covers both operational and technical aspects of these units. The manufacturer of the KB4000 series heartily apologizes to the user for reserving the right to change or to modify this manual without notice due to the rapid and constant progress and improvement on science and technology.
-
Page 3: General Description
Items in Italic printing below means that this item must be installed prior to delivery from the factory. • Magnetic Stripe Reader (PS2 KB interface for KB4000 and KP100) ∗ ISO 7811 head reader for tracks 1 and 2 ∗... - Page 4 Note: if all devices utilizing a specific interface are omitted from the product, that interface will not be installed in the product. Ex. For SD100 with only special interface MSR installed or KP100 or KB4000 containing no finger print sensor neither smart card reader, there will be no USB interface installed; For SD100 without the special interface MSR, there will be no MSR connector;...
-
Page 5: Installation
MECHANICAL FIXATION For KB4000 the stand alone security device, there is little concern about the mechanical fixation as long as the security device (keyboard) is placed in a horizontal flat surface not subject to extreme environmental conditions. For SD100 ordered with the Jiva series or TM4000 series or the like, it is installed on the system or monitor on delivery. -
Page 6: Cable Connection
SD100 with only the special type of MSR (instead of the USB interface MSR) or the iButton receptor. The MSR connector KB4000 Series User’s Manual... - Page 7 SD100 could also be missing if the SD100 is purchased without the special type of MSR. Connect the USB connector of KB4000 to a USB hub or the USB port in a PC or a Posiflex POS system or touch monitor TM4000. Connect the USB connector of KP100 or SD100 to one of the USB ports of Jiva series or TM4000 in connector area.
- Page 8 USB keyboard for application. If a programmable keyboard is to be connected for programming, please connect it between the host and the SD100 otherwise programming may fail. KB4000 Series User’s Manual 2 - 4...
-
Page 9: Smart Card Reader
“Add New Hardware Wizard”. Follow the wizard and find in the above mentioned CD ROM under subdirectory drivers and then KB4000 or the main product KP100 or SD100 is applied to and then the subdirectory for the finger print scanner when required. -
Page 10: Magnetic Stripe Reader
Posiflex as below. For MSR to read card of AAMVA and CA DMV, the reader head must be 3 tracks ISO type and it must be on KB4000 or KP100 or it has to be the USB interface type in SD100. -
Page 11: Programmable Keypad
PROGRAMMABLE KEYPAD Keytop Replacement The keypad in KB4000 or KP100 is organized into 2 parts: a 4 by 4 numerical keypad area and a 4 by 6 programmable keypad area. However, this keypad allows some layout alterations by the system integrator. Besides the standard single key installed, there are double keys and blank keys for purchase to provide more convenient interface with the user. - Page 12 So the description on the programming utility supported by the KB4000 Series User’s Manual Single key top Double key top...
- Page 13 Each iButton receptor is delivered with 2 iButton keys attached. Each iButton key carries unique ID. Please approach your dealer for any additional iButton key required. 3 - 5 KB4000 Series User’s Manual...
