CD-3602JK
2D Image Scanner
User Manual
CD-3602JK for JK Series Kiosk

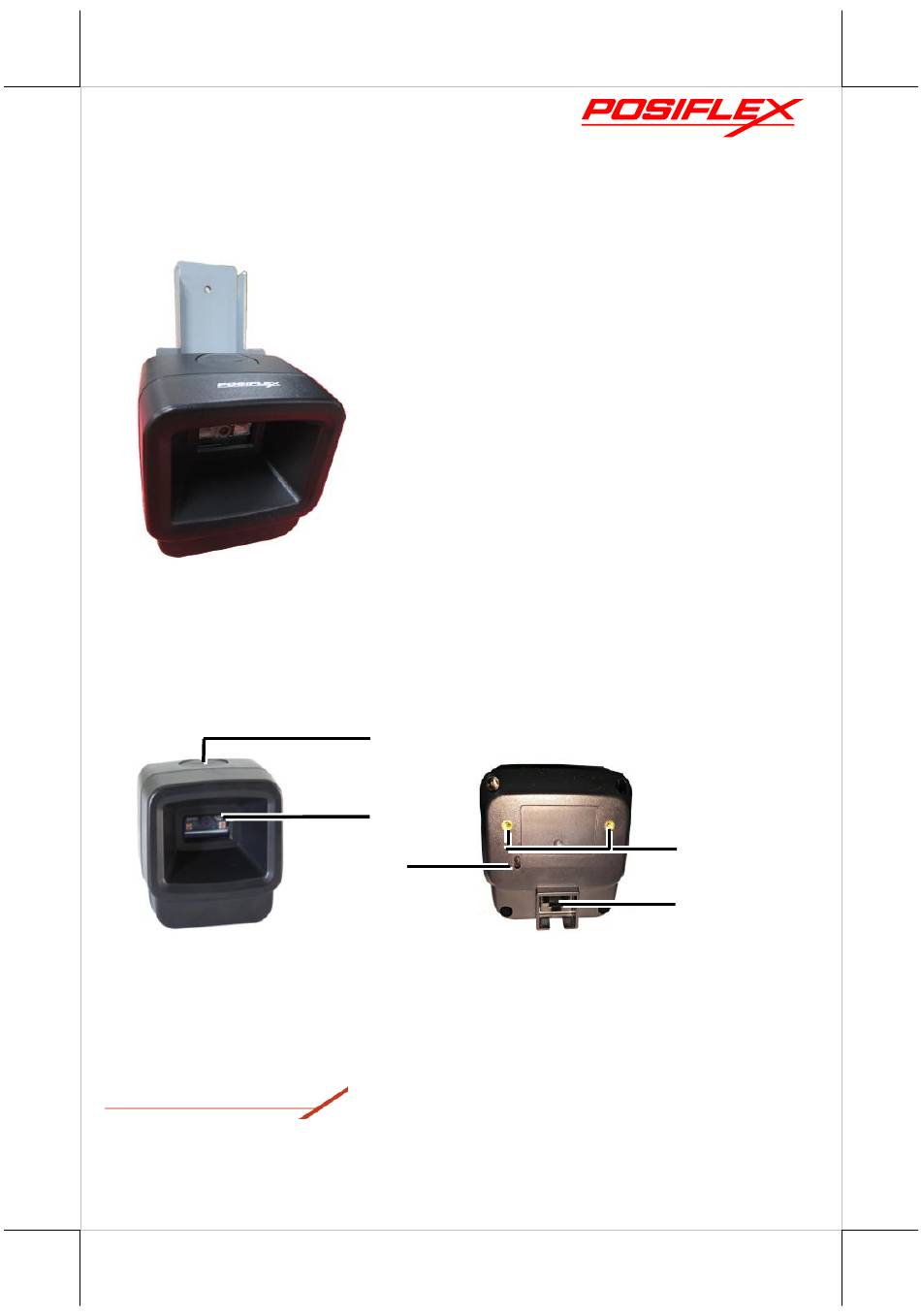

Parts of the 2D Image Scanner
CD-3602JK Scanner Module
Trigger Button
CD-3602JK Ver. B0
Package Contents
CD-3602JK 2D Image Scanner with
Mounting Bracket for JK Series Kiosk
1 #6/32-6L Screw
USB cable
User Manual
1
Scan Window
w/ Object Detector
Beeper Hole
1
Mounting Screw Hole
Interface Cable Connector

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD-3602JK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for POSIFLEX CD-3602JK

Summary of Contents for POSIFLEX CD-3602JK

  • Page 1 CD-3602JK 2D Image Scanner User Manual CD-3602JK for JK Series Kiosk Package Contents  CD-3602JK 2D Image Scanner with Mounting Bracket for JK Series Kiosk  1 #6/32-6L Screw  USB cable  User Manual Parts of the 2D Image Scanner...
  • Page 2 Installing CD-3602JK to JK Series Kiosk Connect the RJ45 connector of the USB cable to the scanner. Unlock and open the touch monitor. For JK-24xx/27xx Series: Open the touch monitor like the door refer to the below picture. For JK-32xx Series: Unlock the touch monitor, hold two sides of the touch monitor and then gently pull it out towards you slowly.
  • Page 3 Crank Rod Stopper for Touch Monitor Align the screw hole on the scanner bracket with the screw hole under the thermal printer, and then fix the scanner bracket to the kiosk with one #6/32 screw. Please refer to the picture below. For JK-24xx/27xx Series:...
  • Page 4 For JK-32xx Series: Connect the USB connector of the cable to the system computer. You can refer to the Cable Routing sticker on the system computer. Remove the dummy door inside the touch monitor, and then fix the 2D scanner bracket to the touch monitor with four hex nuts. For JK-24xx/27xx Series: For JK-32xx Series:...

  • Page 5: Scanner Maintenance

    Scanner Maintenance The scanner is designed for long-term trouble-free operation and rarely requires any maintenance. Only an occasional cleaning of the scanner window is necessary in order to remove dirt and fingerprints. Wipe the scan window with a soft lint-free cloth and a non-abrasive cleaner to avoid the scan window from being scratched and damaged.
  • Page 6 Programming Codes Below are some suggestion you need to bear in mind while scanning labels: The barcode labels shown in bold and black are default factory settings. Please cover the unwanted codes for scanning the specific barcode required for the programming to prevent confusion in code scanning. Use the user manual downloaded from our global website for advanced programming.
  • Page 7 Illumination A couple of illumination options are provided to improve the lighting conditions during every image capture:  Normal Illumination LEDs on the engine are turned on during image capture.  Always On Illumination LEDs on the engine keep on after the engine is powered on. ...

  • Page 8: Good Read Beep Volume

     Always On Aiming pattern is constantly on after the engine is powered on.  Aiming pattern is off all the time. Before setting, please scan the Enter Setup barcode on P.6. After setting, please scan the Exit Setup barcode on P.6. Normal Always On Good Read Beep Volume...
  • Page 9 Medium Enabling/Disabling of readable codes Before setting, please scan the Enter Setup barcode on P.6. After setting, please scan the Exit Setup barcode on P.6. Enable All Symbologies Disable All Symbologies Enable 1D Symbologies Disable 1D Symbologies...
  • Page 10 Enable 2D Symbologies Disable 2D Symbologies Enable Code 128 Disable Code 128 Enable EAN-8 Disable EAN-8 Enable EAN-13 Disable EAN-13...
  • Page 11 Enable UPC-E Disable UPC-E Enable UPC-A Disable UPC-A Enable Interleaved 2 of 5 Disable Interleaved 2 of 5 Enable Matrix 2 of 5 Disable Matrix 2 of 5...
  • Page 12 Enable Code 39 Disable Code 39 Enable Codabar Disable Codabar Enable Code 93 Disable Code 93 Enable GS1-128 Disable GS1-128...
  • Page 13 Enable GS1 Databar Disable GS1 Databar Enable Code 11 Disable Code 11 Enable ISBN Disable ISBN Enable ISSN Disable ISSN...
  • Page 14 Enable Industrial 25 Disable Industrial 25 Enable Standard 25 Disable Standard 25 Enable Plessey Disable Plessey Enable MSI-Plessey Disable MSI-Plessey...
  • Page 15 Enable AIM 128 Disable AIM 128 Enable PDF417 Disable PDF417 Enable QR Code Disable QR Code Enable Micro QR Disable Micro QR...

  • Page 16: Specifications

    Enable Data Matrix Disable Data Matrix Enable Rectangular Barcode Disable Rectangular Barcode Specifications Item Characteristics Performance Image Sensor 640*480 CMOS Illumination White LED Aiming Red LED (625nm) Symbologies PDF417, QR Cord, Micro QR, Data Matrix Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1...
  • Page 17 Resolution=30mil; PCS=0.8. ※ The product information and specifications are subject to change without prior notice. To get the detailed information of the CD-3602U/R, please check this model from Posiflex Global Website. Or download the advanced manual for more detailed settings.
