CD-3600/3601 (U/R)

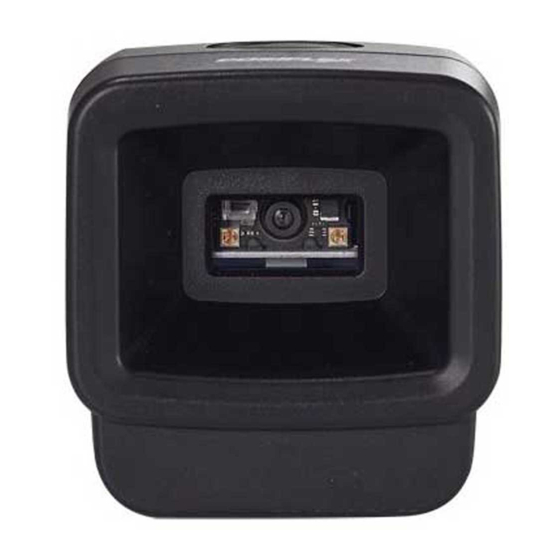

2D Image Scanner
Quick Setup Guide
Package Contents
CD-3600U/3601U
2D image scanner
USB cable
Quick setup guide
CD-3600-SK/CD-3601-SK
2D image scanner
USB cable for SK-300
Quick setup guide
Parts of the 2D Image Scanner
Trigger Button
Note:
1. The CD-3600/3601(U/R) 2D image scanner can work in Auto Trigger mode or Manual Trigger
mode. The trigger button is provided for the scanner working in the Manual Trigger mode. The
default scan mode of the scanner is Auto Trigger mode.
18090900050 Ver. D0
http://www.posiflex.com
1
Scan Window
w/ Object Detector
Beeper Hole
1
CD-3600R/3601R
2D image scanner
RS-232 cable
Quick setup guide
Mounting Screw Hole
Interface Cable Connector
Firmware Version
