CD-3602K-ST/3602K-PA
2D Image Scanner
User Manual
Package Contents
CD-3602K-ST
CD-3602K-ST 2D Image
Scanner with Mounting
Bracket for TK-21xx Series
Kiosk
USB cable

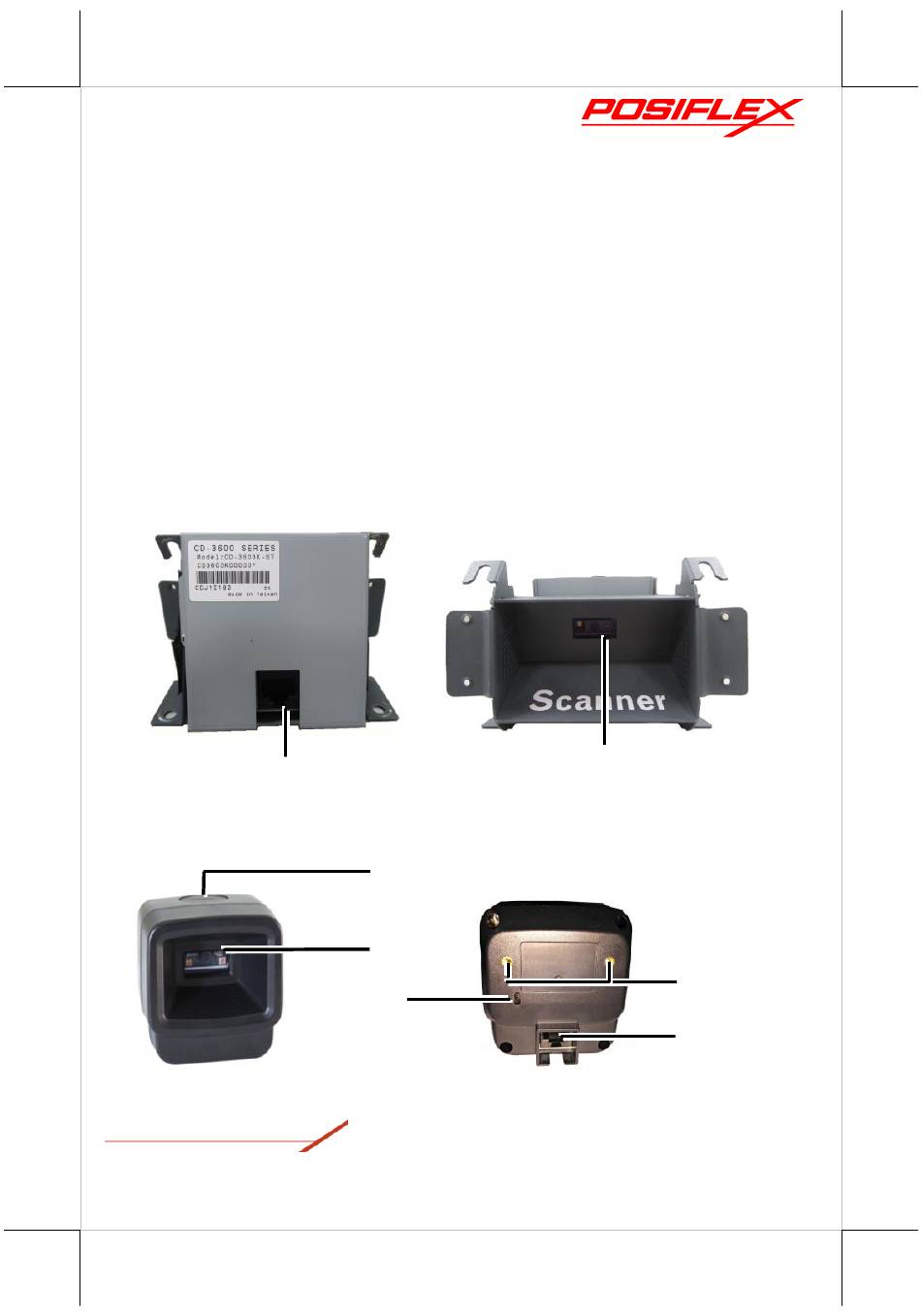

Parts of the 2D Image Scanner
CD-3602K-ST Scanner Module
Interface Cable Connector
CD-3602K-PA Scanner Module
Trigger Button
CD-3602K Ver. A0
1
Scan Window
w/ Object Detector
Beeper Hole
1
CD-3602K-PA
CD-3602K-PA 2D Image
Scanner with Mounting
Bracket for TK-320xx Series
Kiosk
USB cable
Scan Window
w/ Object Detector
Mounting Screw Hole
Interface Cable Connector
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX CD-3602K-ST
Summary of Contents for POSIFLEX CD-3602K-ST
- Page 1 CD-3602K-ST/3602K-PA 2D Image Scanner User Manual Package Contents CD-3602K-ST CD-3602K-PA CD-3602K-ST 2D Image CD-3602K-PA 2D Image Scanner with Mounting Scanner with Mounting Bracket for TK-21xx Series Bracket for TK-320xx Series Kiosk Kiosk USB cable USB cable...
- Page 2 Installing CD-3603K-ST to TK-21xx Series Kiosk Turn the key of the belly system unit to the right. Then pull the front door of the belly system unit to slide open like a drawer. (1) Push upwards the pusher on the left side of the printer in the belly system unit and then (2) open the monitor.
- Page 3 Fix the scanner in the belly system from inside with four original hex nuts. Please refer to the picture. Put the speakers on the two sides of the bracket, then fix the speakers with four screws. Please refer to the picture.
- Page 4 Connect the “USB to RJ45 cable” wot the main board. (1) Pull the sliding bar between the monitor and the belly system unit, and then (2) gently push the monitor to the belly system unit until the monitor is completely closed. 10.
- Page 5 Hold two sides of the monitor to pull out the monitor from the bottom side. Make sure the crank stopper drop down and then gently release the monitor until it is stuck by the crank stopper. Crank Stopper for Monitor Pull out Put the scanner with mounting bracket inside the kiosk, and then fix it with four hex nuts.
- Page 6 Connect the “USB to RJ45 cable” to the scanner. Route the cable like the picture on the right side. Route the cable and then connect the cable to the main board refer to the below picture.
-
Page 7: Scanner Maintenance
Pull the monitor out a bit, lift the crank stopper up with one finger, and then push the monitor back to the back chassis until the monitor is stuck. Pull the monitor out a bit, lift the crank stopper up Push the a little monitor back to... -
Page 8: Troubleshooting
Troubleshooting This section contains information about how to solve problems that you may encounter when operating the scanner. If a trouble occurs, please refer to the following diagnostic tips as a mean to solve the trouble. However, before referring to the tips, make sure that the scanner is installed well. If the problem remains, contact your dealer. -
Page 9: Firmware Version
Firmware Version Scan the below barcode label to retrieve the current firmware version. Query Firmware Version Default Settings Scanning the following barcode can restore the engine to the factory defaults. Restore All Factory Defaults Programming Barcodes Scanning the Enter Setup barcode can enable the engine to enter the setup mode. - Page 10 Illumination LEDs on the engine are turned on during image capture. Always On Illumination LEDs on the engine keep on after the engine is powered Illumination LEDs on the engine are off all the time. Before setting, please scan the Enter Setup barcode on P.9. After setting, please scan the Exit Setup barcode on P.9.
-
Page 11: Good Read Beep Volume
Aiming pattern is off all the time. Before setting, please scan the Enter Setup barcode on P.9. After setting, please scan the Exit Setup barcode on P.9. Normal Always On Good Read Beep Volume There are 20 volume levels to choose from. The bigger the value, the louder the Good Read Beep. - Page 12 Medium Enabling/Disabling of readable codes Before setting, please scan the Enter Setup barcode on P.9. After setting, please scan the Exit Setup barcode on P.9. Enable All Symbologies Disable All Symbologies Enable 1D Symbologies Disable 1D Symbologies Enable 2D Symbologies...
- Page 13 Disable 2D Symbologies Enable Code 128 Disable Code 128 Enable EAN-8 Disable EAN-8 Enable EAN-13 Disable EAN-13 Enable UPC-E...
- Page 14 Disable UPC-E Enable UPC-A Disable UPC-A Enable Interleaved 2 of 5 Disable Interleaved 2 of 5 Enable Matrix 2 of 5 Disable Matrix 2 of 5 Enable Code 39...
- Page 15 Disable Code 39 Enable Codabar Disable Codabar Enable Code 93 Disable Code 93 Enable GS1-128 Disable GS1-128 Enable GS1 Databar...
- Page 16 Disable GS1 Databar Enable Code 11 Disable Code 11 Enable ISBN Disable ISBN Enable ISSN Disable ISSN Enable Industrial 25...
- Page 17 Disable Industrial 25 Enable Standard 25 Disable Standard 25 Enable Plessey Disable Plessey Enable MSI-Plessey Disable MSI-Plessey Enable AIM 128...
- Page 18 Disable AIM 128 Enable PDF417 Disable PDF417 Enable QR Code Disable QR Code Enable Micro QR Disable Micro QR Enable Data Matrix...
-
Page 19: Specifications
Disable Data Matrix Enable Rectangular Barcode Disable Rectangular Barcode Specifications Item Characteristics Performance Image Sensor 640*480 CMOS Illumination White LED Aiming Red LED (625nm) Symbologies PDF417, QR Cord, Micro QR, Data Matrix Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11,... - Page 20 ※ The product information and specifications are subject to change without prior notice. To get the detailed information of the CD-3602U/R, please check this model from Posiflex Global Website. Or download the advanced manual for more detailed settings.
