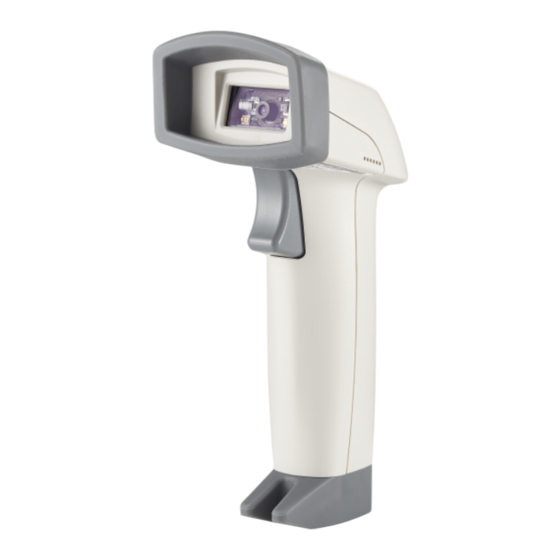

CD-3203U
2D Image Scanner
Quick Setup Guide
Package Contents
CD-3203U 2D image scanner
ST-8000 scanner holder stand (Optional)
USB cable
Quick setup guide for CD-3203U

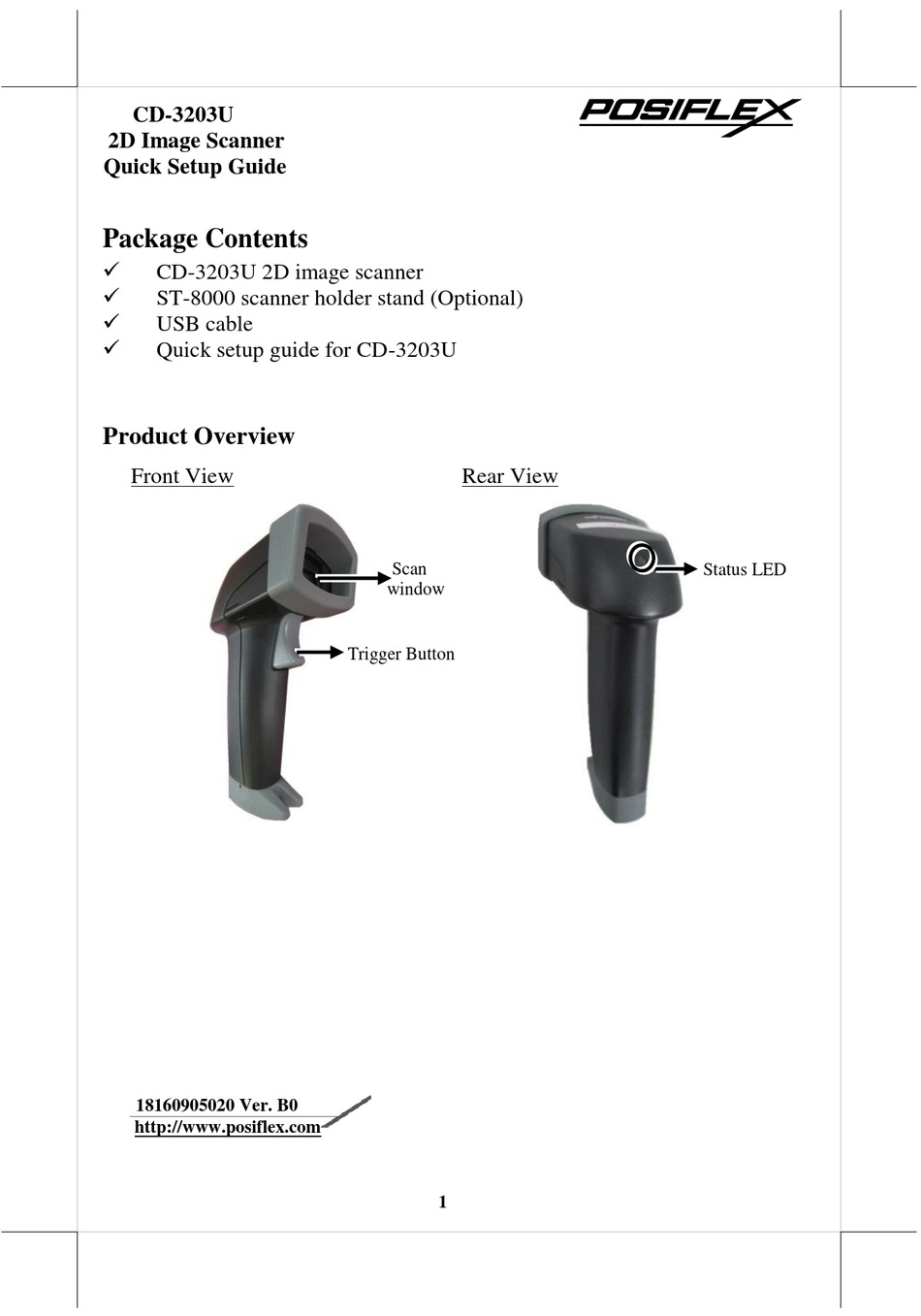

Product Overview
Front View
18160905020 Ver. B0
http://www.posiflex.com
Rear View
Scan
window
Trigger Button
1
Status LED

Advertisement

loading
Need help?

Need help?

Do you have a question about the CD-3203U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for POSIFLEX CD-3203U

Summary of Contents for POSIFLEX CD-3203U

  • Page 1 Quick Setup Guide Package Contents  CD-3203U 2D image scanner  ST-8000 scanner holder stand (Optional)  USB cable  Quick setup guide for CD-3203U Product Overview Front View Rear View Scan Status LED window Trigger Button 18160905020 Ver. B0...

  • Page 2: Scanner Maintenance

    Scanner Maintenance The scanner is designed for long-term trouble-free operation and rarely requires any maintenance. Only an occasional cleaning of the scanner window is necessary in order to remove dirt and fingerprints. Wipe the scan window with a soft lint-free cloth and a non-abrasive cleaner to avoid the scan window from being scratched and damaged.

  • Page 3: Programming Codes

    Problem Diagnostic Tips The scanner does not accept more Determine whether the required barcode types than two or three barcode labels. are enabled or not. A stray barcode is sitting somewhere in the scanner field of view. Remove all barcode labels from the scanner’s scan volume and try again.
  • Page 4 Scan one of the following barcodes to select the USB device type. NOTE: When changing USB Device Types, the engine resets and issues the standard startup beep sequences. NOTE: Before selecting USB CDC Host (Virtual COM), install the USB CDC driver located at Posiflex Global Website. USB Keyboard HID...
  • Page 5 USB CDC Host (Virtual COM) SSI over USB CDC Trigger Mode  Standard (Level): A trigger press activates decode processing. Decode processing continues until the bar code decodes, or you release the trigger.  Presentation (Blink): The engine activates decode processing when it detects a bar code in its field of view.
  • Page 6 Presentation (Blink) Host Auto Aim Auto Aim with Illumination Illumination Selecting Enable Decoding Illumination causes the engine to turn on illumination every image capture to aid decoding. Select Disable Decoding Illumination to prevent the engine from using decoding illumination. Enabling illumination usually results in superior images. The effectiveness of illumination decreases as the distance to the target increases.
  • Page 7 Disable Decoding Illumination Aiming Scan one of the following barcodes to select when to project the aiming pattern in hand-held mode:  Enable Decode Aiming Pattern: This projects the aiming pattern during barcode capture.  Disable Decode Aiming Pattern: This turns the aiming pattern off. ...
  • Page 8 Beep After Good Decode Scan one of the following bar codes to select whether or not the engine beeps after a good decode. If you select Disable Beep After Good Decode, the beeper still operates during parameter menu scanning a indicate error conditions.
  • Page 9 Enable All Code Types *Enable UPC-A Disable UPC-A *Enable UPC-E Disable UPC-E Enable UPC-E1...
  • Page 10 *Disable UPC-E1 *Enable EAN-8/JAN-8 Disable EAN-8/JAN-8 *Enable EAN-13/JAN-13 Disable EAN-13/JAN-13 Enable Bookland EAN...
  • Page 11 *Disable Bookland EAN Enable ISSN EAN *Disable ISSN EAN *Enable Code 128 Disable Code 128 *Enable GS1-128...
  • Page 12 Disable GS1-128 *Enable ISBT 128 Disable ISBT 128 *Enable Code 39 Disable Code 39 *Enable Code 93 Disable Code 93...
  • Page 13 Enable Code 11 *Disable Code 11 Enable Interleaved 2 of 5 *Disable Interleaved 2 of 5 Enable Discrete 2 of 5 *Disable Discrete 2 of 5 *Enable Codabar...
  • Page 14 Disable Codabar Enable MSI *Disable MSI Enable Chinese 2 of 5 *Disable Chinese 2 of 5 Enable Matrix 2 of 5 *Disable Matrix 2 of 5...
  • Page 15 Enable Korean 3 of 5 *Disable Korean 3 of 5 *Enable GS1 DataBar Omnidirectional Disable GS1 DataBar Omnidirecti onal Enable CC-C *Disable CC-C...
  • Page 16 Enable CC-A/B *Disable CC-A/B Enable TLC39 *Disable TLC39 *Enable PDF417 Disable PDF417 Enable MicroPDF417...
  • Page 17 *Disable MicroPDF417 *Enable Data Matrix Disable Data Matrix Enable GS1 Data Matrix *Disable GS1 Data Matrix Enable Maxicode *Disable Maxicode...
  • Page 18 *Enable QR Code Disable QR Code *Enable GS1 QR Disable GS1 QR *Enable MicroQR Disable MicroQR *Enable Aztec...
  • Page 19 Disable Aztec Enable Han Xin *Disable Han Xin Enable US Postnet *Disable US Postnet Enable US Planet *Disable US Planet...
  • Page 20 Enable UK Postal *Disable UK Postal Enable Japan Postal *Disable Japan Postal Enable Australia Post *Disable Australia Post Enable Netherlands KIX Code...
  • Page 21 *Disable Netherlands KIX Code Enable USP4 4CB/One Code/Intelligent Mail *Disable USPS 4CB/One Code/ Intelligent Mail Enable UPU FICS Postal *Disable UPU FICS Postal *Disable Mailmark...

  • Page 22: Specifications

    0~107,639 lux (direct sunlight) ※ The product information and specifications are subject to change without prior notice. To get the detailed information of the CD-3203U, please check this model from Posiflex Global Website. Or download the advanced manual for more detailed settings.
  • Page 23 <MEMO>...
  • Page 24 <MEMO>...
