CD-3603EK
2D Image Scanner
User Manual
CD-3603EK for EK Series Kiosk
Package Contents

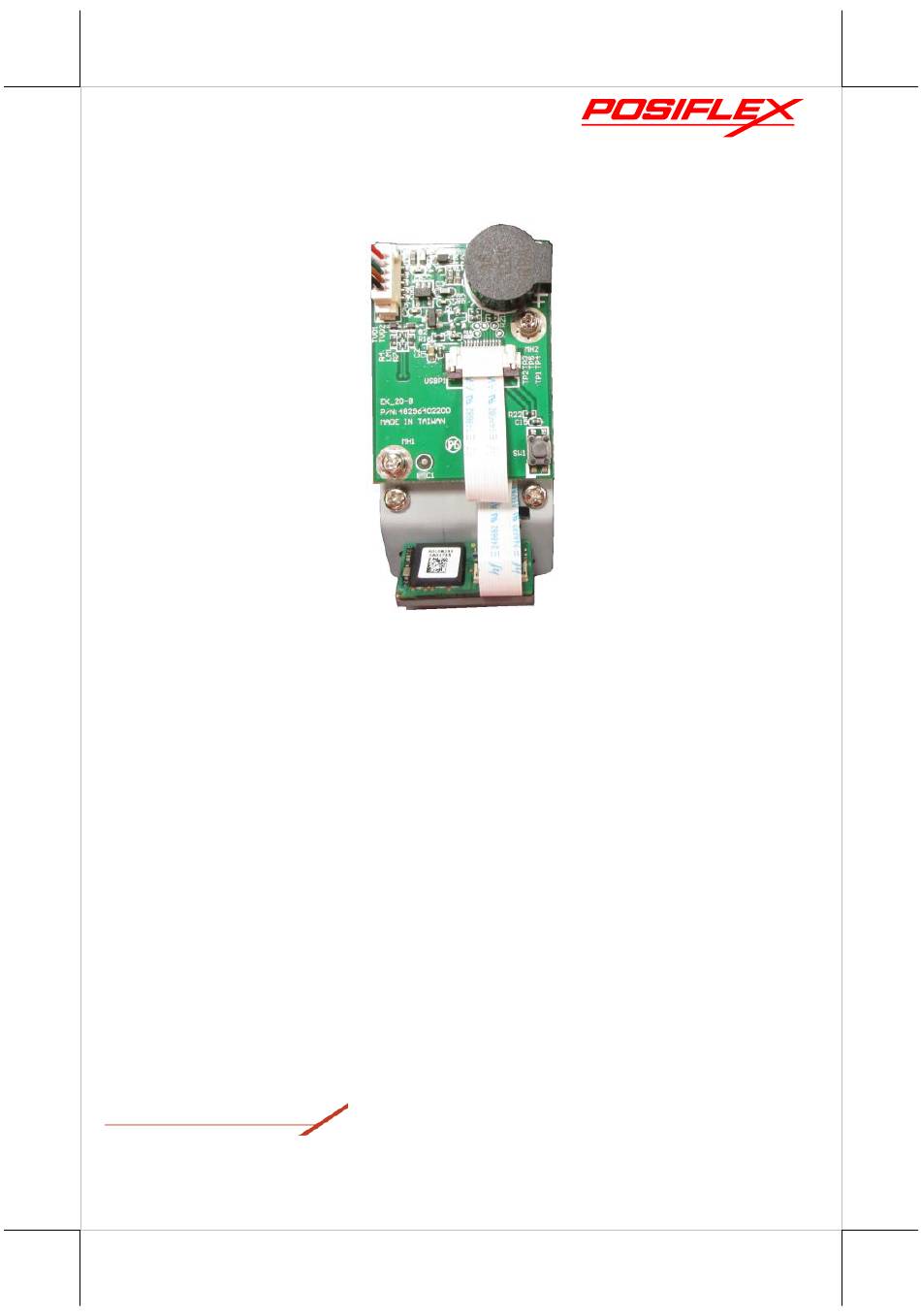

CD-3603EK 2D Image Scanner
USB Type A to 5-Pin Connector Cable
ψ
2
2.6 Screws
CD-3603EK Ver. A0
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CD-3603EK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for POSIFLEX CD-3603EK

Summary of Contents for POSIFLEX CD-3603EK

  • Page 1 CD-3603EK 2D Image Scanner User Manual CD-3603EK for EK Series Kiosk Package Contents  CD-3603EK 2D Image Scanner  USB Type A to 5-Pin Connector Cable ψ  2.6 Screws CD-3603EK Ver. A0...
  • Page 2 It is highly recommended that the scanner setup is implemented by professional technicians. Installing CD-3603EK to EK Series Kiosk Unlock and open the front door. Tear off the protective film on one side of the acrylic lens with a "light blue handle", then place the acrylic lens in the scanner holder.
  • Page 3 Please remove the two screws to take the USB hub board off from the front door. Be careful of the cables. After removing the USB hub board, fix the scanner module inside the front door with two ψ2.6 screws.
  • Page 4 Connect the 5-Pin USB connector of the scanner module with the USB cable. Fix the USB hub board back inside the front door, and then connect the other side of the USB cable to the USB hub board. Please refer to the below pictures.

  • Page 5: Scanner Maintenance

    Scanner Maintenance The scanner is designed for long-term trouble-free operation and rarely requires any maintenance. Only an occasional cleaning of the scanner window is necessary in order to remove dirt and fingerprints. Wipe the scan window with a soft lint-free cloth and a non-abrasive cleaner to avoid the scan window from being scratched and damaged.
  • Page 6 Programming Codes Below are some suggestion you need to bear in mind while scanning labels: The barcode labels shown with “ * ” are default factory settings. Please cover the unwanted codes for scanning the specific barcode required for the programming to prevent confusion in code scanning. Use the user manual downloaded from our global website for advanced programming.
  • Page 7 NOTE: When changing USB Device Types, the engine resets and issues the standard startup beep sequences. NOTE: Before selecting USB CDC Host (Virtual COM), install the USB CDC driver located at Posiflex Global Website. USB Keyboard HID USB CDC Host...
  • Page 8 Disable Decoding Illumination Aiming Scan one of the following barcodes to select when to project the aiming pattern in hand-held mode:  Enable Decode Aiming Pattern: This projects the aiming pattern during barcode capture.  Disable Decode Aiming Pattern: This turns the aiming pattern off. ...
  • Page 9 *Enable Beep After Good Decode Disable Beep After Good Decode Enabling/Disabling of readable codes Scan the Disable All Code Types bar code to disable all symbologies. Scan Enable All Code Types to enable all symbologies. Disable All Code Types Enable All Code Types *Enable UPC-A...
  • Page 10 Disable UPC-A *Enable UPC-E Disable UPC-E Enable UPC-E1 *Disable UPC-E1 *Enable EAN-8/JAN-8...
  • Page 11 Disable EAN-8/JAN-8 *Enable EAN-13/JAN-13 Disable EAN-13/JAN-13 Enable Bookland EAN *Disable Bookland EAN Enable ISSN EAN...
  • Page 12 *Disable ISSN EAN *Enable Code 128 Disable Code 128 *Enable GS1-128 Disable GS1-128 *Enable ISBT 128...
  • Page 13 Disable ISBT 128 *Enable Code 39 Disable Code 39 *Enable Code 93 Disable Code 93 Enable Code 11 *Disable Code 11...
  • Page 14 Enable Interleaved 2 of 5 *Disable Interleaved 2 of 5 Enable Discrete 2 of 5 *Disable Discrete 2 of 5 *Enable Codabar Disable Codabar Enable MSI...
  • Page 15 *Disable MSI Enable Chinese 2 of 5 *Disable Chinese 2 of 5 Enable Matrix 2 of 5 *Disable Matrix 2 of 5 Enable Korean 3 of 5 *Disable Korean 3 of 5...
  • Page 16 *Enable GS1 DataBar Omnidirectional Disable GS1 DataBar Omnidirecti onal Enable CC-C *Disable CC-C Enable CC-A/B *Disable CC-A/B...
  • Page 17 Enable TLC39 *Disable TLC39 *Enable PDF417 Disable PDF417 Enable MicroPDF417 *Disable MicroPDF417 *Enable Data Matrix...
  • Page 18 Disable Data Matrix Enable GS1 Data Matrix *Disable GS1 Data Matrix Enable Maxicode *Disable Maxicode *Enable QR Code Disable QR Code...
  • Page 19 *Enable GS1 QR Disable GS1 QR *Enable MicroQR Disable MicroQR *Enable Aztec Disable Aztec Enable Han Xin...
  • Page 20 *Disable Han Xin Enable US Postnet *Disable US Postnet Enable US Planet *Disable US Planet Enable UK Postal *Disable UK Postal...
  • Page 21 Enable Japan Postal *Disable Japan Postal Enable Australia Post *Disable Australia Post Enable Netherlands KIX Code *Disable Netherlands KIX Code Enable USP4 4CB/One Code/Intelligent Mail...
  • Page 22 *Disable USPS 4CB/One Code/ Intelligent Mail Enable UPU FICS Postal *Disable UPU FICS Postal *Disable Mailmark Enable Mailmark...

  • Page 23: Specifications
