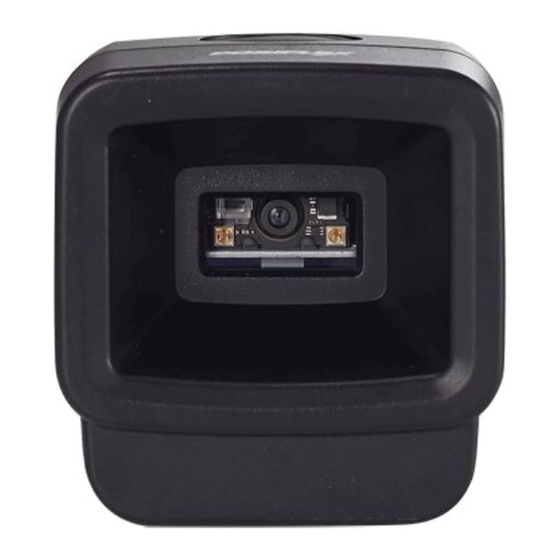

CD-3603JK
2D Image Scanner
User Manual

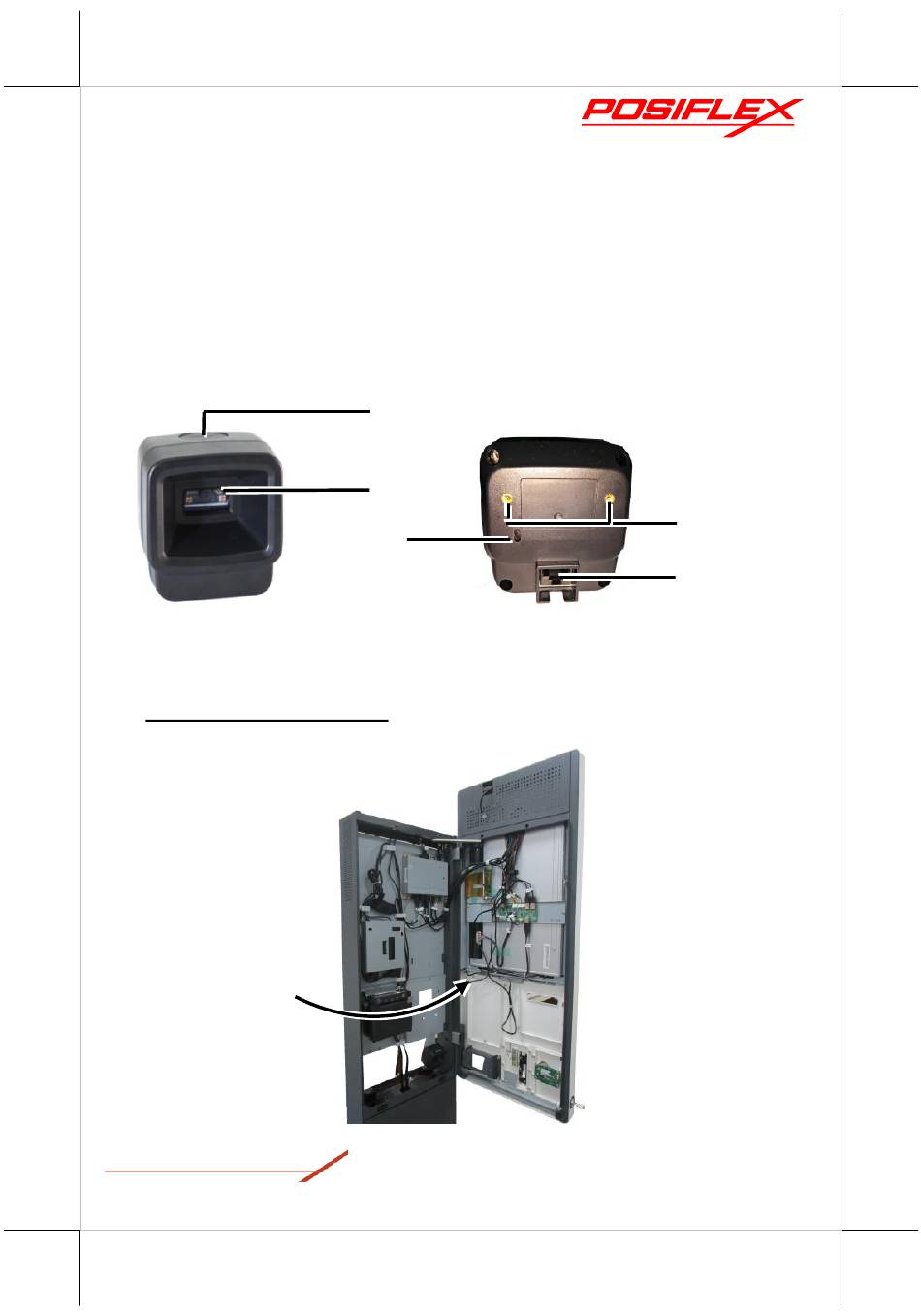

Package Contents
CD-3603JK 2D Image Scanner with Mounting Bracket
1 #6/32 Screw
USB cable
CD-3603JK Scanner Module
Trigger Button
Installing CD-3603JK to JK Series Kiosk
1.
Connect the RJ45 connector of the USB cable to the scanner.
2.
Unlock and open the touch monitor.
For JK-24xx/27xx Series:
Open the touch monitor like the door refer to the below picture.
CD-3603JK Ver. A0
1
Scan Window
w/ Object Detector
Beeper Hole
1
Mounting Screw Hole
Interface Cable Connector

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD-3603JK and is the answer not in the manual?

Questions and answers

Related Manuals for POSIFLEX CD-3603JK

Summary of Contents for POSIFLEX CD-3603JK

  • Page 1 CD-3603JK 2D Image Scanner User Manual Package Contents  CD-3603JK 2D Image Scanner with Mounting Bracket  1 #6/32 Screw  USB cable CD-3603JK Scanner Module Trigger Button Scan Window w/ Object Detector Mounting Screw Hole Beeper Hole Interface Cable Connector Installing CD-3603JK to JK Series Kiosk Connect the RJ45 connector of the USB cable to the scanner.
  • Page 2 For JK-32xx Series: Hold two sides of the touch monitor and then gently pull it out towards you slowly. Once the crank rod stopper drops down slowly begin to release the touch monitor until it stops. Crank Rod Stopper for Touch Monitor...
  • Page 3 Align the screw hole on the scanner bracket with the screw hole under the thermal printer, and then fix the scanner bracket to the kiosk with one #6/32 screw. Please refer to the picture below. For JK-24xx/27xx Series: For JK-32xx Series:...

  • Page 4: Scanner Maintenance

    Connect the USB connector of the cable to the system computer. You can refer to the Cable Routing sticker on the system computer. Remove the dummy door inside the touch monitor, and then fix the 2D scanner bracket to the touch monitor with four hex nuts. For JK-24xx/27xx Series: For JK-32xx Series: Scanner Maintenance...

  • Page 5: Programming Codes

    Problem Diagnostic Tips The scanner does not accept more Determine whether the required barcode types than two or three barcode labels. are enabled or not. A stray barcode is sitting somewhere in the scanner field of view. Remove all barcode labels from the scanner’s scan volume and try again.

  • Page 6: Default Settings

    NOTE: When changing USB Device Types, the engine resets and issues the standard startup beep sequences. NOTE: Before selecting USB CDC Host (Virtual COM), install the USB CDC driver located at Posiflex Global Website. USB Keyboard HID USB CDC Host...

  • Page 7: Trigger Mode

    Trigger Mode The scanner for JK series model is auto trigger by default. The manual trigger button is for scanner setup. It is highly recommended that the scanner setup is implemented by professional technicians. Illumination Selecting Enable Decoding Illumination causes the engine to turn on illumination every image capture to aid decoding.

  • Page 8: Beep After Good Decode

    Disable Decode Aiming Pattern Enable Decode Aiming Pattern on PDF Beep After Good Decode Scan one of the following bar codes to select whether or not the engine beeps after a good decode. If you select Disable Beep After Good Decode, the beeper still operates during parameter menu scanning a indicate error conditions.
  • Page 9 Enable All Code Types *Enable UPC-A Disable UPC-A *Enable UPC-E Disable UPC-E Enable UPC-E1 *Disable UPC-E1...
  • Page 10 *Enable EAN-8/JAN-8 Disable EAN-8/JAN-8 *Enable EAN-13/JAN-13 Disable EAN-13/JAN-13 Enable Bookland EAN *Disable Bookland EAN Enable ISSN EAN *Disable ISSN EAN...
  • Page 11 *Enable Code 128 Disable Code 128 *Enable GS1-128 Disable GS1-128 *Enable ISBT 128 Disable ISBT 128 *Enable Code 39 Disable Code 39 *Enable Code 93...
  • Page 12 Disable Code 93 Enable Code 11 *Disable Code 11 Enable Interleaved 2 of 5 *Disable Interleaved 2 of 5 Enable Discrete 2 of 5 *Disable Discrete 2 of 5 *Enable Codabar...
  • Page 13 Disable Codabar Enable MSI *Disable MSI Enable Chinese 2 of 5 *Disable Chinese 2 of 5 Enable Matrix 2 of 5 *Disable Matrix 2 of 5 Enable Korean 3 of 5...
  • Page 14 *Disable Korean 3 of 5 *Enable GS1 DataBar Omnidirectional Disable GS1 DataBar Omnidirectional Enable CC-C *Disable CC-C Enable CC-A/B *Disable CC-A/B Enable TLC39...
  • Page 15 *Disable TLC39 *Enable PDF417 Disable PDF417 Enable MicroPDF417 *Disable MicroPDF417 *Enable Data Matrix Disable Data Matrix Enable GS1 Data Matrix...
  • Page 16 *Disable GS1 Data Matrix Enable Maxicode *Disable Maxicode *Enable QR Code Disable QR Code *Enable GS1 QR Disable GS1 QR *Enable MicroQR...
  • Page 17 Disable MicroQR *Enable Aztec Disable Aztec Enable Han Xin *Disable Han Xin Enable US Postnet *Disable US Postnet Enable US Planet...
  • Page 18 *Disable US Planet Enable UK Postal *Disable UK Postal Enable Japan Postal *Disable Japan Postal Enable Australia Post *Disable Australia Post Enable Netherlands KIX Code...
  • Page 19 *Disable Netherlands KIX Code Enable USP4 4CB/One Code/Intelligent Mail *Disable USPS 4CB/One Code/ Intelligent Mail Enable UPU FICS Postal *Disable UPU FICS Postal *Disable Mailmark Enable Mailmark...

  • Page 20: Driver Download

    Driver Download Please download the relevant driver that you need from the Posiflex website (https://download.posiflex.com/en- global/Download/index/driver/Kiosk/CachetJK-2400Series?page=1). Specifications Item Characteristics Image Resolution 1280 x 960 pixels, rolling shutter Horizontal: 44.5˚ , Vertical: 33.5˚ Field of View (FOV) Roll: 360˚ Scan Angle Pitch: ±60˚...
