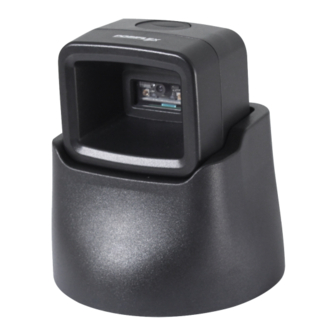

CD-3604K-ST/3604K-PA
2D Image Scanner
User Manual
Package Contents
CD-3604K-ST
CD-3604K-ST 2D Image
Scanner with Mounting
Bracket for TK-21xx Series
Kiosk
USB cable

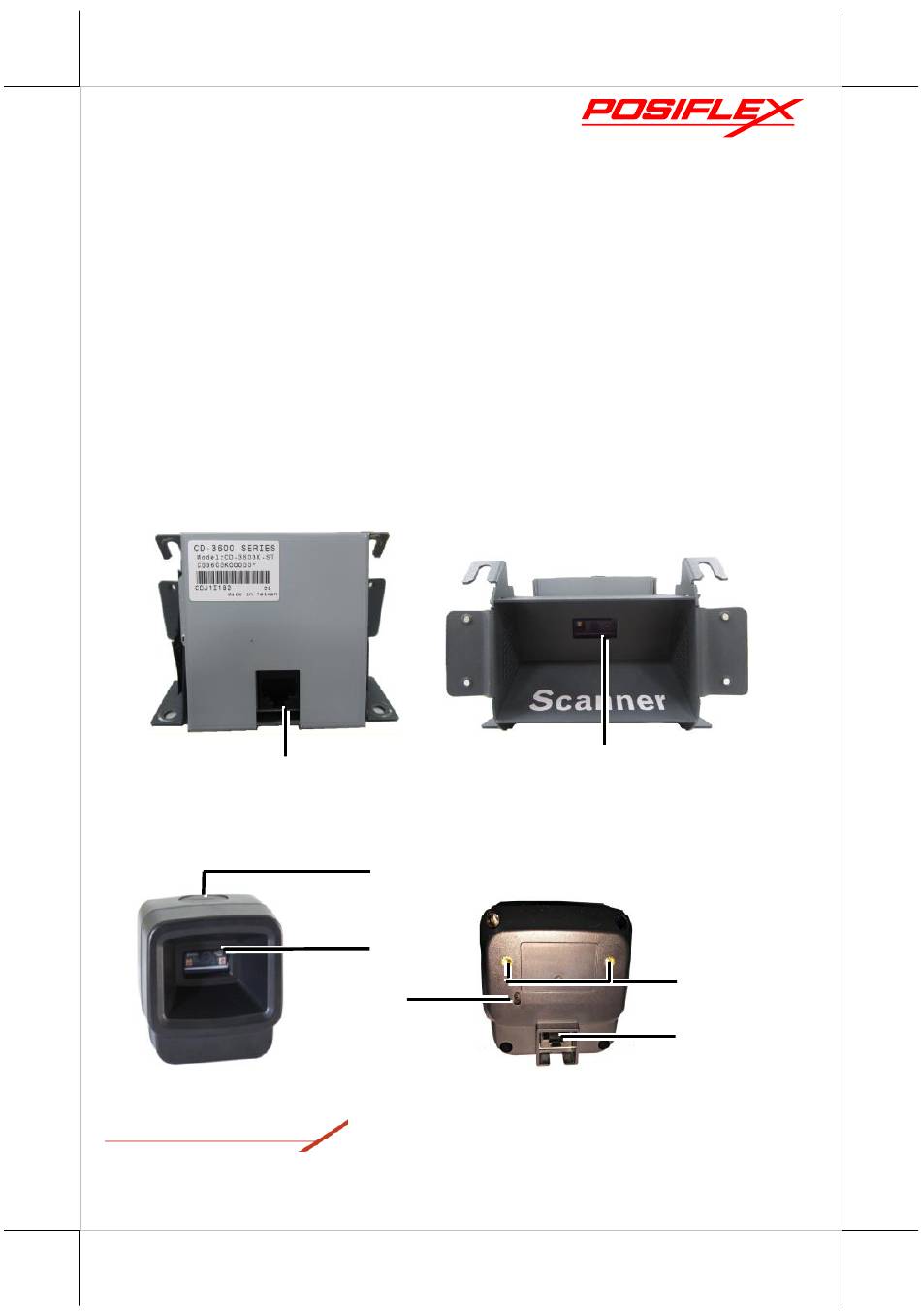

Parts of the 2D Image Scanner
CD-3604K-ST Scanner Module
Interface Cable Connector
CD-3604K-PA Scanner Module
Trigger Button
CD-3604K Ver. A0
1
Scan Window
w/ Object Detector
Beeper Hole
1
CD-3604K-PA
CD-3604K-PA 2D Image
Scanner with Mounting
Bracket for TK-320xx Series
Kiosk
USB cable
Scan Window
w/ Object Detector
Mounting Screw Hole
Interface Cable Connector
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX CD-3604K-ST
Summary of Contents for POSIFLEX CD-3604K-ST
- Page 1 CD-3604K-ST/3604K-PA 2D Image Scanner User Manual Package Contents CD-3604K-ST CD-3604K-PA CD-3604K-ST 2D Image CD-3604K-PA 2D Image Scanner with Mounting Scanner with Mounting Bracket for TK-21xx Series Bracket for TK-320xx Series Kiosk Kiosk USB cable USB cable...
- Page 2 Installing CD-3604K-ST to TK-21xx Series Kiosk Turn the key of the belly system unit to the right. Then pull the front door of the belly system unit to slide open like a drawer. (1) Push upwards the pusher on the left side of the printer in the belly system unit and then (2) open the monitor.
- Page 3 Fix the scanner in the belly system from inside with four original hex nuts. Please refer to the picture. Put the speakers on the two sides of the bracket, then fix the speakers with four screws. Please refer to the picture.
- Page 4 Connect the “USB to RJ45 cable” wot the main board. (1) Pull the sliding bar between the monitor and the belly system unit, and then (2) gently push the monitor to the belly system unit until the monitor is completely closed. 10.
- Page 5 Hold two sides of the monitor to pull out the monitor from the bottom side. Make sure the crank stopper drop down and then gently release the monitor until it is stuck by the crank stopper. Crank Stopper for Monitor Pull out Put the scanner with mounting bracket inside the kiosk, and then fix it with four hex nuts.
- Page 6 Connect the “USB to RJ45 cable” to the scanner. Route the cable like the picture on the right side. Route the cable and then connect the cable to the main board refer to the below picture.
-
Page 7: Scanner Maintenance
Pull the monitor out a bit, lift the crank stopper up with one finger, and then push the monitor back to the back chassis until the monitor is stuck. Pull the monitor out a bit, lift the crank stopper up Push the a little monitor back to... -
Page 8: Troubleshooting
Troubleshooting This section contains information about how to solve problems that you may encounter when operating the scanner. If a trouble occurs, please refer to the following diagnostic tips as a mean to solve the trouble. However, before referring to the tips, make sure that the scanner is installed well. If the problem remains, contact your dealer. -
Page 9: Programming Codes
Restore Kiosk Trigger Default (For Kiosk Model) Restore All Factory Defaults $>:S010186.< Programming Codes Below are some suggestion you need to bear in mind while scanning labels: The barcode labels shown in bold and black are default factory settings. Please cover the unwanted codes for scanning the specific barcode required for the programming to prevent confusion in code scanning. -
Page 10: Firmware Version
Firmware Version Scan the below barcode to retrieve the current firmware version. USB/RS-232 Interface There are four options for USB connection: USB HID-KBW: In keyboard mode, place the mouse cursor on the notepad, etc., and the data will be entered into the notepad after successful decoding. ... - Page 11 USB Virtual COM $>: S0F0216.<$ RS232 $>: S0F0016.<$ Illumination A couple of illumination options are provided to improve the lighting conditions during every image capture: Before setting, please scan the Enter Setup barcode on P.9. After setting, please scan the Exit Setup barcode on P.9. $>:S0C0000.<$ Reading On (default) $>:S0C0400.<$...
-
Page 12: Good Read Beep Frequency
Before setting, please scan the Enter Setup barcode on P.9. After setting, please scan the Exit Setup barcode on P.9. $>:S300000.<$ Reading On (Lit when reading, default) $>:S301000.<$ Always On $>:S302000.<$ Good Read Beep Frequency Before setting, please scan the Enter Setup barcode on P.9. After setting, please scan the Exit Setup barcode on P.9. - Page 13 Prompt Tone Duration Before setting, please scan the Enter Setup barcode on P.9. After setting, please scan the Exit Setup barcode on P.9. 40ms (Short) $>:SFF1F28.<$ 80ms (Middle) (default) $>:SFF3E28.<$ 120ms (Long) $>:SFF5D28.<$ Good Read Tone Sound Before setting, please scan the Enter Setup barcode on P.9. After setting, please scan the Exit Setup barcode on P.9.
- Page 14 Enabling/Disabling of readable codes Before setting, please scan the Enter Setup barcode on P.9. After setting, please scan the Exit Setup barcode on P.9. Enable All Barcodes $>:S010187.<$ Disable All Barcodes $>:S010087.<$ Enable All 1D Codes $>:S020287.<$ Disable All 1D Codes $>:S020087.<$ Enable All 2D Codes $>:S040487.<$...
- Page 15 Disable Code128/AIM128/EAN128/NL128 $>:S010088.<$ Enable UPC/EAN/ISSN/ISBN (default) $>:S010189.<$ Disable UPS/EAN/ISSN/ISBN $>:S010089.<$ Enable Codabar $>:S01018C.<$ Disable Codabar (default) $>:S01008C.<$ Enable Code 39 (default) $>:S01018A.<$ Disable Code 39 $>:S01008A.<$...
- Page 16 Enable Code 32 (default) $>:S0101AB.<$ Disable Code 32 $>:S0100AB.<$ Enable Code 93 (default) $>:S01018D.<$ Disable Code 93 $>:S01008D.<$ Enable Code 11 $>:S01018F.<$ Disable Code 11 (default) $>:S01008F.<$ Enable ITF-25/ITF-14/ITF-6/Deutsche12/Deutsche14 (default) $>:S01018B.<$...
- Page 17 Disable ITF-25/ITF-14/ITF-6/Deutsche12/Deutsche14 $>:S01008B.<$ Enable Industrial 25 $>:S010193.<$ Disable Industrial 25 (default) $>:S010093.<$ Enable Matrix 25 $>:S01018E.<$ Disable Matrix 25 (default) $>:S01008E.<$ Enable NEC 25/Japan Matrix 25 $>:S01019E.<$ Disable NEC 25/Japan Matrix 25 (default) $>:S01009E.<$...
- Page 18 Enable Standard 25 $>:S010192.<$ Disable Standard 25 (default) $>:S010092.<$ Enable Data Logic 25 $>:S01019F.<$ Disable Data Logic 25 (default) $>:S01009F.<$ Enable MSI-Plessey $>:S010191.<$ Disable MSI-Plessey (default) $>:S010091.<$ Enable Plessey $>:S0101A0.<$...
- Page 19 Disable Plessey (default) $>:S0100A0.<$ Enable RSS-EXP/RSS_14/GS1 Data $>:S010190.<$ Disable RSS-EXP/RSS_14/GS1 Data (default) $>:S010090.<$ Enable Telepen $>:S010194.<$ Disable Telepen (default) $>:S010094.<$ Enable Pharma Code One-Track $>:S0101A1.<$ Disable Pharma Code One-Track (default) $>:S0100A1.<$...
- Page 20 Enable Pharma Code Two-Track $>:S0101A2.<$ Disable Pharma Code Two-Track (default) $>:S0100A2.<$ Enable AZTEC $>:S01019A.<$ Disable AZTEC (default) $>:S01009A.<$ Enable CODABLOCK A $>:S01019C.<$ Disable CODABLOCK A (default) $>:S01009C.<$ Enable CODABLOCK F $>:S01019D.<$...
- Page 21 Disable CODABLOCK F (default) $>:S01009D.<$ Enable Data Matrix (default) $>:S010197.<$ Disable Data Matrix $>:S010097.<$ Enable MaxiCode $>:S010199.<$ Disable MaxiCode (default) $>:S010099.<$ Enable PDF417 (default) $>:S010195.<$ Disable PDF417 $>:S010095.<$...
- Page 22 Enable Micro PDF $>:S0101A3.<$ Disable Micro PDF (default) $>:S0100A3.<$ Enable Micro QR $>:S010198.<$ Disable Micro QR (default) $>:S010098.<$ Enable Han Xin Code $>:S01019B.<$ Disable Han Xin Code (default) $>:S01009B.<$ Enable DOTCODE $>:S0101AE.<$...
- Page 23 Disable DOTCODE (default) $>:S0100AE.<$ Allow ID Card Reading $>:S0101AC.<$ Prohibit ID Card Reading (default) $>:S0100AC.<$ Allow Passport Reading $>:S0202AC.<$ Prohibit Passport Reading $>:S0200AC.<$...
-
Page 24: Driver Download
Illumination=200lux using incandescent lamp. ※ The product information and specifications are subject to change without prior notice. To get the detailed information of the CD-3604 series, please check this model from Posiflex Global Website. Or download the advanced manual for more detailed settings.
