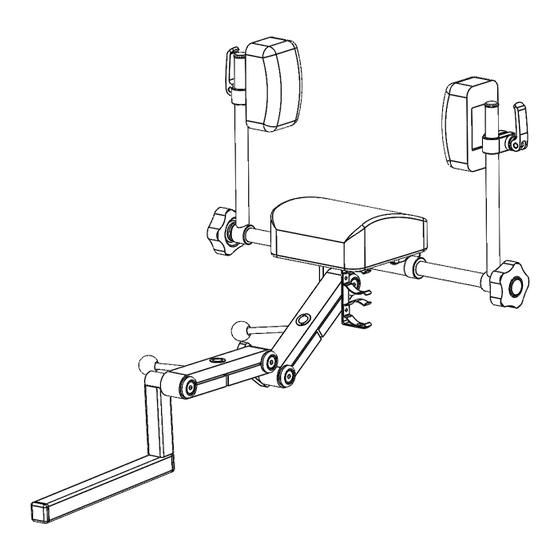

Head Support 10-238-(X)dbl
Head Support 10-238-(X)dbl including versions
Warning! This symbol indicates particularly important safety information. Follow these
instructions carefully.
Read the user manual before you start using the product! It is important that you fully
understand the contents before attempting to use the equipment.
2023-05-23
Document number: M10-238-(X)dbl-SE rev.01
1
Version
10-238-Mdbl
10-238-Fdbl
C-C:
C-C:
171,5 mm
18 mm
Ø:
Ø:
170 mm
Length:
Length:
10-238-Tdbl
106 mm
Post:
20x20mm
15 mm
Length:
180 mm
120 mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10-238 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Reison 10-238 Series

Summary of Contents for Reison 10-238 Series

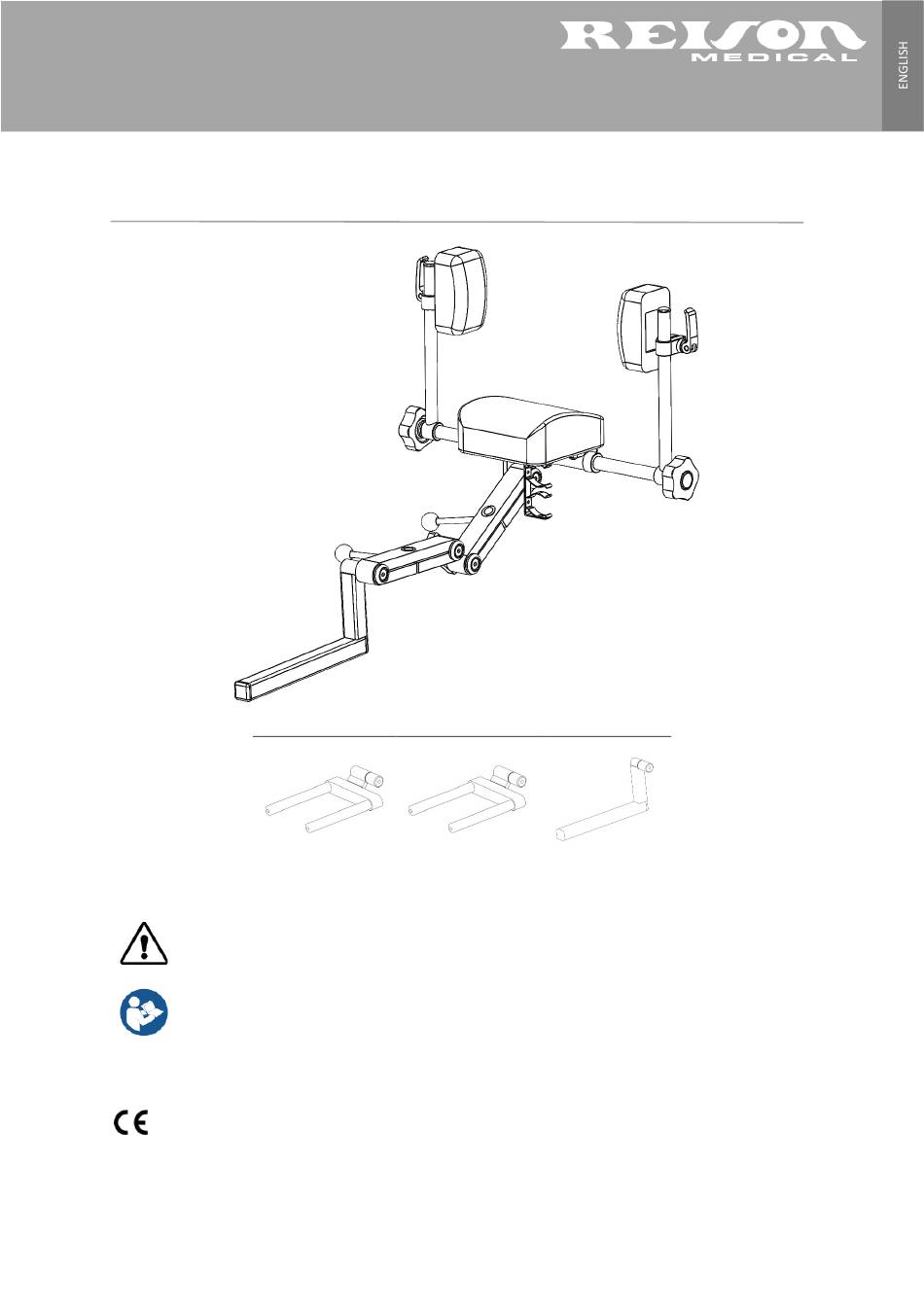

  • Page 1 Head Support 10-238-(X)dbl Head Support 10-238-(X)dbl including versions Version 10-238-Mdbl 10-238-Fdbl 10-238-Tdbl C-C: C-C: 106 mm 171,5 mm Post: 20x20mm 18 mm Ø: Ø: 15 mm Length: 180 mm 170 mm Length: Length: 120 mm Warning! This symbol indicates particularly important safety information. Follow these instructions carefully.

  • Page 2: Intended Use

    Intended Use Head support intended for support, positioning and fixation of the patient's head during, for example, ENT or scalp surgery. The product is intended for use by professional staff in surgery at healthcare facilities. Safety Regulations Maximum load: 15 kg evenly spread, corresponding to a patient weight of 200 kg, according to EN 60601-1 and EN 60601-2.
  • Page 3 User instructions Installation...

  • Page 4: Maintenance

    Maintenance Service, preventive maintenance, adjustments and repairs may only be carried out by personnel trained for the purpose. Modification of any part of the construction without the written consent of the manufacturer is strictly prohibited. Violation may be punished. Adjustment of locking mechanism Tools: 2 mm Allen key.

  • Page 5: Annual Service

    Cleaning Clean with antiseptic soap detergent with pH 6 - 8 and warm water. Ethanol can be used on metal surfaces. Dry with a soft cloth. Do not use detergents containing strong acids or bases. Control Check that there is no damage to the headrest. Check the function of the locking in the joints of the headrest.

  • Page 6: Spare Parts

    Spare Parts Version: 10-230-Mdbl 10-230-Fdbl 10-230-Tdbl Description No of Part no. Part no. Part no. pieces Fastener 11391 10934 12008 Pillow 12382 12382 12382 Side pillow 12383 12383 12383 Clamping joint smst. 12393 12393 12393 Eccentric tensioner Side bar smst. 12400 12400 12400...

  • Page 7: Technical Specification

    Technical specification Max load 15 kg evenly spread, corresponding to a patient weight of 200 kg, according to EN 60601-1 and EN 60601-2. Material head support Stainless steel Polyurethane Dimensions Version UDI-DI Weight (H x B x L) 10-238-Mdbl 07350111832865 3,7 kg 95-390 x 290 x 315-580 mm 10-238-Fdbl...
  • Page 8 Reison Medical AB Eriksbergsvägen 32A 734 92 Hallstahammar SWEDEN +46 (0)220 433 99 order@reison.se info@reison.se...

This manual is also suitable for:

10-238-mdbl10-238-fdbl10-238-tdbl
