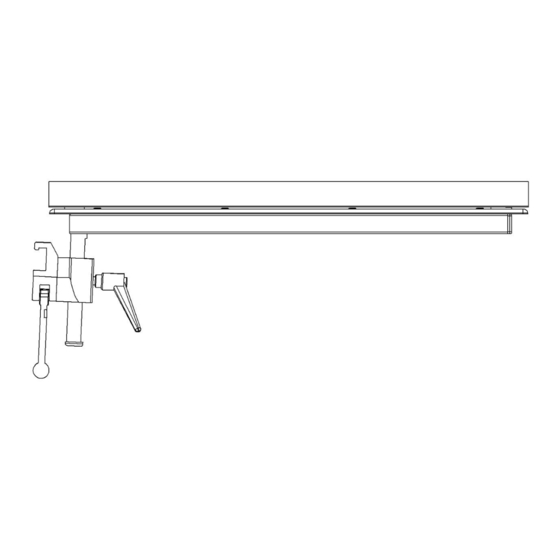

Arm surgery table 10-390-K
Arm surgery table 10-390-K including versions
Version
10-390-K
10-390-KL
10-390-K-US
10-390-UK-K
Warning! This symbol indicates important information related to safety. Follow these
instructions carefully.
Read User Manual before use! It is important to fully understand the content of the user
manual before attempting to use the equipment.
2020-10-30
Document number: M10-390-KEN rev.01
1
Description
Clamp (EU 25x10 mm rail)
Clamp (EU 25x10 mm rail), long pole
Clamp (US 1⅛ '' x ⅜ '' rail)
Clamp (UK 1¼ " x ¼ " rail)
Advertisement
Table of Contents
Related Manuals for Reison 10-390-K
Summary of Contents for Reison 10-390-K
- Page 1 Arm surgery table 10-390-K Arm surgery table 10-390-K including versions Version Description 10-390-K Clamp (EU 25x10 mm rail) 10-390-KL Clamp (EU 25x10 mm rail), long pole 10-390-K-US Clamp (US 1⅛ ’’ x ⅜ ’’ rail) 10-390-UK-K Clamp (UK 1¼ ” x ¼ ” rail) Warning! This symbol indicates important information related to safety.
- Page 2 Intended use Arm surgery table for placement of patient arm during surgical treatment of arm and hand. The product is to be used by medical professionals within a medical facility. Safety regulation Maximum load: 20 kg in even distribution, corresponding to a patient weight of 270 kg, according to EN 60601-1 and EN 60601-2.
- Page 3 User instruction Installation...
- Page 4 Maintenance Service, preventive maintenance, adjustment and repair shall be performed by authorized personnel only. Altering the construction without a written consent from the manufacturer, is strictly forbidden. Cleaning Clean with antiseptic detergent with pH 6 – 8 and warm water. Ethanol can be used on metal surfaces. Wipe dry with soft cloth.
- Page 5 Spare parts Version: 10-390-K 10-390-KL Description Pcs. Article no. Article no. Frame 10549 12087 Plate 10556 10556 Blind rivet AS 4,8x12-F Mattress 10553 10553 Plastic plug IFR 25x25x1,5 EU: 10031 Clamp body US: 10547 EU: 10031 UK: 10543 Washer 10004...
- Page 6 EN 60601-1 and EN 60601-2 Material arm surgery table Stainless steel High pressure laminate Dimension Version UDI-DI Weight (H x W x L) 10-390-K 07350111830731 6,7 kg 200 x 340 x 625 mm 10-390-KL 07350111830748 9,2 kg 350 x 340 x 625 mm 10-390-K-US...
- Page 7 Reison Medical AB Eriksbergsvägen 32A 734 92 Hallstahammar SWEDEN +46 (0)220 433 99 order@reison.se info@reison.se...
