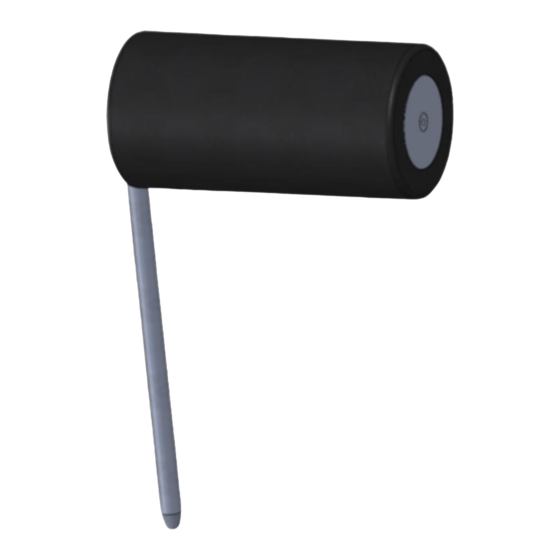

Lateral support 10-369

Warning! This symbol indicates important information related to safety. Follow these

instructions carefully.

Read User Manual before use! It is important to fully understand the content of the user

manual before attempting to use the equipment.

2020-10-30

Document number: M10-369EN rev.01

Table of Contents

Need help?

Do you have a question about the 10-369 and is the answer not in the manual?

Page 1 Lateral support 10-369 Warning! This symbol indicates important information related to safety. Follow these instructions carefully. Read User Manual before use! It is important to fully understand the content of the user manual before attempting to use the equipment. 2020-10-30...
Page 2 Intended use Lateral support intended for support and positioning of patient on the operating table during surgery. The product is to be used by medical professionals within a medical facility. Safety regulations Maximum load: 40 kg, corresponding to a patient weight of 250 kg, according to EN 60601-1 and EN 60601-2.
Page 3 User instruction Installation Positioning...
Page 4 Maintenance Service, preventive maintenance, adjustment and repair shall be performed by authorized personnel only. Altering the construction without a written consent from the manufacturer, is strictly forbidden. Cleaning Clean with antiseptic detergent with pH 6 – 8 and warm water. Ethanol can be used on metal surfaces. Wipe dry with soft cloth.
Page 5 Spare parts Description Article no. Post 10123 Pad holder 10144 Outer washer 11173 10691 Washer 10119 Washer 10,5x20x2 nylon Knob 11473 Pressure spring 1602 Gear ring 11163 Technical specification Maximum workload 40 kg, corresponding to a patient weight of 250 kg, according to EN 60601-1 and EN 60601-2 Weight 3,2 kg...
Page 6 Reison Medical AB Eriksbergsvägen 32A 734 92 Hallstahammar SWEDEN +46 (0)220 433 99 order@reison.se info@reison.se...
