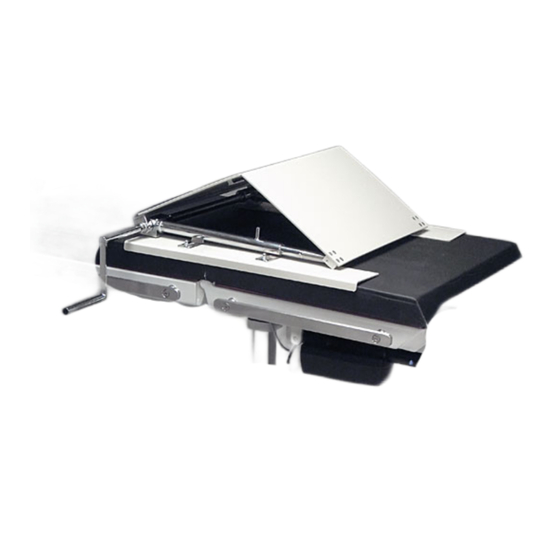

Kidney elevator 10-480
Warning! This symbol indicates important information related to safety. Follow these
instructions carefully.
Read User Manual before use! It is important to fully understand the content of the user
manual before attempting to use the equipment.
2021-04-20
Document number: M10-480EN rev.01
1
Advertisement
Table of Contents
Related Manuals for Reison 10-480
Summary of Contents for Reison 10-480
- Page 1 Kidney elevator 10-480 Warning! This symbol indicates important information related to safety. Follow these instructions carefully. Read User Manual before use! It is important to fully understand the content of the user manual before attempting to use the equipment. 2021-04-20...
- Page 2 Intended use Kidney elevator intended to use placed underneath the patient as a support with adjustable height for positioning during e.g. kidney or bile surgery. The product is to be used by medical professionals within a medical facility. Safety regulation Maxumum load: 75 kg, corresponding to a patient weight of 180 kg, according to EN 60601-1 and EN 60601-2.
- Page 3 User instruction Installation Adjust the width of the edge supports to fit the width of the operating table. Place the kidney elevator underneath a mattress on the operating table. 550 – 610 mm Position adjustment...
- Page 4 Maintenance Service, preventive maintenance, adjustment and repair shall be performed by authorized personnel only. Altering the construction without a written consent from the manufacturer, is strictly forbidden. Cleaning Clean with antiseptic detergent with pH 6 – 8 and warm water. Ethanol can be used on metal surfaces. Wipe dry with soft cloth.
- Page 5 Spare parts Description Pcs. Article no. Frame 10082 Screw right threaded 10106 Screw left threaded 10107 Bevel gear 030183-A Shaft 10110 Screw MF6S M5x10 A2 Washer DB 10x16x1 Cover 10109 Screw MC6S M3x6 A2 Hinge 10112 Rail 10090 Tubular pin FRP 4x14 Stop ring 10x20x10 A2 Tube left threaded 11143...
- Page 6 Technical specification Maximum workload 75 kg, corresponding to a patient weight of 180 kg, according to EN 60601-1 and EN 60601-2 Material Kidney elevator Chromed steel Stainless steel PP plastic Weight 7,7 kg Dimension (H x W x L) 80-190 x 550-610 x 550 mm UDI-DI 07350111832452...
- Page 7 Reison Medical AB Eriksbergsvägen 32A 734 92 Hallstahammar SWEDEN +46 (0)220 433 99 order@reison.se info@reison.se...
