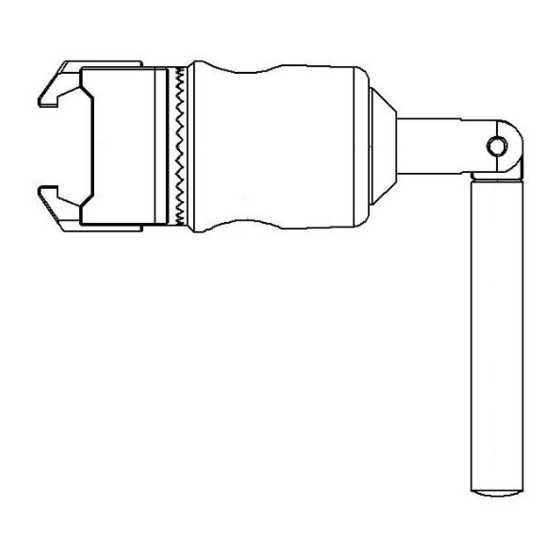

Radial clamp 10-305
Radial clamp 10-305 including versions
Version
10-305
10-305-P
10-305-UK
10-305-UK-P
10-305-US
10-305-US-P
Warning! This symbol indicates important information related to safety. Follow these
instructions carefully.
Read User Manual before use! It is important to fully understand the content of the user
manual before attempting to use the equipment.
2021-04-19
Document number: M10-305EN rev.01
1
Description
Clamp (EU 25x10 mm rail) with V-stud
Clamp (EU 25x10 mm rail) with plane stud
Clamp (UK 1¼ " x ¼ " rail) with V-stud
Clamp (UK 1¼ " x ¼ " rail) with plane stud
Clamp (US 1⅛ '' x ⅜ '' rail) with V-stud
Clamp (US 1⅛ '' x ⅜ '' rail) with plane stud
Pole type
Ø 16-20 mm
Ø 16-20 mm
Ø 16-20 mm
Ø 16-20 mm
Ø 16-20 mm
Ø 16-20 mm
Advertisement
Table of Contents
Related Manuals for Reison 10-305
Summary of Contents for Reison 10-305
- Page 1 Radial clamp 10-305 Radial clamp 10-305 including versions Version Description Pole type 10-305 Clamp (EU 25x10 mm rail) with V-stud Ø 16-20 mm 10-305-P Clamp (EU 25x10 mm rail) with plane stud Ø 16-20 mm 10-305-UK Clamp (UK 1¼ ” x ¼ ” rail) with V-stud Ø...
-
Page 2: Intended Use
Intended use Clamp intended to attach and position accessories, with a pole size Ø 16-20 mm, to the accessory rail on operating and examination tables. The product is to be used by medical professionals within a medical facility. Safety regulation Maximum load: 25 kg, according to EN 60601-1 and EN 60601-2. -
Page 3: User Instruction
User instruction Installation Usage... - Page 4 Maintenance Service, preventive maintenance, adjustment and repair shall be performed by authorized personnel only. Altering the construction without a written consent from the manufacturer, is strictly forbidden. Cleaning Clean with antiseptic detergent with pH 6 – 8 and warm water. Ethanol can be used. Wipe dry with soft cloth.
-
Page 5: Spare Parts
Spare parts Variant: 10-305 10-305-P 10-305-UK 10-305-UK-P 10-305-US 10-305-US-P Description Pcs. Article no. Article no. Article no. Article no. Article no. Article no. Clamp 11042 11042 11256 11256 11132 11132 Guide 10320 10320 10320 10320 10320 10320 Gear plate 11043... -
Page 6: Technical Specification
25 kg, according to EN 60601-1 and EN 60601-2. Weight 0,9 kg Material clamp Stainless steel Brass Dimension (H x W x L) 45 x 60 x 115 mm Version UDI-DI 10-305 07350111830076 10-305-P 07350111830083 10-305-UK 07350111830090 10-305-UK-P 07350111830106 10-305-US 07350111830113... - Page 7 Reison Medical AB Eriksbergsvägen 32A 734 92 Hallstahammar SWEDEN +46 (0)220 433 99 order@reison.se info@reison.se...
