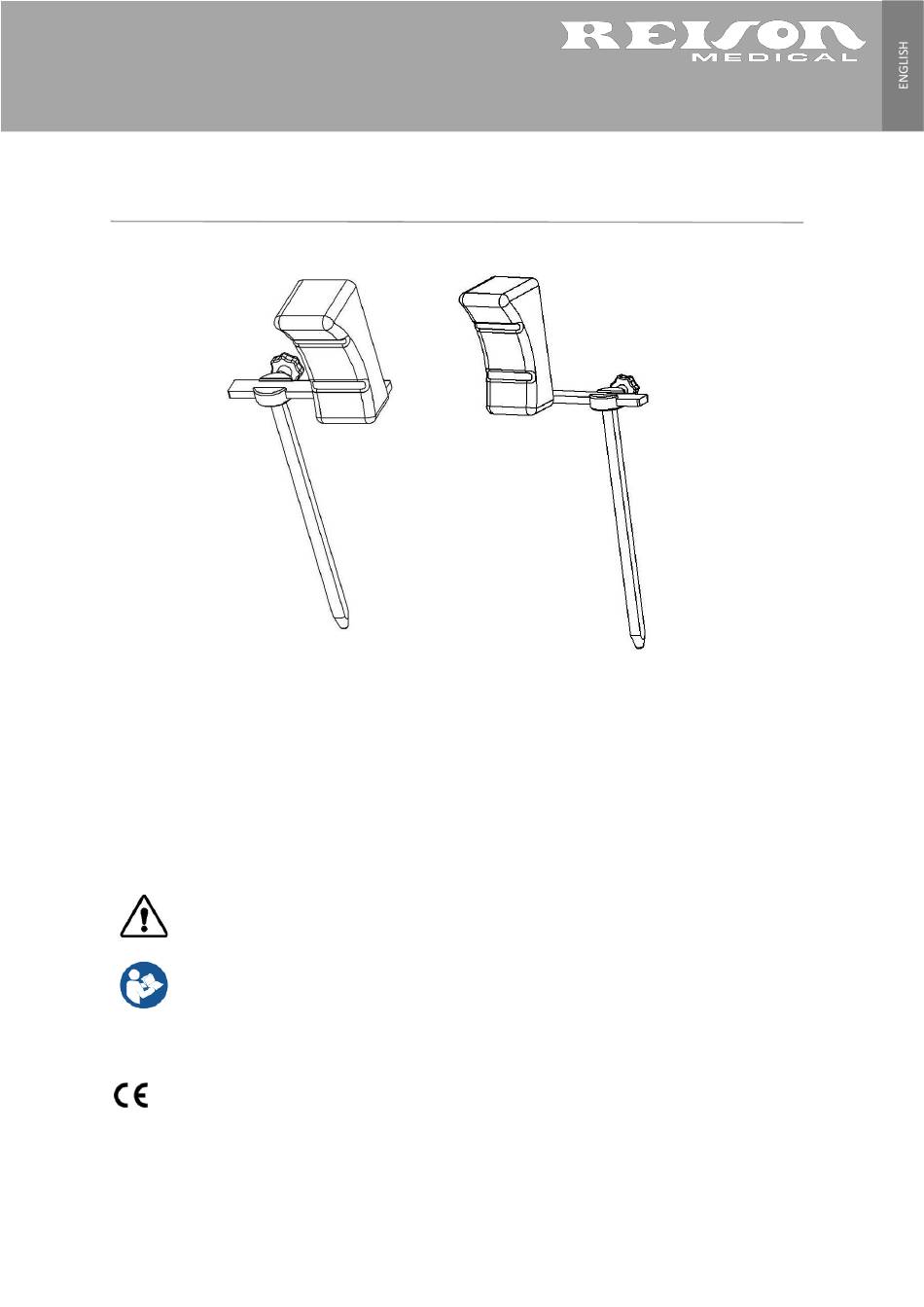

Shoulder support 10-350
Shoulder support 10-350 including versions
Version
10-350
10-350-BER
10-350-BER-PREM
Warning! This symbol indicates important information related to safety. Follow these
instructions carefully.
Read User Manual before use! It is important to fully understand the content of the user
manual before attempting to use the equipment.
2020-10-30
Document number: M10-350EN rev.01
1
Description
Including curved and flat pad
Including flat pad
Including curved pad
Advertisement
Table of Contents
Related Manuals for Reison 10-350
Summary of Contents for Reison 10-350
- Page 1 Shoulder support 10-350 Shoulder support 10-350 including versions Version Description 10-350 Including curved and flat pad 10-350-BER Including flat pad 10-350-BER-PREM Including curved pad Warning! This symbol indicates important information related to safety. Follow these instructions carefully. Read User Manual before use! It is important to fully understand the content of the user manual before attempting to use the equipment.
- Page 2 Intended use Shoulder support for support and positioning of patient at the shoulders when e.g. the table is set in the Trendelenburg position during surgery. The product is to be used by medical professionals within a medical facility. Safety regulation Maximum load: 40 kg, corresponding to a patient weight of 300 kg, according to EN 60601-1 and EN 60601-2.
- Page 3 User instruction Installation Position adjustment...
- Page 4 Maintenance Service, preventive maintenance, adjustment and repair shall be performed by authorized personnel only. Altering the construction without a written consent from the manufacturer, is strictly forbidden. Cleaning Clean with antiseptic detergent with pH 6 – 8 and warm water. Ethanol can be used on metal surfaces. Wipe dry with soft cloth.
- Page 5 Spare parts Version: 10-350 10-350-BER 10-350-BER-PREM Description Article no. Article no. Article no. Post 10876 10876 10876 Right: 10418 Right: 10418 Right: 10418 Fitting Left: 11135 Left: 11135 Left: 11135 Knob VCT.43-p M8x16 soft Spacer 05-8-12-3 Ball K20M6S K20M6S K20M6S...
- Page 6 40 kg, corresponding to a patient weight of 300 kg, according to EN 60601-1 and EN 60601-2 Weight 3,8 kg (pair) Dimension (H x W) 385 x 230 mm Lateral adjustment 90 mm Material shoulder support Stainless steel Polyurethane Version UDI-DI 10-350 07350111831400 10-350-BER 07350111831417 10-350-BER-PREM 07350111831424...
- Page 7 Reison Medical AB Eriksbergsvägen 32A 734 92 Hallstahammar SWEDEN +46 (0)220 433 99 order@reison.se info@reison.se...
