Reison 10-396-S Manual

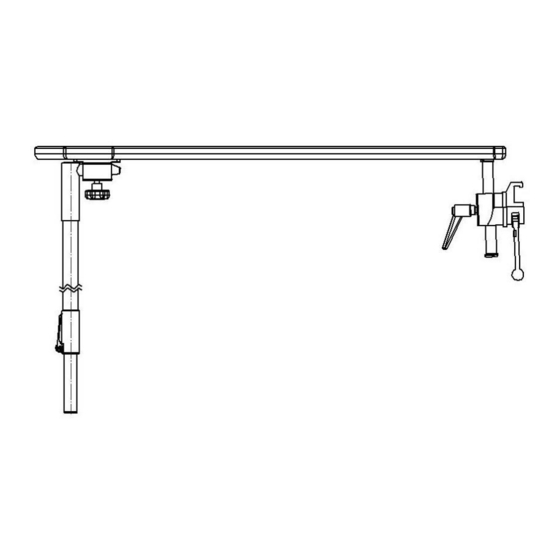

Arm surgery table
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Arm surgery table 10-396
Arm surgery table 10-396 including versions
Version
10-396
10-396-S
10-396-US
10-396-UK
Warning! This symbol indicates important information related to safety. Follow these
instructions carefully.
Read User Manual before use! It is important to fully understand the content of the user
manual before attempting to use the equipment.
2020-10-30
Document number: M10-396EN rev.01
1
Description
Clamp (EU 25x10 mm rail)
Clamp (EU 25x10 mm rail), excl. mattress
Clamp (US 1⅛ '' x ⅜ '' rail)
Clamp (UK 1¼ " x ¼ " rail)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10-396-S and is the answer not in the manual?

Questions and answers

Related Manuals for Reison 10-396-S

Summary of Contents for Reison 10-396-S

  • Page 1 Arm surgery table 10-396 including versions Version Description 10-396 Clamp (EU 25x10 mm rail) 10-396-S Clamp (EU 25x10 mm rail), excl. mattress 10-396-US Clamp (US 1⅛ ’’ x ⅜ ’’ rail) 10-396-UK Clamp (UK 1¼ ” x ¼ ” rail) Warning! This symbol indicates important information related to safety.
  • Page 2 Intended use Arm surgery table for placement of patient arm during surgical treatment of arm and hand. The product is to be used by medical professionals within a medical facility. Safety regulation Maximum load: 20 kg in even distribution, corresponding to a patient weight of 270 kg, according to EN 60601-1 and EN 60601-2.
  • Page 3 User instruction Installation...
  • Page 4 Maintenance Service, preventive maintenance, adjustment and repair shall be performed by authorized personnel only. Altering the construction without a written consent from the manufacturer, is strictly forbidden. Cleaning Clean with antiseptic detergent with pH 6 – 8 and warm water. Ethanol can be used. Wipe dry with soft cloth.
  • Page 5 Spare parts Version: 10-396 10-390-S Description Article no. Article no. Plate 10912 10912 Guide 10687 10687 Mattress 10-397 Mattress fixation 11364 11364 Washer BRB 10,5x22x2 A2 Post 10968 10968 Stay 10966 10966 EU: 10031 Clamp body US: 10547 EU: 10031 UK: 10543 Screw MC6S 6x40 FZB Washer...
  • Page 6 EN 60601-1 and EN 60601-2 Weight (incl. Support leg) 5,6 kg Dimension (H x W x L) 720-1150 x 525 x 820 mm Material arm surgery table Carbon fibre Aluminum Stainless steel Version UDI-DI 10-396 07350111830809 10-396-S 07350111830854 10-396-US 07350111830861 10-396-UK 07350111830885...
  • Page 7 Reison Medical AB Eriksbergsvägen 32A 734 92 Hallstahammar SWEDEN +46 (0)220 433 99 order@reison.se info@reison.se...

This manual is also suitable for:

10-39610-396-us10-396-uk
