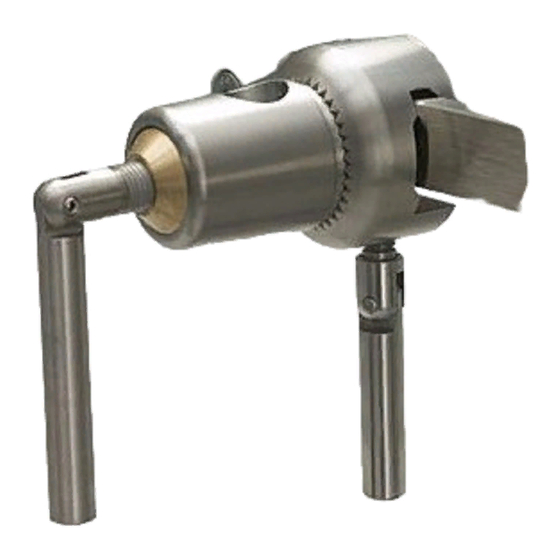

Radial clamp 10-304
Radial clamp 10-304 including versions
Version
10-304
10-304-P
Warning! This symbol indicates important information related to safety. Follow these
instructions carefully.
Read User Manual before use! It is important to fully understand the content of the user
manual before attempting to use the equipment.
2021-04-19
Dokument nummer: M10-304EN rev.01
1
Description
Radial clamp (EU 25x10 mm rail) with V-stud
Radial clamp (EU 25x10 mm rail) with Plane stud
Pole type
Ø 16-20 mm
Ø 16-20 mm
Advertisement
Table of Contents
Related Manuals for Reison MEDICAL 10-304
Summary of Contents for Reison MEDICAL 10-304
- Page 1 Radial clamp 10-304 Radial clamp 10-304 including versions Version Description Pole type 10-304 Radial clamp (EU 25x10 mm rail) with V-stud Ø 16-20 mm 10-304-P Radial clamp (EU 25x10 mm rail) with Plane stud Ø 16-20 mm Warning! This symbol indicates important information related to safety. Follow these instructions carefully.
- Page 2 Intended use Clamp intended to attach and position accessories, with a pole size Ø 16-20 mm, to the accessory rail on operating and examination tables. The product is to be used by medical professionals within a medical facility. Safety regulation Maximum load: 25 kg, according to EN 60601-1 and EN 60601-2.
- Page 3 User instruction Installation Usage...
- Page 4 Maintenance Service, preventive maintenance, adjustment and repair shall be performed by authorized personnel only. Altering the construction without a written consent from the manufacturer, is strictly forbidden. Cleaning Clean with antiseptic detergent with pH 6 – 8 and warm water. Ethanol can be used. Wipe dry with soft cloth.
- Page 5 Spare parts Version: 10-304 10-304-P Description Pcs. Article no. Article no. Gear ring 10315 10315 Gear cylinder 10316 10316 Guide 10320 10320 Lock handle 10062 10062 Lock handle 10346 10346 Screw MKFT M4x8 A2 Washer PB 5x10x5 Stud 10325 10429 Set screw MT6SS M5x6 A2 Technical specification Maximum workload...
- Page 6 Reison Medical AB Eriksbergsvägen 32A 734 92 Hallstahammar SWEDEN +46 (0)220 433 99 order@reison.se info@reison.se...
