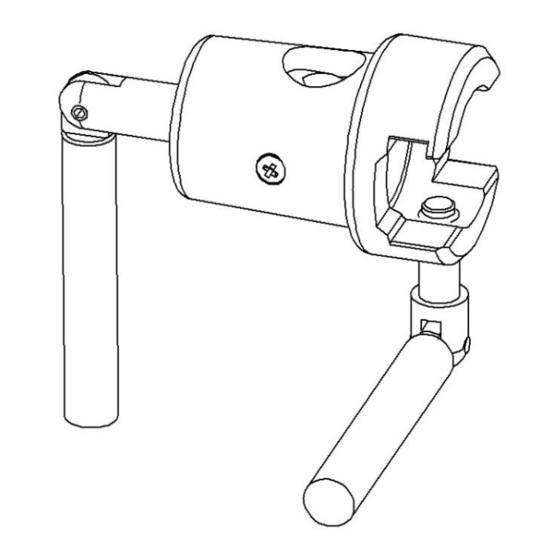

Accessory clamp 10-302
Accessory clamp 10-302 including versions
Version
10-302
10-302-P
Warning! This symbol indicates important information related to safety. Follow these
instructions carefully.
Read User Manual before use! It is important to fully understand the content of the user
manual before attempting to use the equipment.
2021-09-02
Dokument nummer: M10-302EN rev.01
1
Description
Clamp (EU 25x10 mm rail) with V-stud
Clamp (EU 25x10 mm rail) with plane stud
Pole type
Ø 16-20 mm
Ø 16-20 mm
Advertisement
Table of Contents
Related Manuals for Reison 10-302
Summary of Contents for Reison 10-302
- Page 1 Accessory clamp 10-302 Accessory clamp 10-302 including versions Version Description Pole type 10-302 Clamp (EU 25x10 mm rail) with V-stud Ø 16-20 mm 10-302-P Clamp (EU 25x10 mm rail) with plane stud Ø 16-20 mm Warning! This symbol indicates important information related to safety. Follow these instructions carefully.
- Page 2 Intended use Clamp intended to attach and position accessories, with a pole size Ø 16-20 mm, to the accessory rail on operating and examination tables. The product is to be used by medical professionals within a medical facility. Säkerhetsföreskrifter Maxbelastning: 50 kg across the table and 75 kg along the table according to EN 60601-1 and EN 60601-2.
- Page 3 User instruction Installation Usage...
- Page 4 Maintenance Service, preventive maintenance, adjustment and repair shall be performed by authorized personnel only. Altering the construction without a written consent from the manufacturer, is strictly forbidden. Cleaning Clean with antiseptic detergent with pH 6 – 8 and warm water. Ethanol can be used. Wipe dry with soft cloth.
- Page 5 Spare parts Version: 10-302 10-302-P Description Pcs. Article no. Article no. Clamp body 12143 12143 Washer PB 5x10x5 Lock handle 10062 10062 Stud 12145 12146 Set screw MT6SS M5x6 A2 Screw MKFXS M4x8 A2 Lock handle 10346 10346 Technical specification...
- Page 6 Reison Medical AB Eriksbergsvägen 32A 734 92 Hallstahammar SWEDEN +46 (0)220 433 99 order@reison.se info@reison.se...
