SSV Works MAVR-PHZ3VTD Manual page 7

MAVERICK R UNDER SEAT SUBWOOFER INSTALLATION
TOOLS NEEDED FOR INSTALLATION

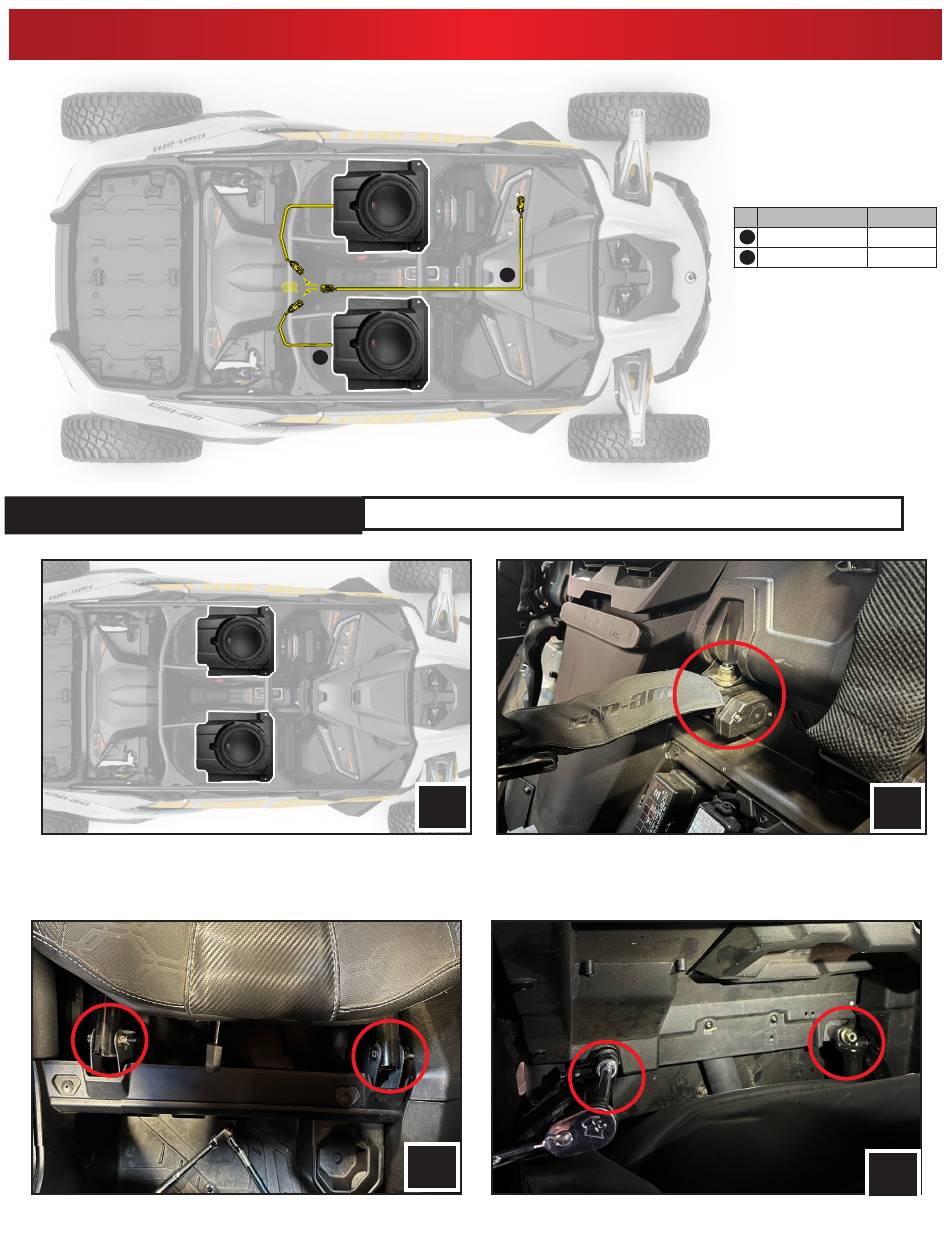

A. The MAVR-PHZ3VTD includes one subwoofer enclosure that can be
mounted under either the driver or passenger side seat.
E. Remove the (2) 13mm bolt and nut on the front seat rail.
OR
2
- 10mm, 13mm & 18mm Socket Wrench
A
E
1
B. Start the install by removing the driver seat. Use an 18mm socket
wrench to remove the right shoulder seat belt retractor mechanism.
F. Slide the seat forward and remove the rear 18mm seat rail nuts.
Description Part #
1
Sub Extension, 8 ft. B-H2702
2
Subwoofer, 10" (x1) MAVR-US10
B
F
