RGB LED CONTROLLER COMMAND CENTER INSTALLATION
TOOLS NEEDED FOR INSTALLATION
- Wire Cutter

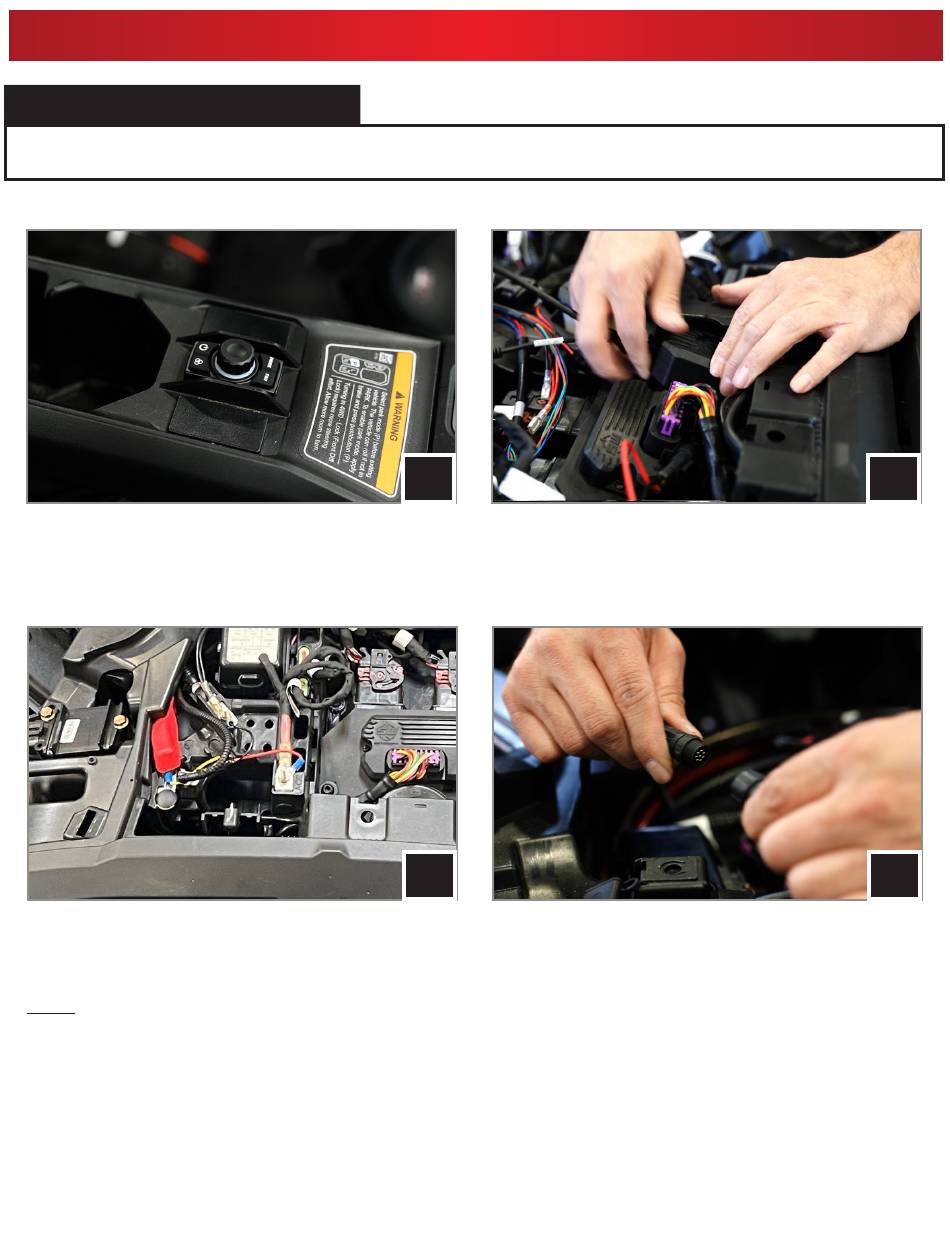

A. Install the LIT-CC RGB LED Controller Rocker Switch in an
unoccupied rocker switch opening.
C. Tap power and ground of the LIT-CC to the factory bus bar.
NOTE:
Refer to the 230-LIT-CC User Guide for detailed operation instructions.
GND GND
ACC ACC
A
B. Mount the LIT-CC RGB LED Controller Command Center in the
dash away from moving parts and secure with zip ties. Cut excess
zip ties for a clean install.
C
D. Plug in the LIT-CC controller to the LIT-CC module.
B
D
