ICON PRO-FORM 410 TRAINER User Manual page 9

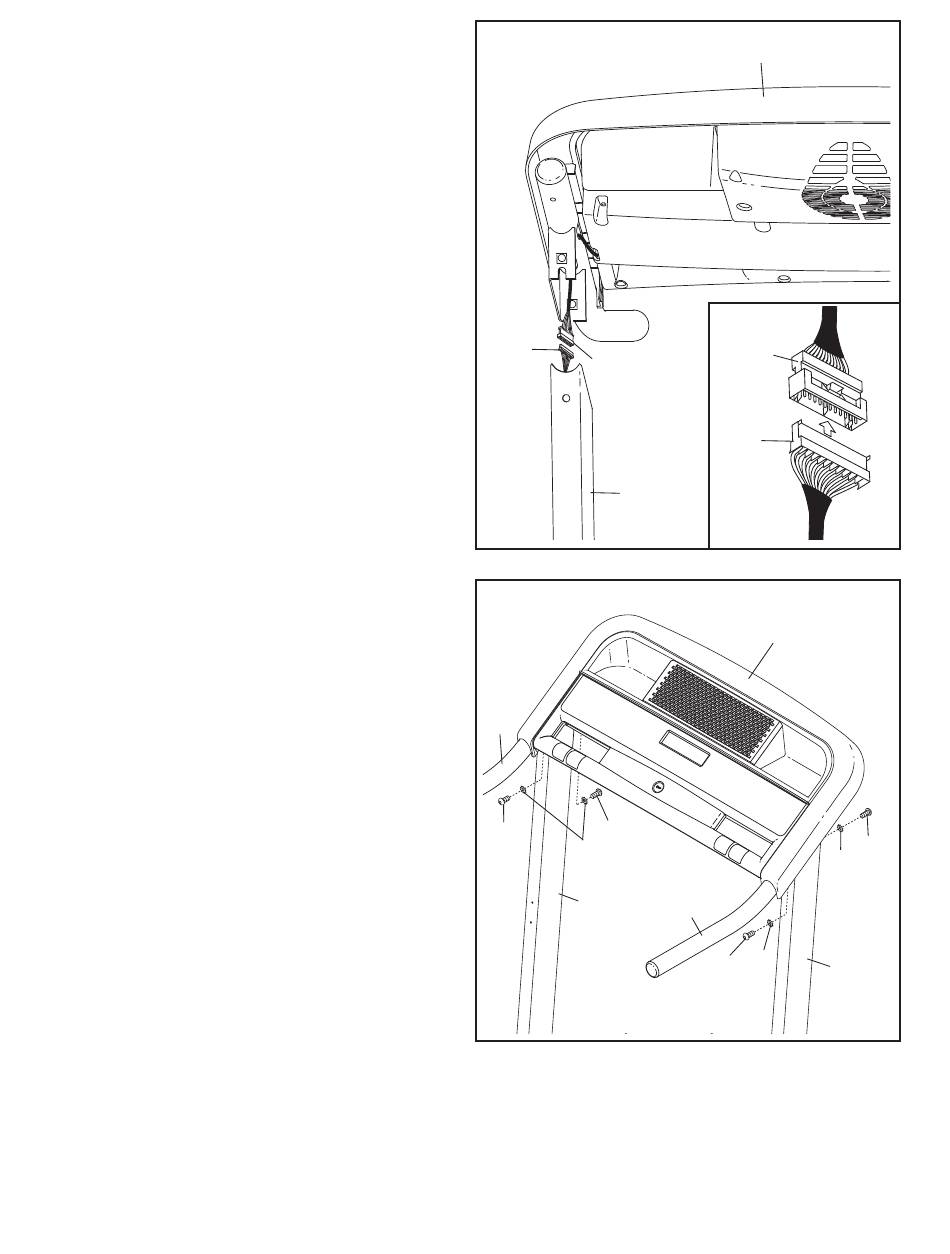

8. Have a second person hold the console assem-
bly near the Right Upright (78). Remove the wire
tie from the Upright Wire (77).
Connect the Upright Wire (77) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF THE CONNECTORS ARE NOT CON-
NECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON. Then, insert the connectors into
the Right Upright (78).
Set the console assembly on the Right Upright
(78) and the Left Upright (not shown). Make sure
that no wires are pinched.
9. Finger tighten two M8 x 25mm Bolts (6) with two
M8 Star Washers (10) into the Left Upright (73)
and the Left Handrail (89).
Next, finger tighten two M8 x 25mm Bolts (6)
with two M8 Star Washers (10) into the Right
Upright (78) and the Right Handrail (90). Then,
tighten all four Bolts.
See steps 4 and 6. Tighten the M10 x 96mm
Bolts (5).
8
77
Console Wire
78
9
89
6
6
10
73
9
Console Assembly
Console
Wire
77
Console
Assembly
10
90
10
6
78
6
