ICON PRO-FORM 410 TRAINER User Manual page 7

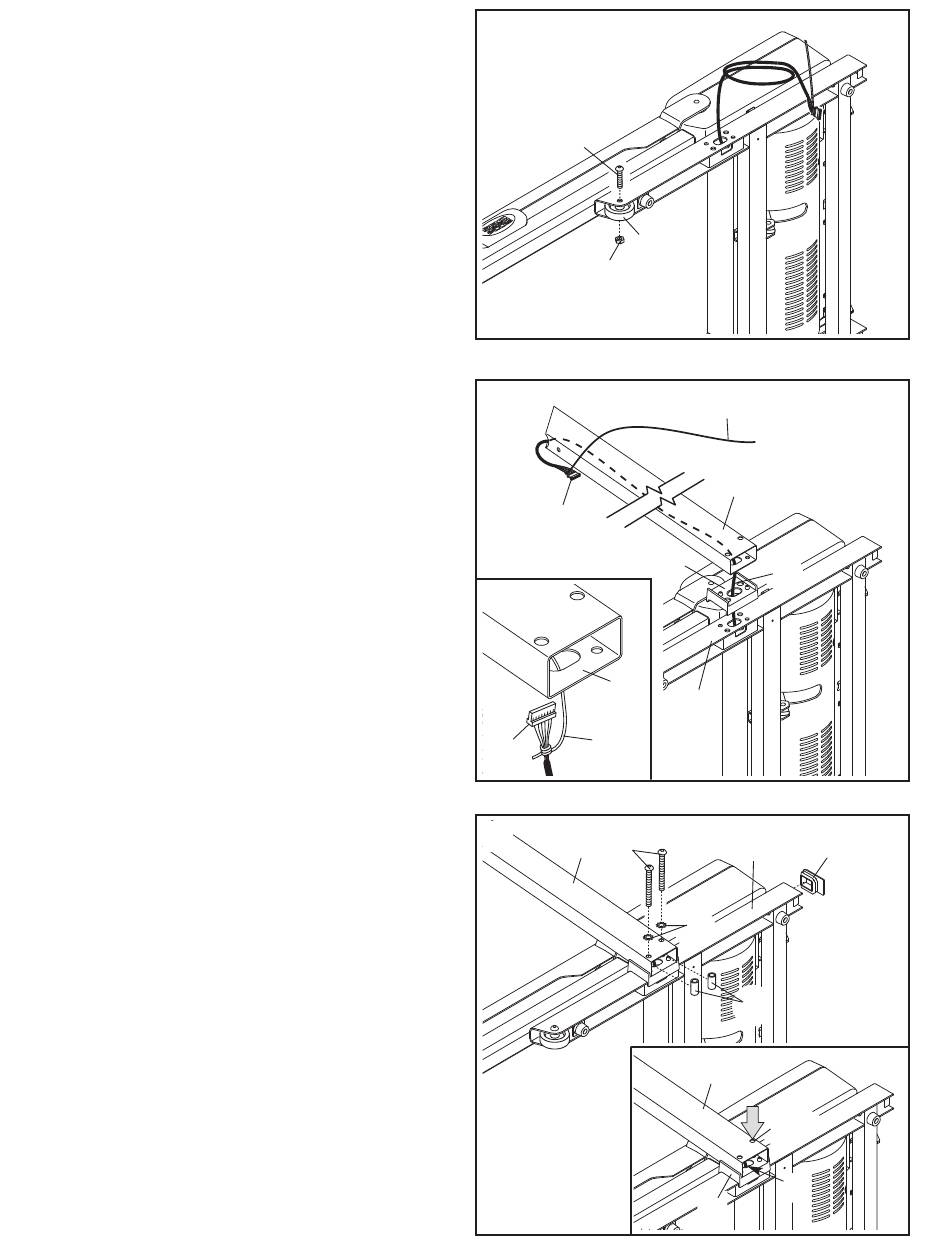

2. Attach a Wheel (86) with an M10 x 50mm Bolt
(27) and an M10 Nut (33). Do not overtighten
the Nut; the Wheel must turn freely.
3. Identify the Right Upright (78) and the Right
Upright Spacer (80), which are marked with
stickers.
Insert the Upright Wire (77) through the Right
Upright Spacer (80) as shown. Then, set the
Right Upright Spacer on the Base (85).
See the inset drawing. While a second person
holds the Right Upright (78) near the Base (not
shown), tie the wire tie in the Right Upright se-
curely around the end of the Upright Wire (77).
Then, pull the other end of the wire tie until the
Upright Wire is routed completely through the
Right Upright.
4. See the inset drawing. Set the Right Upright
(78) on the Right Upright Spacer (80); be care-
ful not to pinch the Upright Wire (77). Next,
look down into the indicated hole. If you can see
the Upright Wire inside the hole, carefully insert
a Phillips screwdriver into the hole and move the
Upright Wire out of the way.
Next, hold a Bolt Spacer (79) inside the lower
end of the Right Upright (78). Insert an M10 x
96mm Bolt (5) with an M10 Star Washer (8) into
the Right Upright and the Bolt Spacer. Repeat
this step with another Bolt Spacer (79), M10 x
96mm Bolt (5), and M10 Star Washer (8). Then,
finger tighten the Bolts; do not fully tighten the
Bolts yet.
Press a Base Endcap (82) into the Base (85).
2
27
86
33
3
77
78
Wire
77
Tie
4
5
78
7
Wire Tie
78
80
77
85
82
85
8
79
78
Hole
77
80
