Step 2: Turn off the computer's network an then configure TAO 1mini and computer to the same
LAN. Please set the IP address of the computer network port to 192.168.5.*.

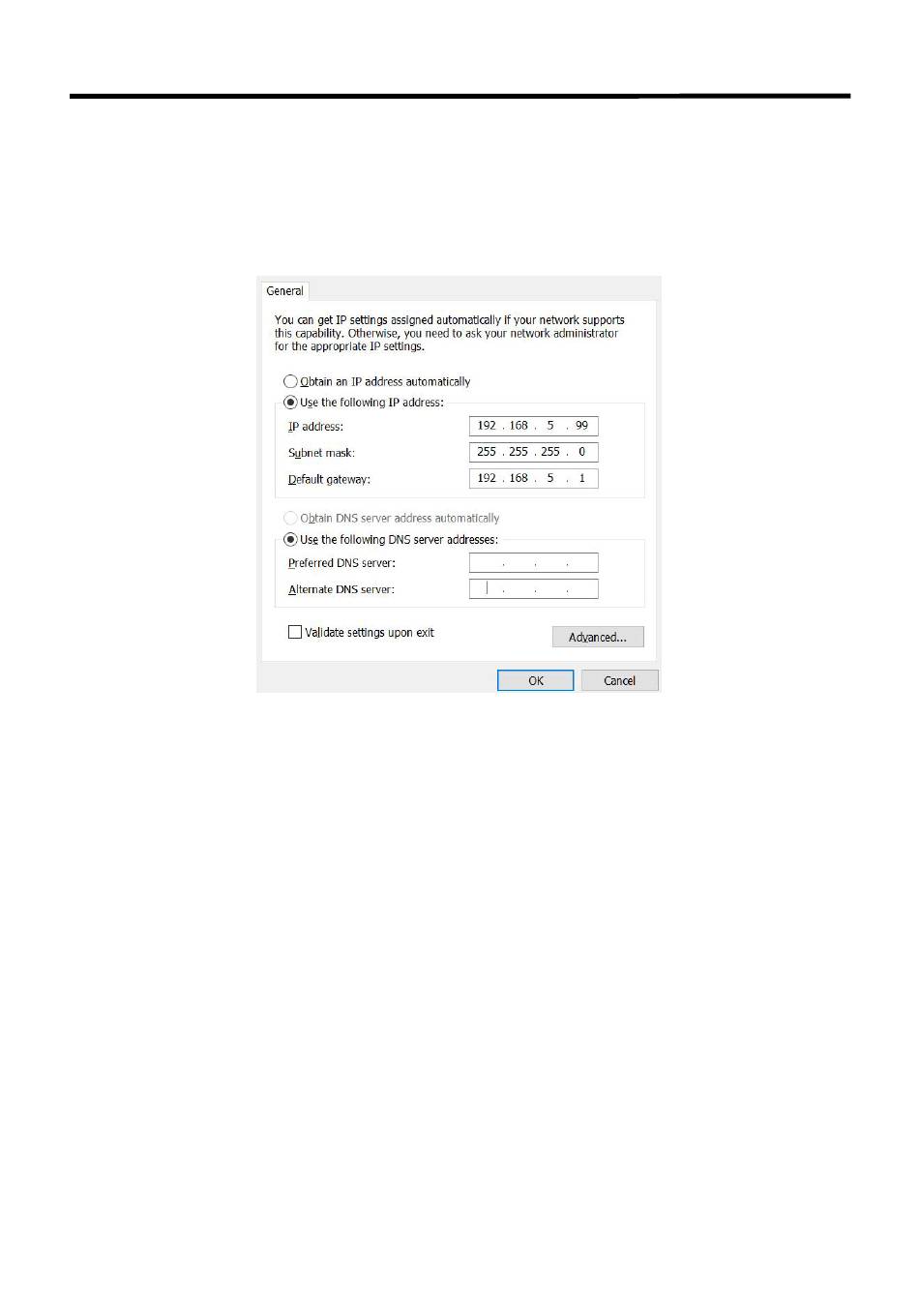

Step 3: Please click the buttons on the computer as follows: "Network and Internet Settings" >
"Network and Sharing Center" > "Ethernet" > "Internet Protocol Version 4" > "Use the following IP
address", then manually enter the IP address with 192.168.5.* and then click OK to confirm.

2.5 Connect Input Audio Signal and External Monitor

TAO 1mini features one 3.5mm standard audio jack which can be used for connecting audio signal.
You can also use external speakers or headphones to monitor the main output audio signal in real
time.
