Layout & Connections; Layout; Connections - Exsys EX-1580SHMVS Manual

EX-1580SHMVS
3. Layout, Connections & Jumpers

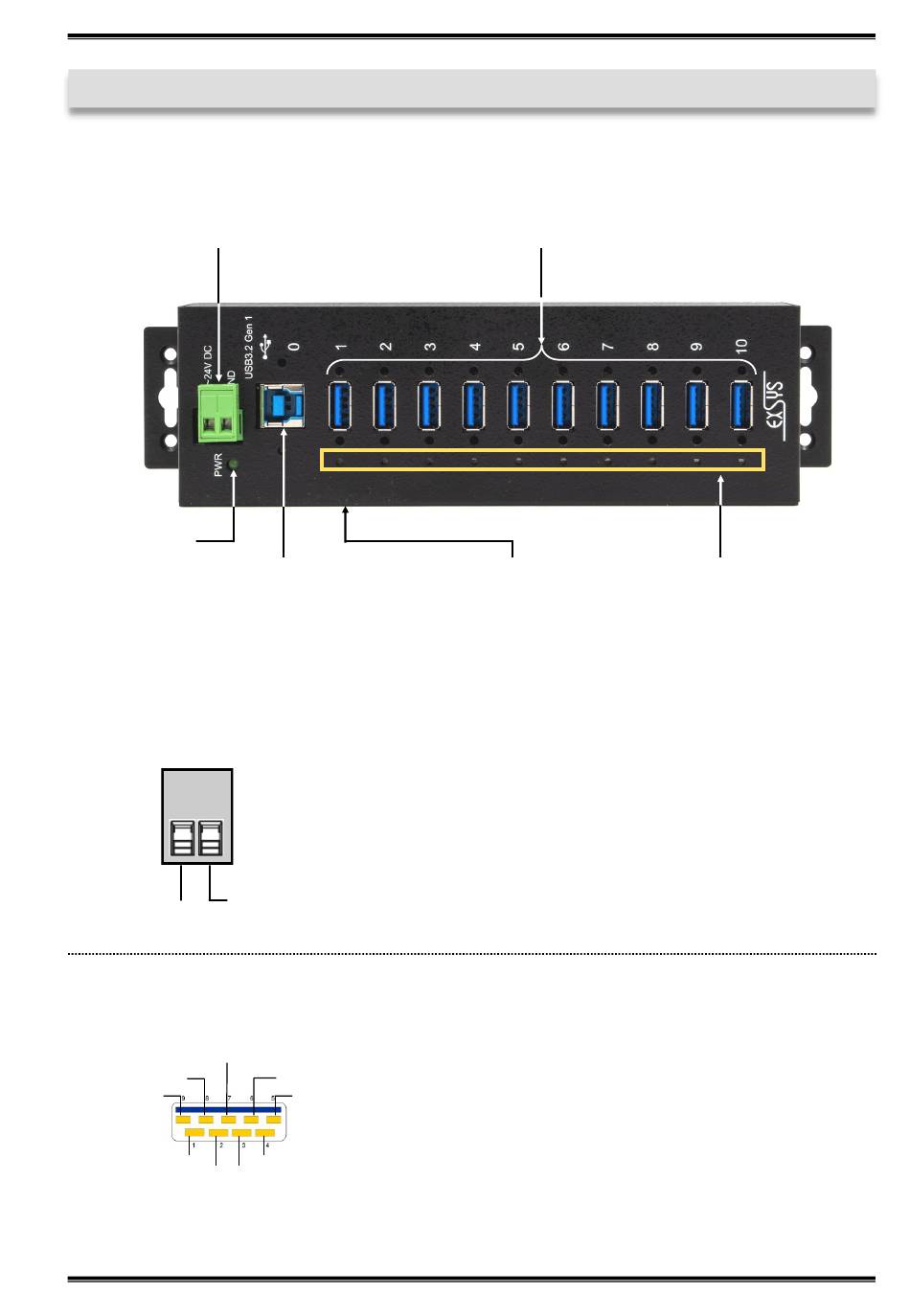

3.1 Layout

7-24V T-Block for optional
external Power Supply
Power LED
1x USB 3.2 Gen 1
Upstream B-Port

3.2 Connections

+7V - 24V T-Block:
GND (Ground)
+7V - 24V
USB 3.2 Gen 1 A-Port:
GND_DRAIN
StdB_SSTX +
StdB_SSTX -
VCC
D- D+
© Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved
StdB_SSTX
StdB_SSTX -
GND
10x USB 3.2 Gen 1
Downstream A-Port
Reset Button
ATTENTION!
Never connect power to GND, it will destroy
your Hardware!
ATTENTION!
Never plug in with force or in wrong direction.
11
English
Status LED for
each Port
