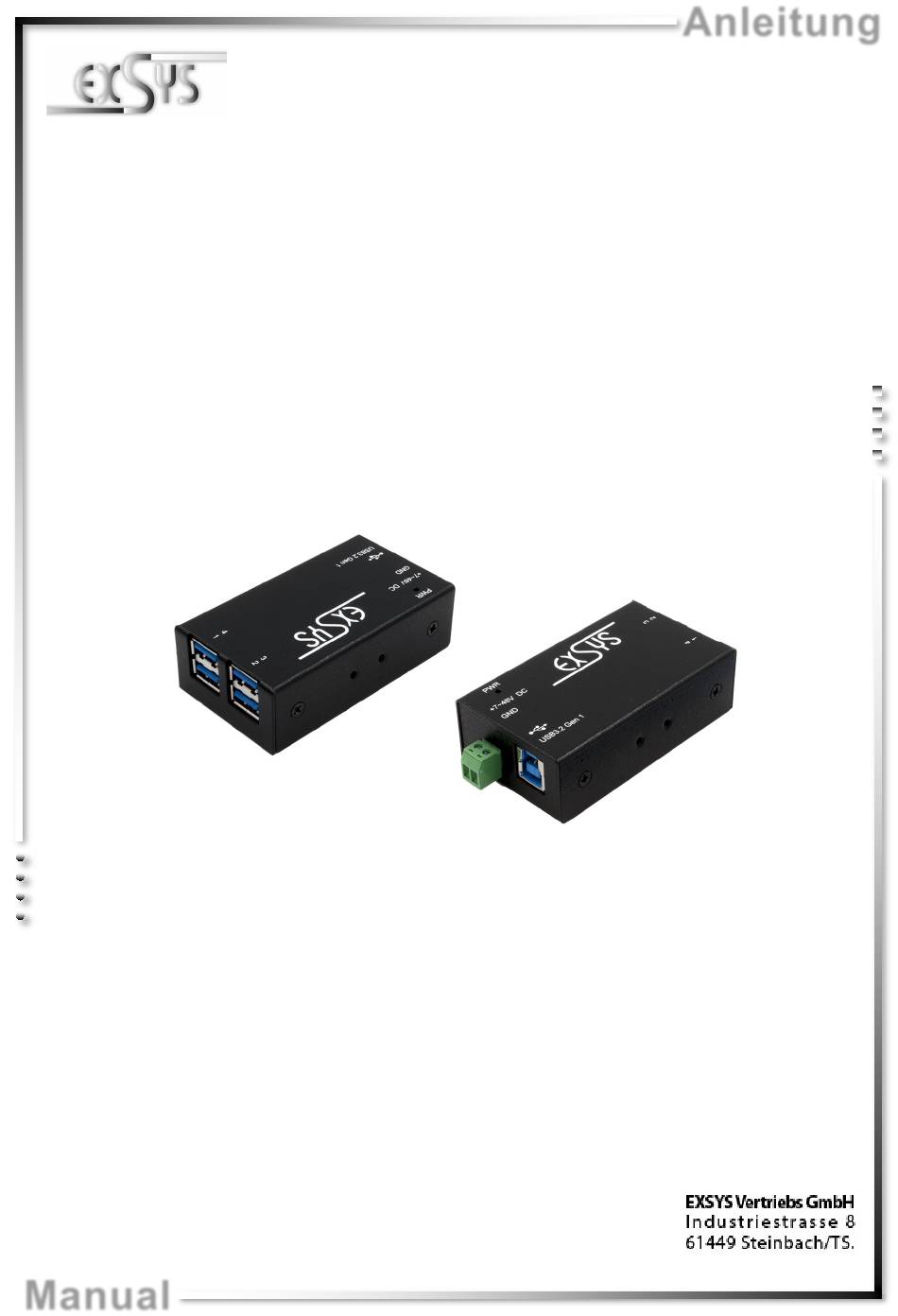

- Page 1 Anleitung EX-1181HMS Kleinster 4-Port USB 3.2 Gen 1 Metall HUB mit 1A Strom pro USB Port und 15KV ESD Überspannungsschutz für Trägerschiene Smallest 4-Port USB 3.2 Gen 1 Metal HUB with 1A power for each USB port and 15KV ESD Surge Protection for DIN-Rail Vers.
-
Page 2: Table Of Contents
Layout, Connections & Jumper Settings ··························································· 10-11 Layout ·······················································································································10 Connections ·········································································································· 10-11 Jumper Settings ··········································································································11 Hardware Installation ························································································· 12 Driver Installation ······························································································ 13 Cleaning ········································································································· 13 Technical Information ························································································ 14 Technical Drawing ···························································································· 14 © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
Deutsch 1. Beschreibung Der EX-1181HMS ist der kleinste USB 3.2 Gen 1 Metall HUB für bis zu vier Endgeräte. Der Hub ist mit 4 Ports für Endgeräte und 1 Port für den Anschluss an den PC ausgestattet. Er unterstützt alle USB Ports von 1.1 bis 3.2. -
Page 4: Aufbau, Anschlüsse & Jumper Einstellungen
7V-48V T-Block für optional Upstream B-Buchse erhältliches Netzteil 3.2 Anschlüsse +7V bis +48V T-Block: ACHTUNG!!! Schließen Sie niemals Strom an Ground an, dadurch kann Ihre Hardware zerstört werden!!! +7V bis +48V GND (Ground) © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Jumper Einstellungen
Der EX-1181HMS wird mit der Einstellung USB-Bus-Power ausgeliefert. Sie haben aber die Möglichkeit den EX-1181HMS auf der Datenleitung zum PC sprich die USB B-Buchse stromlos zu machen. Dafür müssen Sie zu erst das Gehäuse mit den vier Schrauben auf den Seiten öff- nen. -
Page 6: Hardware Installation
4. Hardware Installation Beachten Sie bitte die folgenden Installationshinweise. Da es große Unterschiede zwischen PC‘s gibt, können wir Ihnen nur eine generelle Anleitung zum Einbau des EX-1181HMS geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsanleitung Ihres Computersystems. 1. Installieren Sie den EX-1181HMS mit der mitgelieferten Wandmontagehalterung an die Wand oder mit dem mitgelieferten DIN-Rail Kit auf einer Tragschiene. -
Page 7: Treiber Installation
EX-1181HMS Deutsch 5. Treiber Installation Alle Betriebssysteme Nach Abschluss der Hardwareinstallation erkennt das Betriebssystem den EX-1181HMS automa- tisch und installiert diesen. ÜBERPRÜFEN DES INSTALLIERTEN TREIBER Öffnen Sie den >Geräte-Manager<. Jetzt müssten Sie unter „USB-Controller“ folgenden Eintrag sehen: Ist dieser oder ein ähnlicher Eintrag vorhanden, ist der USB Hub richtig installiert. -
Page 8: Technische Daten
0° bis 55° Celsius Lagertemperatur: -20° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +7V bis 48V Abmessung: 81,70 x 46,60 x 24,40 mm Gewicht: 300g 8. Technische Zeichnung © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 9: Description

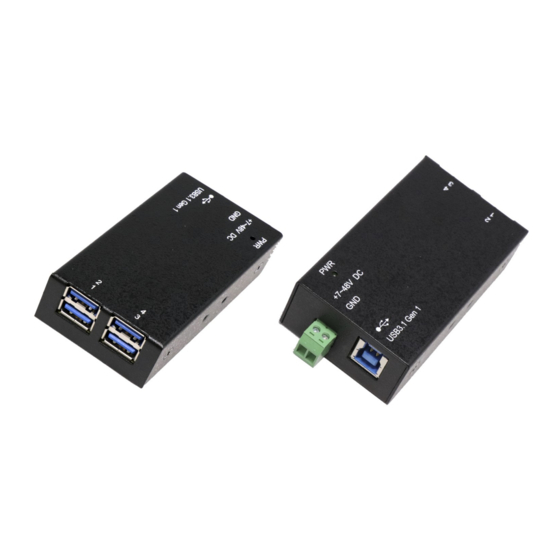

1. Description The EX-1181HMS is a USB 3.2 Gen 1 metal HUB for up to four end devices. The hub is equipped with 4 ports for end devices and 1 port for connection to PC. It supports all USB ports from 1.1 to 3.2. -
Page 10: Layout, Connections & Jumper Settings
1x USB 3.2 Gen 1 optional Power Supply Upstream Port 3.2 Connections +7V to +48V T-Block: ATTENTION!!! Never connect power to GND, it will destroy your Hardware!!! +7V to +48V GND (Ground) © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 11: Jumper Settings
VBus or in wrong direction. 3.3 Jumper Settings The EX-1181HMS will be delivered with the setting USB-Bus-Power. But you have the possibility to cut the power at the data line. For this you open the case with the four screws on both sides. -
Page 12: Hardware Installation
Wall Installation DIN-Rail 2. Connect the USB 3.2 Gen 1 cable with the USB 3.2 Gen 1 Upstream B-Port at the EX-1181HMS. 3. Connect the optional power supply to the Terminal Block at the Hub. 4. Now connect the other end from the USB 3.2 Gen 1 cable (A-Plug) to the USB A-Port at your... -
Page 13: Driver Installation
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In the area of the connectors please make sure that no fibres from the cloth remain in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 14: Technical Information
Operating Temperature: 32° to 131°Fahrenheit Storage Temperature: -40° to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +7V to 48V Size: 81,70 x 46,60 x 24,40 mm Weight: 300g 8. Technical Drawing © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...
