Manual

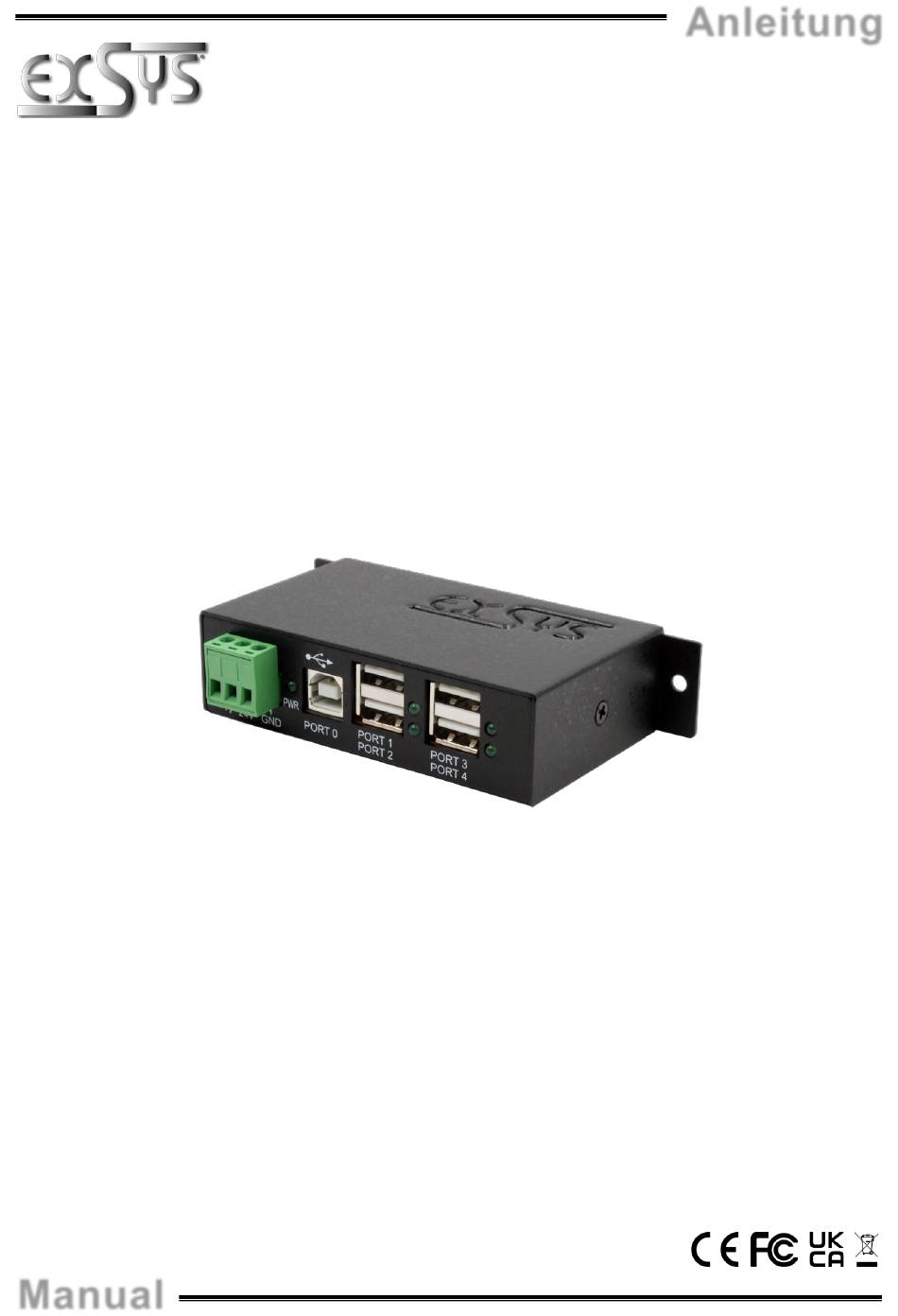

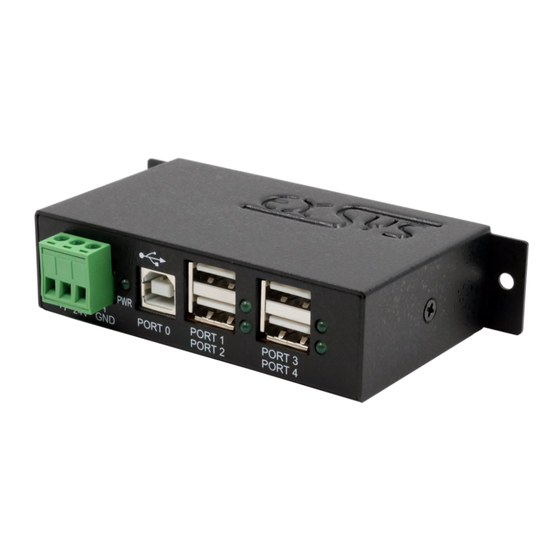

EX-1594HMS
4 Port USB 2.0 Managed Metall HUB
mit 15KV ESD Überspannungsschutz
4 Port USB 2.0 Managed Metal HUB
with 15KV ESD Surge Protection
Deutschland:
EXSYS Vertriebs GmbH
Industriestraße 8
61449 Steinbach
www.exsys.de
Schweiz:
EXSYS Vertriebs GmbH
Dübendorfstrasse 17
8602 Wangen
www.exsys.ch
Anleitung
Vers. 1.0 / 20.03.24
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Exsys EX-1594HMS
Summary of Contents for Exsys EX-1594HMS
- Page 1 4 Port USB 2.0 Managed Metall HUB mit 15KV ESD Überspannungsschutz 4 Port USB 2.0 Managed Metal HUB with 15KV ESD Surge Protection Deutschland: Schweiz: EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH Industriestraße 8 Dübendorfstrasse 17 61449 Steinbach 8602 Wangen www.exsys.de www.exsys.ch...
-
Page 2: Table Of Contents
Connections ·········································································································· 11-12 Jumper Settings ·········································································································· 12 Hardware Installation ························································································· 13 Driver Installation ······························································································ 13 Managment Software ··················································································· 14-15 Cleaning ········································································································· 15 Technical Information ························································································ 16 Technical Drawing ···························································································· 16 © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
Es werden alle Betriebssysteme unterstützt • Unterstützt Multi-TT (Transaction Translater) • 15KV ESD Überspannungsschutz 2. Lieferumfang Bevor Sie den EX-1594HMS an Ihren PC anschließen, überprüfen Sie bitte zuerst den Inhalt der Lieferung: • EX-1594HMS • USB 2.0 Kabel (verschraubbar) •... -
Page 4: Aufbau & Anschlüsse
+7V - 24V T-Block: ACHTUNG!!! Schließen Sie niemals Strom an Ground an, dadurch kann Ihre Hardware zerstört werden!!! GND (Ground) +7V - 24V USB 2.0 A-Buchse: USB 2.0 A-Buchse Signal Signal DATA+ DATA- © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Jumper Einstellungen
JP2 = ON Bus Power Host control Daten Power nein (ble) (Power on) nein (able) (Power on) nein nein HOST (ble) (control) nein HOST (able) (control) nein DIS/ENA HOST/ON nein © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 6: Hardware Installation
Ihnen nur eine generelle Anleitung zum Einbau der EX-1594HMS geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsanleitung Ihres Computersystems. 1. Installieren Sie die EX-1594HMS an der Wand oder mit den mitgelieferten DIN-Rail Kit auf einer Trägerschiene. -
Page 7: Verwaltungssoftware
6. Verwaltungssoftware Nach Abschluss der Treiberinstallation können Sie nun die Verwaltungssoftware installieren, um aus der Ferne auf den EX-1594HMS zugreifen zu können. Legen Sie dazu die Treiber-CD in Ihr CD-ROM Laufwerk (z.B. Laufwerk D:) ein und starten Sie das „EXSYS_USBCTL-R1.04_Setup“... -
Page 8: Reinigung
Deutsch EX-1594HMS 6. Verwaltungssoftware Nun können Sie verschiedene Einstellungen an der EX-1594HMS vornehmen. Ports können durch klicken auf die Port Alle Ports Nummer einzeln ein-/ausgeschaltet werden einschalten (Grün=Aktiv / Schwaz=Inaktiv) Passwort vergeben Neustart des Aktuelle Einstellungen Einstellungen Alle Ports speichern zurücksetzen... -
Page 9: Technische Daten
0° bis 55° Celsius Lagertemperatur: -20° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +7 bis +24 Volt Abmessung: 114.50 x 66.43 x 26.00 mm Gewicht: 200g 9. Technische Zeichnung © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 10: Description
All Operating Systems are supported • Supports Multi-TT (Transaction Translater) • 15KV ESD Surge Protection 2. Extent of Delivery Before you connect the EX-1594HMS to your PC, you should first check the contents of the delivery: • EX-1594HMS • USB 2.0 Cable (screw lock) •... -
Page 11: Layout & Connections
+7V - 24V T-Block: ATTENTION!!! Never connect power to GND, it will destroy your Hardware!!! GND (Ground) +7V - 24V USB 2.0 A-Port: USB 2.0 A-Port Signal Signal DATA+ DATA- © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 12: Jumper Settings
Jumper JP2 Netzteil Host PC Hub Downstream JP2 = ON Bus Power Host control Data Power (ble) (Power on) (able) (Power on) HOST (ble) (control) HOST (able) (control) DIS/ENA HOST/ON © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 13: Hardware Installation
Because there are large differences between computers, we can give you only a general installation guide. Please refer your computer’s reference manual whenever in doubt. 1. Mount the EX-1594HMS on a wall or DIN-Rail if required. DIN-Rail mount Holes for wall installation 2. -
Page 14: Managment Software
After the driver installation is complete, you can now install the management software to access the EX-1594HMS remotely. Now insert the driver CD in your CD-ROM drive (e.g. Drive D:) and run „EXSYS_USBCTL-R1.04_Setup“ which located in the „Windows“ folder (see picture): Follow the installation instructions and complete the installation. -
Page 15: Cleaning
EX-1594HMS English 6. Managment Software Now you can configure various settings on the EX-1594HMS. Ports can be switched on/off individually by All Ports clicking on the port number switch ON (Green=Active / Black=Inactive) Restart the Assign Password Save current Reset settings... -
Page 16: Technical Information
32°F to 131°Fahrenheit Storage Temperature: -40°F to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +7 to +24 Volt Size: 114.50 x 66.43 x 26.00 mm Weight: 200g 9. Technical Drawing © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved...
