Über Netzwerk teilbarer 10-Port USB 3.2 Gen 1
Network shareable 10-Port USB 3.2 Gen 1
Manual
EX-1580SHMVS
Managed Metall HUB
Managed Metal HUB
Deutschland:
EXSYS Vertriebs GmbH
Industriestraße 8
61449 Steinbach
www.exsys.de
Schweiz:
EXSYS Vertriebs GmbH
Dübendorfstrasse 17
8602 Wangen
www.exsys.ch
Anleitung
Vers. 1.0 / 20.03.24
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Exsys EX-1580SHMVS
Summary of Contents for Exsys EX-1580SHMVS

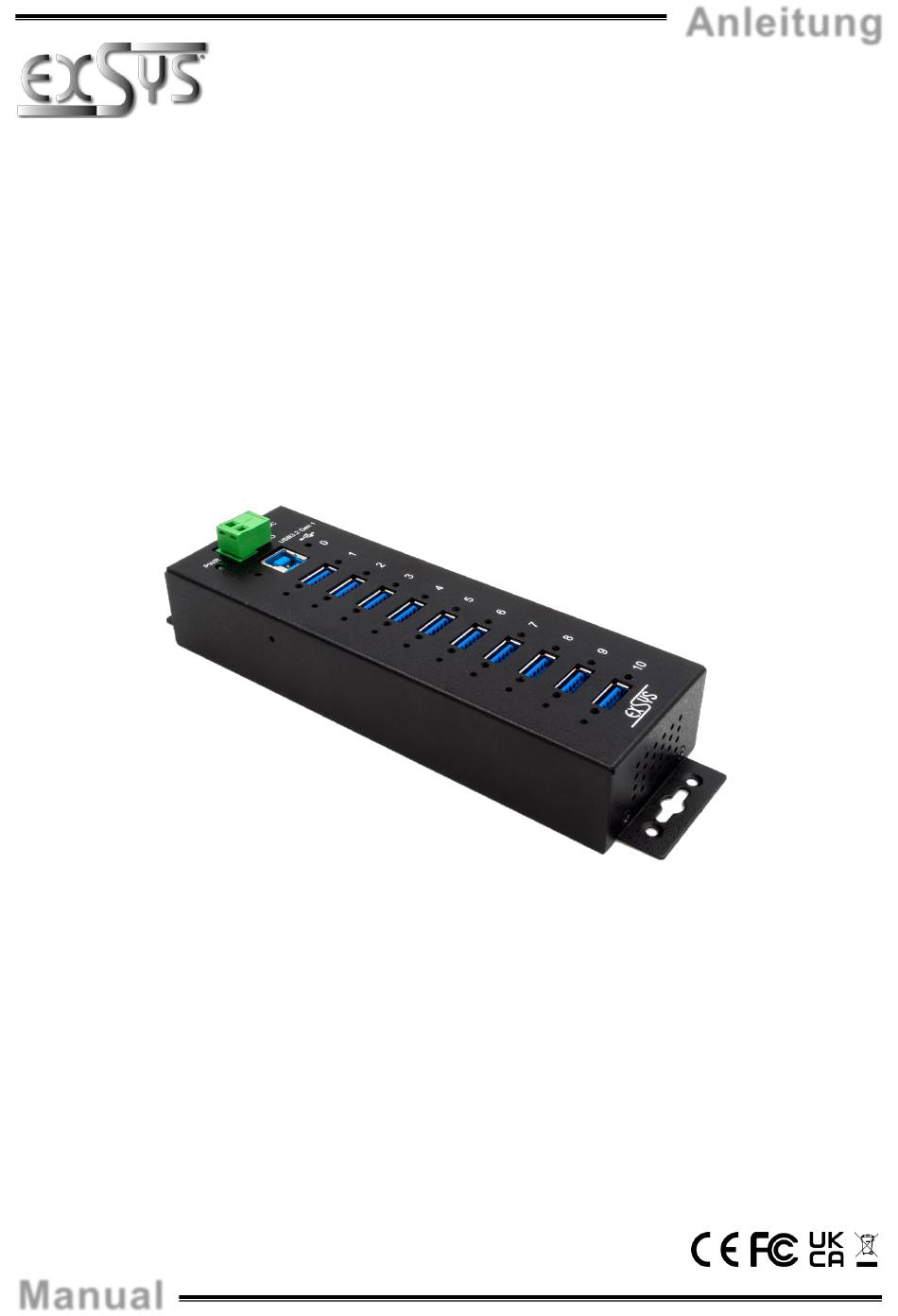

- Page 1 EX-1580SHMVS Über Netzwerk teilbarer 10-Port USB 3.2 Gen 1 Managed Metall HUB Network shareable 10-Port USB 3.2 Gen 1 Managed Metal HUB Deutschland: Schweiz: EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH Industriestraße 8 Dübendorfstrasse 17 61449 Steinbach 8602 Wangen www.exsys.de www.exsys.ch...
-
Page 2: Table Of Contents
Layout ·······················································································································11 Connections ·········································································································· 11-12 Jumper Settings ··········································································································12 Hardware Installation ························································································· 13 Driver Installation ······························································································ 13 Managment Software···················································································· 14-15 Cleaning ········································································································· 15 Technical Information ························································································ 16 Technical Drawing ···························································································· 16 © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
Deutsch 1. Beschreibung Der USB 3.2 Gen 1 (ehemals USB 3.0 oder 3.1 Gen 1) Managed Metall Hub EX-1580SHMVS mit zehn verschraubbaren Downstream-Ports bietet umfangreiche und einzigartige Funktionen für industrielle Anwendungen. Er kann von mehreren Benutzern über das Netzwerk gesteuert werden. -
Page 4: Aufbau & Anschlüsse
Ihre Hardware zerstört werden! GND (Ground) +7V - 24V USB 3.2 Gen 1 A-Buchse: GND_DRAIN StdB_SSTX StdB_SSTX + ACHTUNG! StdB_SSTX - StdB_SSTX - Stecker niemals umgekehrt oder mit Gewalt einstecken. © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Jumper Einstellungen
Der EX-1580SHMVS wird mit der Einstellung USB-Bus-Power ausgeliefert. Sie haben aber die Möglichkeit den EX-1580SHMVS auf der Datenleitung zum PC sprich die USB B-Buchse strom- los zu machen. Dafür müssen Sie zu erst das Gehäuse mit den acht Schrauben auf den Seiten öffnen. -
Page 6: Hardware Installation
Ihnen nur eine generelle Anleitung zum Einbau der EX-1580SHMVS geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsanleitung Ihres Computersystems. 1. Installieren Sie den EX-1580SHMVS an der Wand oder mit den mitgelieferten DIN-Rail Kit auf einer Trägerschiene. -
Page 7: Verwaltungssoftware
6. Verwaltungssoftware Nach Abschluss der Treiberinstallation können Sie nun die Verwaltungssoftware CUDS Administrator installieren, um aus der Ferne auf den EX-1580SHMVS zugreifen zu können. Legen Sie dazu die Treiber-CD in Ihr CD-ROM Laufwerk (z.B. Laufwerk D:) ein und starten Sie das „CUDS R.x.xx Setup“... -
Page 8: Reinigung
Sie die Verschmutzung mit leichtem Druck. Im Bereich der Anschlüsse bitte darauf Achten, dass keine Fasern des Tuchs in der Buchse hinterlassen werden. Verwenden Sie zur Reinigung in keinem Fall ein feuchtes oder nasses Tuch! © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 9: Technische Daten
-20° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Höhe: bis 2000 m Stromversorgung: +7 bis +24 Volt Abmessung: 198.00 x 55.00 x 40.06 mm Gewicht: 360g 9. Technische Zeichnung © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 10: Description

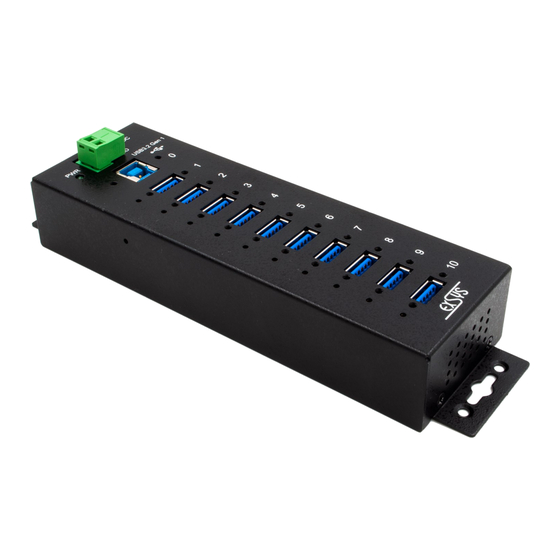

EX-1580SHMVS 1. Description The EX-1580SHMVS USB 3.2 Gen 1 (formerly USB 3.0 or 3.1 Gen 1) Managed Metal Hub with ten screwable downstream ports offers comprehensive and unique features for industrial applications. It can be managed by multiple users over the network. The EX-1580SHMVS supports the USB Battery Charging Specification v1.2 (SDP, CDP, DCP) as well as some manufacturer... -
Page 11: Layout & Connections
Hardware! GND (Ground) +7V - 24V USB 3.2 Gen 1 A-Port: GND_DRAIN StdB_SSTX StdB_SSTX + ATTENTION! StdB_SSTX - StdB_SSTX - Never plug in with force or in wrong direction. © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 12: Jumper Settings
Never plug in with force or in wrong direction. VBus 3.3 Jumper Settings The EX-1580SHMVS will be delivered with the setting USB-Bus-Power. But you have the possi- bility to cut the power at the data line. For this you open the case with the eight screws on both sides. -
Page 13: Hardware Installation
Because there are large differences between computers, we can give you only a general installation guide. Please refer your computer’s reference manual whenever in doubt. 1. Mount the EX-1580SHMVS on a wall or DIN-Rail if required. DIN-Rail mount Holes for wall installation 2. -
Page 14: Managment Software
Once the driver installation is complete, you can install the CUDS Administrator management software to remotely access the EX-1580SHMVS. To do this, insert the driver CD into your CD- ROM drive (e.g. drive D:) and start the 'CUDS R.x.xx Setup' located in the 'Windows' folder* (see illustration). -
Page 15: Cleaning
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In the area of the connectors please make sure that no fibres from the cloth remain in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 16: Technical Information
-40°F to 185°Fahrenheit Rel. Humidity: 5% to 95% Altitude: Up to 2000 m Power: +7 to +24 Volt Size: 198.00 x 55.00 x 40.06 mm Weight: 360g 9. Technical Drawing © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved...
