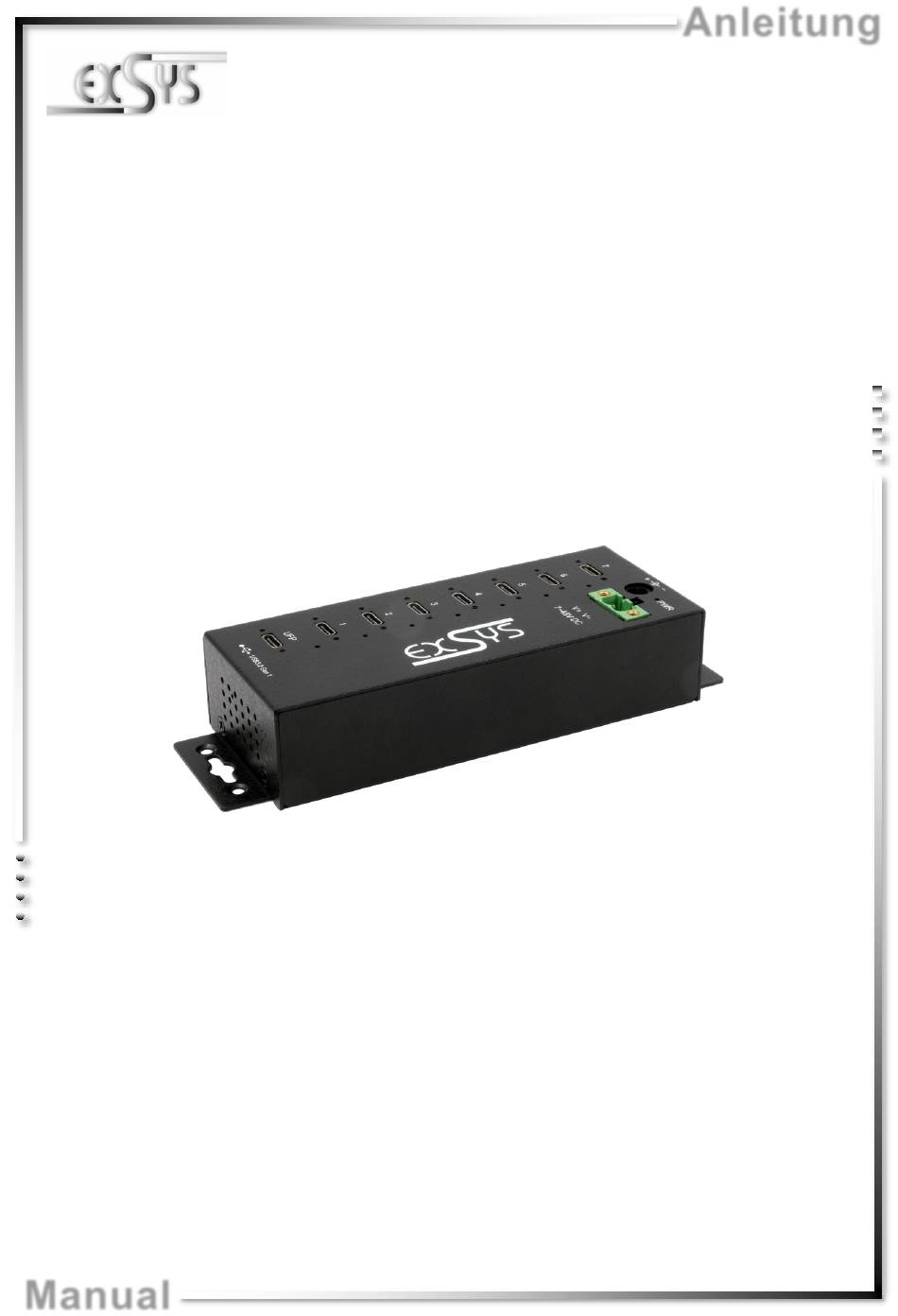

Anleitung
EX-1537HMVS
7-Port USB 3.2 Gen 1 Managed Metall HUB
mit 2,4 A Strom pro USB C-Port und
15KV ESD Überspannungsschutz (DIN-Rail)
7-Port USB 3.2 Gen 1 Managed Metal HUB with
with 2,4A power per USB C-Port and
15KV ESD Surge Protection (DIN-Rail)
Deutschland:
EXSYS Vertriebs GmbH
Industriestraße 8
61449 Steinbach
www.exsys.de
Schweiz:
EXSYS Vertriebs GmbH
Dübendorfstrasse 17
8602 Wangen
www.exsys.ch
Vers. 1.0 / 26.02.24
Manual
Advertisement
Table of Contents
Related Manuals for Exsys EX-1537HMVS
Summary of Contents for Exsys EX-1537HMVS
- Page 1 2,4 A Strom pro USB C-Port und 15KV ESD Überspannungsschutz (DIN-Rail) 7-Port USB 3.2 Gen 1 Managed Metal HUB with with 2,4A power per USB C-Port and 15KV ESD Surge Protection (DIN-Rail) Deutschland: EXSYS Vertriebs GmbH Industriestraße 8 61449 Steinbach www.exsys.de Schweiz: EXSYS Vertriebs GmbH Dübendorfstrasse 17...
-
Page 2: Table Of Contents
Layout & Connections ··················································································· 11-12 Layout ·······················································································································11 Connections ·········································································································· 11-12 Hardware Installation ························································································· 12 Driver Installation ······························································································ 13 Managment Software···················································································· 14-15 Cleaning ········································································································· 15 Technical Information ························································································ 16 Technical Drawing ···························································································· 16 © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
Deutsch 1. Beschreibung Der EX-1537HMVS ist ein USB 3.2 Gen 1 (ehemals USB 3.0 oder 3.1 Gen 1) Managed Metall Hub und ist mit sieben USB C-Ports für Endgeräte und einem USB C-Port für den Anschluss an den PC ausgestattet. Er unterstützt alle USB Anschlüsse von 1.1 bis 3.2. Jeder Anschluss an der EX- 1537HMVS ist zusätzlich verschraubbar. -
Page 4: Aufbau & Anschlüsse
Port optionales externes Netzteil Reset Knopf 3.2 Anschlüsse USB 3.2 Gen 1 C-Buchse: Hinweis! Durch die Doppelbelegung der Pins kann der USB C-Stecker beidseitig in die Buchse gesteckt werden. © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Hardware Installation
Ihnen nur eine generelle Anleitung zum Anschluss der EX-1537HMVS geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsanleitung Ihres Computersystems. 1. Installieren Sie die EX-1537HMVS an die Wand oder mit dem mitgelieferten DIN-Rail Kit auf einer Tragschiene. -
Page 6: Treiber Installation
Deutsch EX-1537HMVS 5. Treiber Installation Alle Betriebssysteme Nach Abschluss der Hardware Installation erkennt das Betriebssystem den EX-1537HMVS auto- matisch und installiert diesen. ÜBERPRÜFEN DES INSTALLIERTEN TREIBER Öffnen Sie den >Geräte-Manager<. Jetzt müssten Sie unter „Anschlüsse (COM & LPT)“ & „USB -Controller“... -
Page 7: Verwaltungssoftware
Nach Abschluss der Treiber Installation können Sie nun die Verwaltungssoftware installieren, um auf den EX-1537HMVS aus der Ferne zugreifen zu können. Legen Sie nun die Treiber CD in Ihr CD-ROM Laufwerk (z.B. Laufwerk D:) ein und starten Sie das „EXSYS_USBCTL-R1.03_Setup“... -
Page 8: Reinigung
Deutsch EX-1537HMVS 6. Verwaltungssoftware Nun können Sie verschiedene Einstellungen an der EX-1537HMVS vornehmen. Ports können auch durch klicken auf die Port Alle Ports Nummer einzeln ein-/ausgeschaltet werden einschalten (Grün=Aktiv / Schwaz=Inaktiv) Neustart des Passwort vergeben Aktuelle Einstellungen Einstellungen Alle Ports... -
Page 9: Technische Daten
0° bis 55° Celsius Lagertemperatur: -20° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +7 bis +48 Volt Abmessung: 162.00 x 54.80 x 40.80 mm Gewicht: 850g 9. Technische Zeichnung © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 10: Description
EX-1537HMVS 1. Description The EX-1537HMVS is a USB 3.2 Gen 1 (formerly USB 3.0 or 3.1 Gen 1) managed metal hub and is equipped with seven USB C-Ports for end devices and one USB C-Port for connection to the PC. It supports all USB ports from 1.1 to 3.2. Each port on the EX-1537HMVS can also be screwed on. -
Page 11: Layout & Connections
Reset Button 3.2 Connections USB 3.2 Gen 1 C-Port: Note! Due to the double assignment of the pins, the USB C-Plug can be plugged into the socket on both sides. © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 12: Hardware Installation
1. Install the EX-1537HMVS on the wall or on a DIN rail using the DIN rail kit supplied. 2. Connect the supplied USB 3.2 Gen 1 cable to the USB 3.2 Gen 1 Upstream C-Port of the hub. -
Page 13: Driver Installation
Open the >Device manager<. Now you should see at „Ports (COM & LPT)“ & „USB-Controller“ the following new entry's: If you see this or a similar information the device is installed correctly. © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 14: Managment Software
6. Managment Software After the driver installation is complete, you can now install the management software to access the EX-1537HMVS remotely. Now insert the driver CD in your CD-ROM drive (e.g. Drive D:) and run „EXSYS_USBCTL-R1.03_Setup“ which located in the „Windows“... -
Page 15: Cleaning
EX-1537HMVS English 6. Managment Software Now you can make various settings on the EX-1537HMVS. Ports can also be switched on/off individually All Ports by clicking on the port number switch ON (Green=Active / Black=Inactive) Save current Settings Reset Settings Restart the... -
Page 16: Technical Information
32°F to 131°Fahrenheit Storage Temperature: -40°F to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +7 to +48 Volt Size: 162.00 x 54.80 x 40.80 mm Weight: 850g 9. Technical Drawing © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved...
