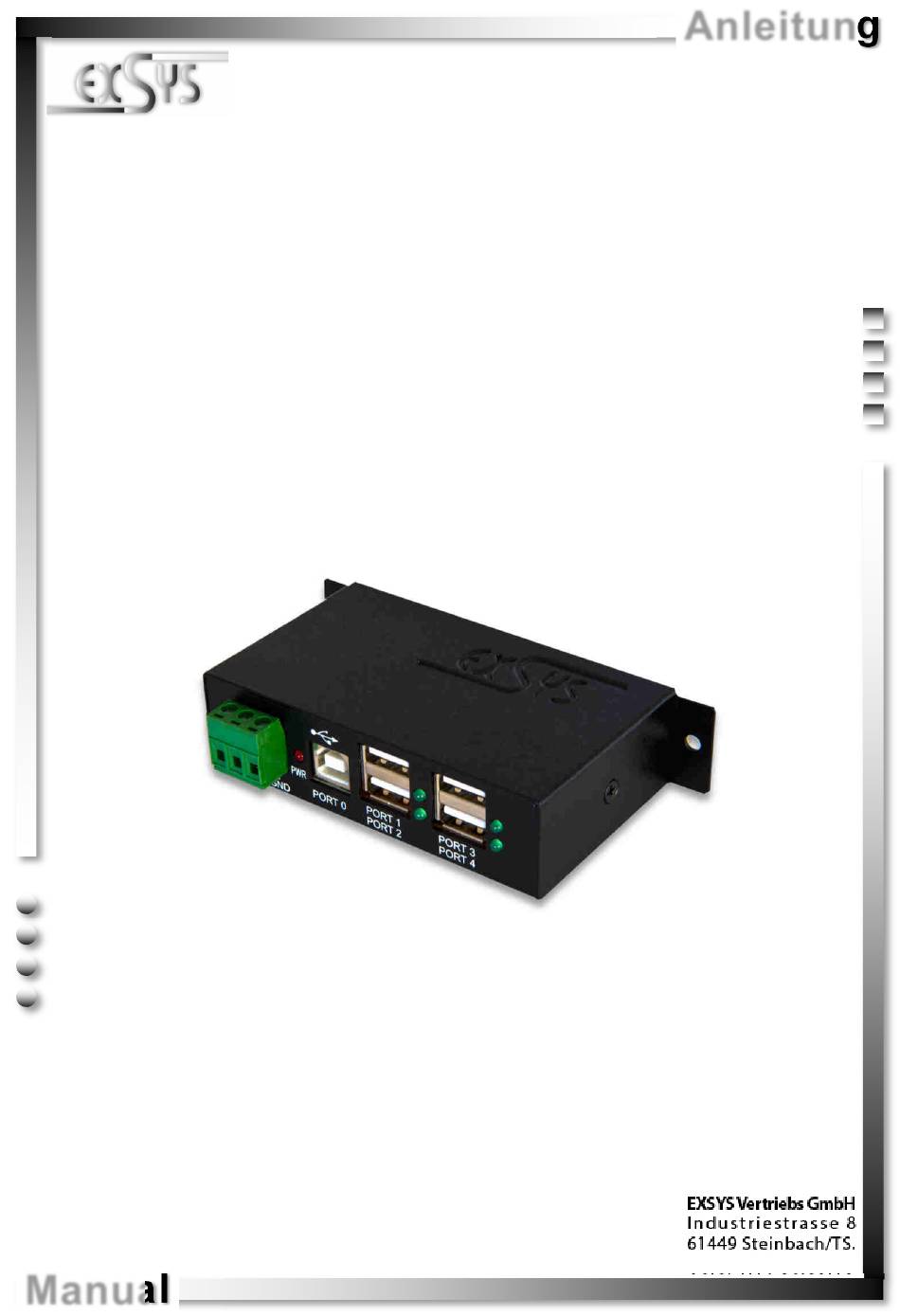

- Page 1 Anleitung EX-1163HM 4 Port USB 2.0 Metall HUB für Trägerschiene 4 Port USB 2.0 Metal HUB for DIN-Rail Vers. 1.1 / 06.09.18 Manual...
-
Page 2: Table Of Contents
3.1 Layout ······································································································ 9 3.2 Connections ·························································································· 9-10 3.3 Jumper Settings ························································································ 10 Hardware Installation ··········································································· 11 Driver Installation ················································································ 11 Cleaning ··························································································· 11 Technical Information ·········································································· 12 Technical Drawing ·············································································· 12 © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
Deutsch 1. Beschreibung Der EX-1163HM ist ein USB 2.0 Metall HUB für bis zu 4 Endgeräte. Der Hub ist mit 4 Ports für Endgeräte und 1 Port für den Anschluss an den PC ausgestattet. Er unterstützt alle USB Anschlüsse von 1.1 bis 3.1. Durch die Stromversorgung über den Terminal Block, werden an jedem Port die vollen 500mA zur Verfügung gestellt. -
Page 4: Aufbau, Anschlüsse & Jumper Einstellungen
+7V - 24V T-Block: ACHTUNG!!! Schließen Sie niemals Strom an Ground an, dadurch kann Ihre Hardware zerstört werden!!! GND (Ground) +7V - 24V USB 2.0 A-Buchse: USB 2.0 A-Buchse Signal Signal DATA+ DATA- © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Jumper Einstellungen
DATA- 3.3 Jumper Einstellungen Die EX-1163HM wird mit der Einstellung Self-Power ausgeliefert. Sie haben aber die Möglichkeit die EX-1163HM mit Bus-Power zu versorgen. Dafür müssen Sie zu erst das Gehäuse mit den zwei Schrauben auf den Seiten öffnen. Nun müssen Sie den Jumper JP1 von T (Terminal Block) auf U (USB) setzen. -
Page 6: Hardware Installation
3. Verbinden Sie nun das andere Ende (A-Stecker) des mitgelieferten USB Kabels mit der A-Buchse an Ihrem PC. 5. Treiber Installation Alle Betriebssysteme Nach Abschluss der Hardwareinstallation erkennt das Betriebssystem den EX-1163HM automatisch und installiert diesen. ÜBERPRÜFEN DES INSTALLIERTEN TREIBER Öffnen Sie den >Geräte-Manager<. Jetzt müssten Sie unter „USB-Controller“ folgen- de Einträge sehen:... -
Page 7: Technische Daten
0° bis 55° Celsius Lagertemperatur: -20° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +7 bis +24 Volt Abmessung: 114,50 x 66,43 x 26,00 mm Gewicht: 420g 8. Technische Zeichnung © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 8: Description

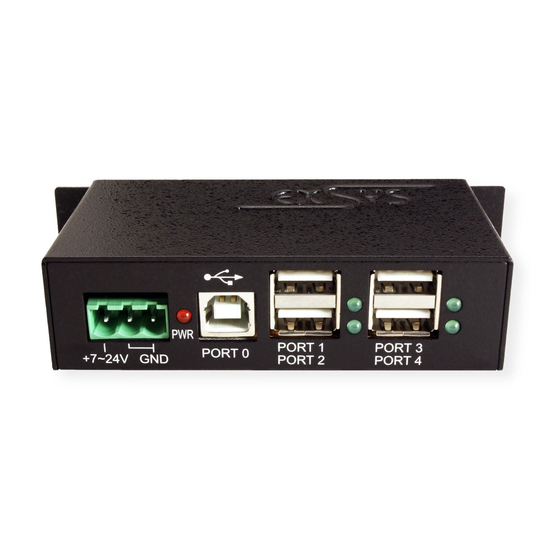

EX-1163HM 1. Description The EX-1163HM is a plug & play high-speed USB 2.0 metal hub for 4 USB devices. The EX-1163HM provides 4 ports for USB devices and 1 uplink port for PC. It supports all USB connections from 1.1 to 3.1. The power over the terminal block provides a max- imum of power on each USB port of 500mA. -
Page 9: Layout, Connections & Jumper Settings
Never connect power to GND, it will destroy your Hardware!!! GND (Ground) GND (Ground) +7V - 24V +7V - 24V USB 2.0 A-Port: USB 2.0 A-Port Signal Signal DATA+ DATA- © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 10: Jumper Settings
The EX-1163HM will be delivered with the setting Self-Power. You also have the pos- sibility the EX-1163HM to supply with Bus-Power. For this you open the case with the two screws on both sides. Then you must set the jumper JP1 from T (Terminal Block) to U (USB). -
Page 11: Hardware Installation
In the area of the connectors please make sure that no fibres from the cloth re- main in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 12: Technical Information
32°F to 131°Fahrenheit Storage Temperature: -40°F to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +7 to +24 Volt Size: 114,50 x 66,43 x 26,00 mm Weight: 420g 8. Technical Drawing © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
