Manual

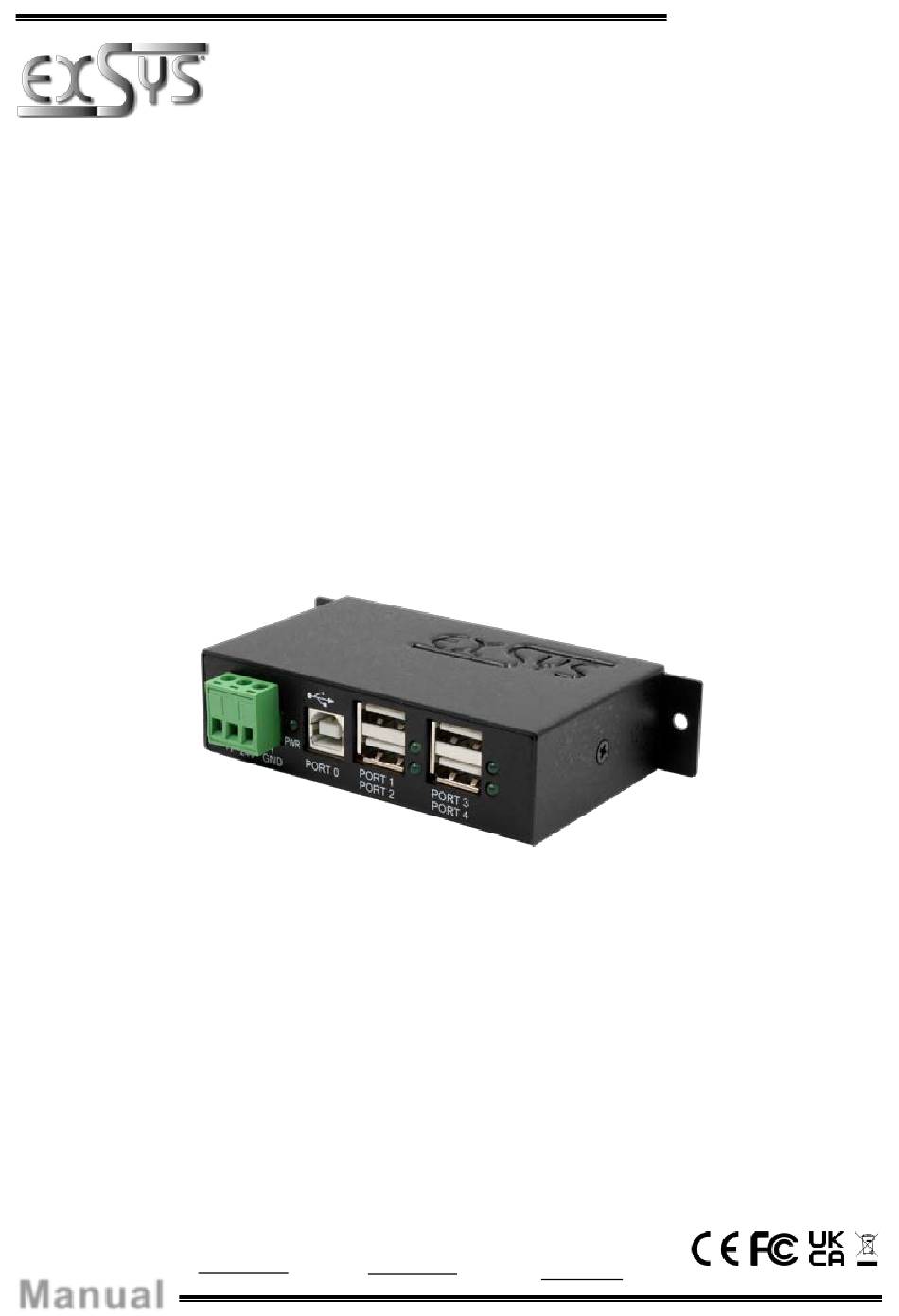

EX-1594HMS
HUB USB 2.0 a 4 porte gestito con
protezione da sovratensione ESD da
15 KV in metallo
4 Port USB 2.0 Managed Metal HUB
with 15KV ESD Surge Protection
Germany:
Schweiz:
EXSYS Vertriebs GmbH
EXSYS Vertriebs GmbH
Industriestraße 8
Dübendorfstrasse 17
61449 Steinbach
8602 Wangen
www.exsys.de
www.exsys.ch
Manuale
Vers. 1.0 / 20.03.24
Italia:
EXSYS Italia Srl
Via Belvedere, 45/B
I-22100 Como
www.exsys.it
Advertisement
Related Manuals for Exsys EX-1594HMS
Summary of Contents for Exsys EX-1594HMS
- Page 1 ESD da 15 KV in metallo 4 Port USB 2.0 Managed Metal HUB with 15KV ESD Surge Protection Germany: Schweiz: Italia: EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH EXSYS Italia Srl Industriestraße 8 Dübendorfstrasse 17 Via Belvedere, 45/B 61449 Steinbach...
- Page 2 Dati Tecnici Disegni Tecnici Index Description Extent of Delivery Layout & Connections 11-12 Layout Connections 11-12 Jumper Settings Hardware Installation Driver Installation Managment Software 14-15 Cleaning Technical Information Technical Drawing © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 3 L'EX-1594HMS è dotato anche di una memoria flash che consente di salvare le impostazioni effettuate.
- Page 4 T-Block +7V - 24V : ATTENZIONE!!! Non collegare mai l'alimentazione a terra (GND) potresti distruggere l'hardware!!! GND (Ground) +7V - 24V USB 2.0 Type-A: USB 2.0 Type-A Segnale Segnale DATA+ DATA- © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 5 Host PC Hub Downstream JP1 = ENA Bus Power Host control Daten Power JP2 = ON (ble) (Power on) (able) (Power on) HOST (ble) (control) HOST (able) (control) DIS/ENA HOST/ON © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 6 PC, possiamo fornirvi solamente delle istruzioni in general per l'installazione dell'EX- 1594HMS. In caso di domande, consultare il manuale d'uso del proprio sistema informatico. Installare l'EX-1594HMS sulla parete o su una guida di supporto utilizzando il kit guida DIN incluso.
- Page 7 Dopo aver completato l'installazione del driver, puoi installare il software di gestione per accedere da remoto all'EX-1594HMS. Ora inserisci il CD del driver nell'unità CD-ROM (ad esempio, unità D:) ed esegui "EXSYS_USBCTL-R1.04_Setup" che si trova nella cartella "Windows" (vedi immagine): Segui le istruzioni per la procedura d’installazione.
- Page 8 Per pulire il dispositivo, utilizzare solo un panno asciutto e privo di pelucchi e rimuovere lo sporco esercitando una leggera pressione. Nella zona dei collegamenti, assicurarsi che non rimangano fibre di tessuto nella presa. Non utilizzare mai un panno umido o bagnato per la pulizia! © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 9 Da -20° a 85° Celsius Dal 5% al 95% Umidità Rel. : Da +7 a +24 Volt Alimentazione: 114.50 x 66.43 x 26.00 mm Dimensione: 200g Peso: 9. Disegno Tecnico © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 10 All Operating Systems are supported • Supports Multi-TT (Transaction Translater) • 15KV ESD Surge Protection 2. Extent of Delivery Before you connect the EX-1594HMS to your PC, you should first check the contents of the delivery: • EX-1594HMS • USB 2.0 Cable (screw lock) •...
- Page 11 +7V - 24V T-Block: ATTENTION!!! Never connect power to GND, it will destroy your Hardware!!! GND (Ground) +7V - 24V USB 2.0 A-Port: USB 2.0 A-Port Signal Signal DATA+ DATA- © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 12 Jumper JP2 Netzteil Host PC Hub Downstream JP2 = ON Bus Power Host control Data Power (ble) (Power on) (able) (Power on) HOST (ble) (control) HOST (able) (control) DIS/ENA HOST/ON © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 13 Because there are large differences between computers, we can give you only a general installation guide. Please refer your computer’s reference manual whenever in doubt. 1. Mount the EX-1594HMS on a wall or DIN-Rail if required. DIN-Rail mount Holes for wall installation 2.
- Page 14 After the driver installation is complete, you can now install the management software to access the EX-1594HMS remotely. Now insert the driver CD in your CD-ROM drive (e.g. Drive D:) and run „EXSYS_USBCTL-R1.04_Setup“ which located in the „Windows“ folder (see picture): Follow the installation instructions and complete the installation.
- Page 15 EX-1594HMS English 6. Managment Software Now you can configure various settings on the EX-1594HMS. Ports can be switched on/off individually by All Ports clicking on the port number switch ON (Green=Active / Black=Inactive) Restart the Save current All Ports Assign Password...
- Page 16 32°F to 131°Fahrenheit Operating Temperature: -40°F to 185°Fahrenheit Storage Temperature: 5% to 95% Rel. Humidity: +7 to +24 Volt Power: 114.50 x 66.43 x 26.00 mm Size: 200g Weight: 9. Technical Drawing © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved...
