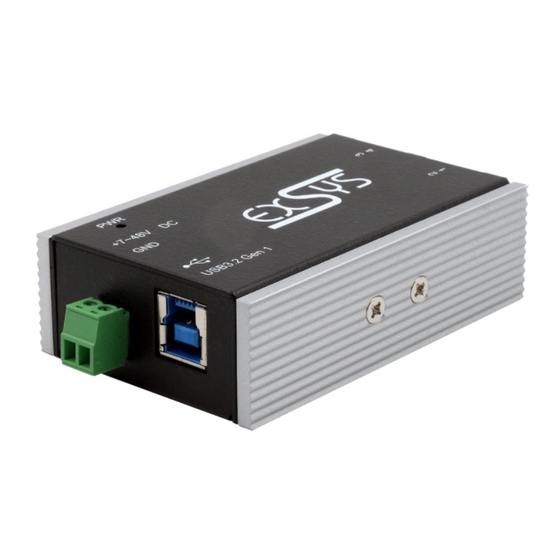

Smallest 4-port usb 3.2 gen 1 metal hub with 1a power for each usb port and 15kv esd surge protection for din-rail and extended temperature range from -40 f to 185 f
Hide thumbs Also See for EX-1181HMS-WT:

Advertisement

Available languages

Available languages

Quick Links

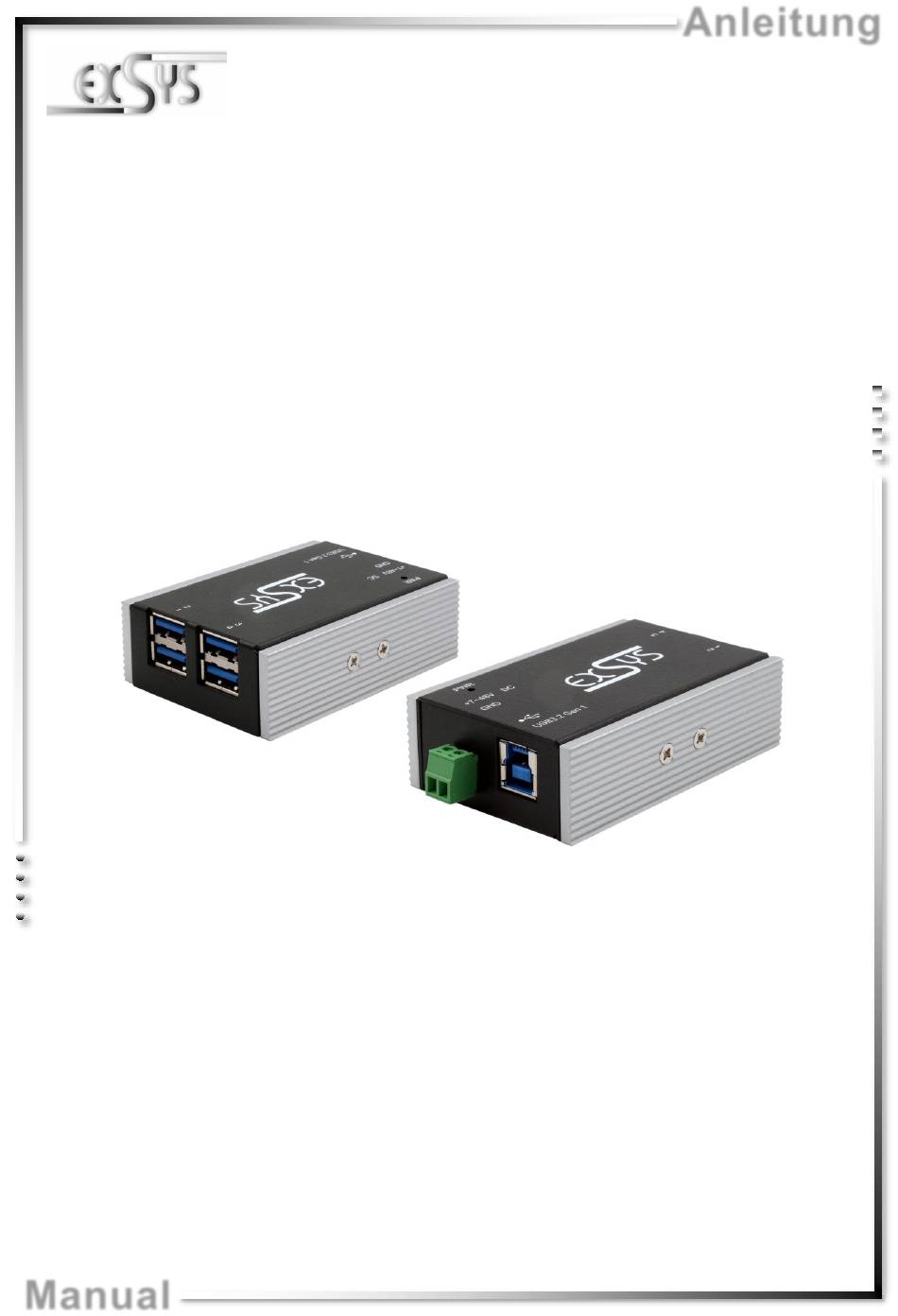

Anleitung
EX-1181HMS-WT
Kleinster 4-Port USB 3.2 Gen 1 Metall HUB mit
1A Strom pro USB Port und
15KV ESD Überspannungsschutz für Tragschiene
und erweitertem Temperaturbereich von -40°C bis 85°C
Smallest 4-Port USB 3.2 Gen 1 Metal HUB with
1A power for each USB port and
15KV ESD Surge Protection for DIN-Rail
and extended Temperature Range from -40°F to 185°F
Deutschland:
EXSYS Vertriebs GmbH
Industriestraße 8
61449 Steinbach
www.exsys.de
Schweiz:
EXSYS Vertriebs GmbH
Dübendorfstrasse 17
8602 Wangen
www.exsys.ch
Vers. 1.0 / 26.02.24
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EX-1181HMS-WT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Exsys EX-1181HMS-WT

  • Page 1 Smallest 4-Port USB 3.2 Gen 1 Metal HUB with 1A power for each USB port and 15KV ESD Surge Protection for DIN-Rail and extended Temperature Range from -40°F to 185°F Deutschland: EXSYS Vertriebs GmbH Industriestraße 8 61449 Steinbach www.exsys.de Schweiz: EXSYS Vertriebs GmbH Dübendorfstrasse 17...
  • Page 2: Table Of Contents

    Layout, Connections & Jumper Settings ··························································· 10-11 Layout ·······················································································································10 Connections ·········································································································· 10-11 Jumper Settings ··········································································································11 Hardware Installation ························································································· 12 Driver Installation ······························································································ 13 Cleaning ········································································································· 13 Technical Information ························································································ 14 Technical Drawing ···························································································· 14 © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Page 3: Beschreibung

    Deutsch 1. Beschreibung Der EX-1181HMS-WT ist der kleinste USB 3.2 Gen 1 Metall HUB für bis zu vier Endgeräte. Der Hub ist mit vier USB A-Buchsen für Endgeräte und einer USB B-Buchse für den Anschluss an den PC ausgestattet. Er unterstützt alle USB Ports von 1.1 bis 3.2. Durch die Stromversorgung über den Terminal Block können an jedem USB Port 1A zur Verfügung gestellt werden.
  • Page 4: Aufbau, Anschlüsse & Jumper Einstellungen

    1x USB 3.2 Gen 1 erhältliches Netzteil Upstream B-Buchse 3.2 Anschlüsse +7V bis +48V T-Block: ACHTUNG!!! Schließen Sie niemals Strom an Ground an, dadurch kann Ihre Hardware zerstört werden!!! +7V bis +48V GND (Ground) © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Page 5: Jumper Einstellungen

    Der EX-1181HMS-WT wird mit der Einstellung USB-Bus-Power ausgeliefert. Sie haben aber die Möglichkeit den EX-1181HMS-WT auf der Datenleitung zum PC sprich die USB B-Buchse strom- los zu machen. Dafür müssen Sie zu erst das Gehäuse mit den acht Schrauben auf den Seiten öffnen.
  • Page 6: Hardware Installation

    4. Hardware Installation Beachten Sie bitte die folgenden Installationshinweise. Da es große Unterschiede zwischen PC‘s gibt, können wir Ihnen nur eine generelle Anleitung zum Anschluss des EX-1181HMS-WT geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsanleitung Ihres Computersystems. 1. Installieren Sie den EX-1181HMS-WT mit der mitgelieferten Wandmontagehalterung an die Wand oder mit dem mitgelieferten DIN-Rail Kit auf einer Tragschiene.
  • Page 7: Treiber Installation

    EX-1181HMS-WT Deutsch 5. Treiber Installation Alle Betriebssysteme Nach Abschluss der Hardwareinstallation erkennt das Betriebssystem den EX-1181HMS-WT auto- matisch und installiert diesen. ÜBERPRÜFEN DES INSTALLIERTEN TREIBER Öffnen Sie den >Geräte-Manager<. Jetzt müssten Sie unter „USB-Controller“ folgenden Eintrag sehen: Ist dieser oder ein ähnlicher Eintrag vorhanden, ist der USB Hub richtig installiert.
  • Page 8: Technische Daten

    -40° bis 85° Celsius Lagertemperatur: -40° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +7V bis 48V Abmessung: 82,00 x 52,80 x 25,00 mm Gewicht: 420g 8. Technische Zeichnung © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Page 9: Description

    English 1. Description The EX-1181HMS-WT is a USB 3.2 Gen 1 metal HUB for up to four end devices. The hub is equipped with 4 A-Ports for end devices and 1 B-Port for connection to PC. It supports all USB ports from 1.1 to 3.2.
  • Page 10: Layout, Connections & Jumper Settings

    1x USB 3.2 Gen 1 optional Power Supply Upstream Port 3.2 Connections +7V to +48V T-Block: ATTENTION!!! Never connect power to GND, it will destroy your Hardware!!! +7V to +48V GND (Ground) © Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Page 11: Jumper Settings

    VBus or in wrong direction. 3.3 Jumper Settings The EX-1181HMS-WT will be delivered with the setting USB-Bus-Power. But you have the possi- bility to cut the power at the data line. For this you open the case with the eight screws on both sides.
  • Page 12: Hardware Installation

    Because there are large differences between PC’s, we can give you only a general installation guide for the EX-1181HMS-WT. Please refer your computer’s reference manual whenever in doubt. 1. Install the EX-1181HMS-WT to the wall or to a DIN-Rail if required. Holes for Installation to...
  • Page 13: Driver Installation

    For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In the area of the connectors please make sure that no fibres from the cloth remain in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Page 14: Technical Information

    Operating Temperature: -40° to 185°Fahrenheit Storage Temperature: -40° to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +7V to 48V Size: 82,00 x 52,80 x 25,00 mm Weight: 420g 8. Technical Drawing © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...
