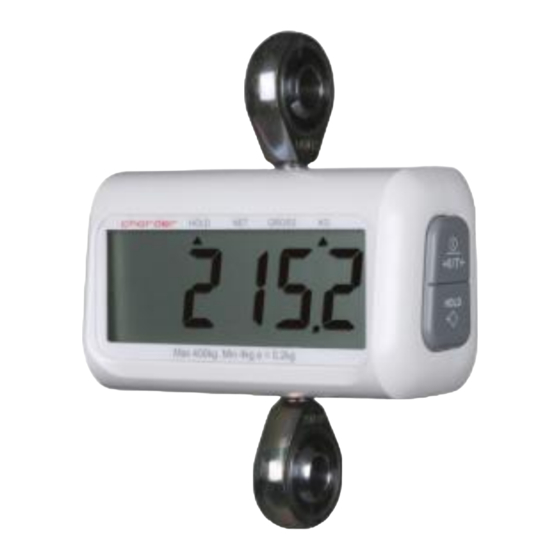

USER MANUAL
MHS2600I
Lift Scale
Please keep the instruction manual at hand all the time for future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MHS2600I and is the answer not in the manual?

Questions and answers

Related Manuals for Charder MHS2600I

Summary of Contents for Charder MHS2600I

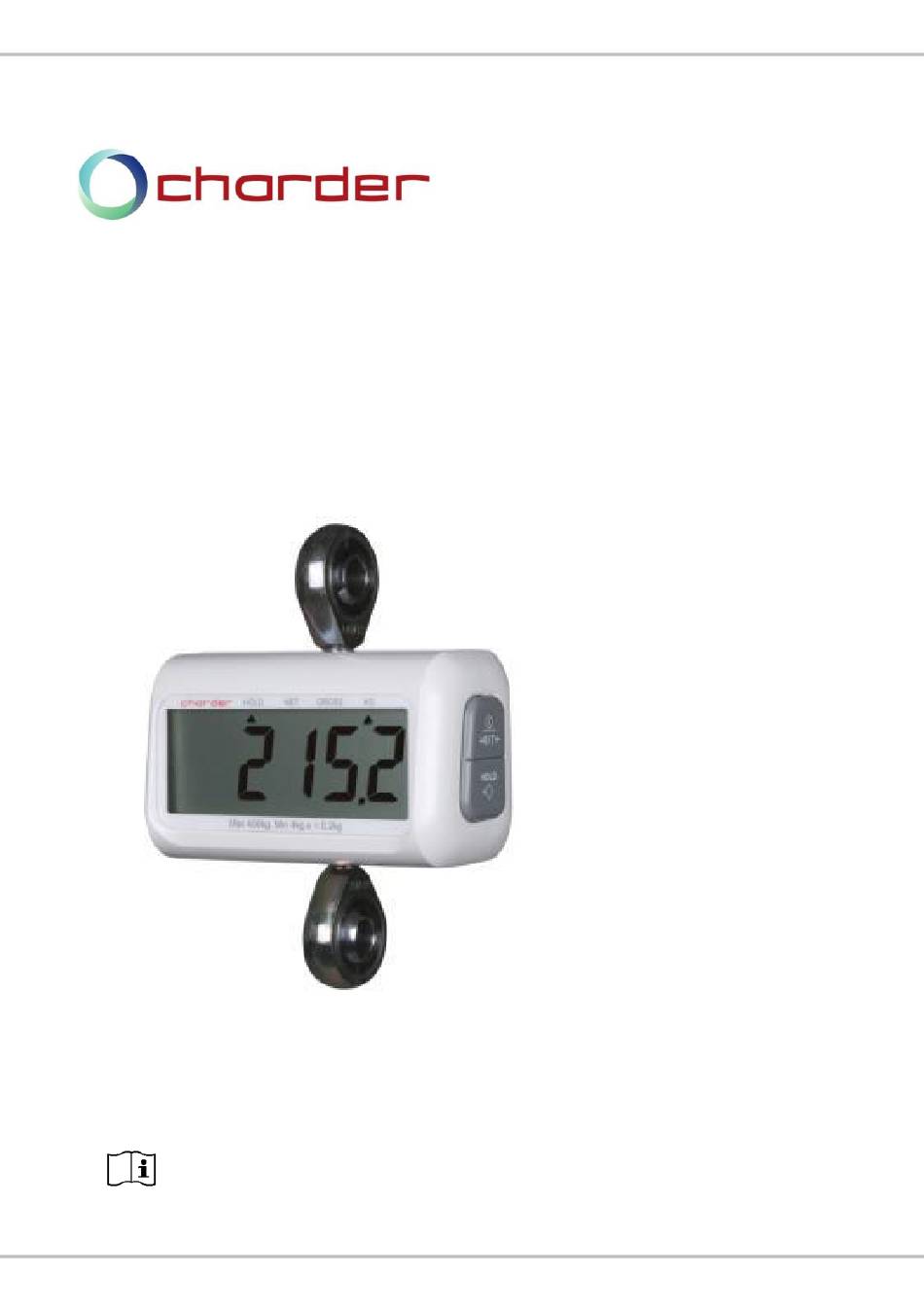

  • Page 1 USER MANUAL MHS2600I Lift Scale Please keep the instruction manual at hand all the time for future reference.
  • Page 2 Explanation of Graphic Symbols on Label/Packaging Caution, consult Separate collection for accompanying documents waste of electrical and before use electronic equipment, in accordance with Directive 2002/96/EC Manufacturer of medical Manufacturing year of device medical device Carefully read user manual Medical electrical before installation and equipment with Type B usage, and follow...
  • Page 3 Copyright© Charder Electronic Co., Ltd. All rights reserved. This user manual is protected by international copyright law. All content is licensed, and usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual.

  • Page 4: Table Of Contents

    CONTENTS I. Safety Notes ................5 A. General Information ............. 5 B. EMC Guidance and Manufacturer's Declaration ......8 II. Installation ................12 A. General Warnings............... 12 B. Inserting Batteries ............. 14 III. Indicator and Key Functions ..........15 IV. Using Device ...............17 A.

  • Page 5: Safety Notes

    I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner.
  • Page 6 Do not lean against device, to minimize falling risk.  Device must not be modified. Any unauthorized modification will  void warranty, and Charder is not responsible for resulting damage. Do not exceed maximum loading capacity.  Maximum safe overload is 6 times maximum capacity of device.
  • Page 7 Warranty/Liability If Charder is responsible for a fault or defect present upon receipt of  the unit, Charder shall either repair the fault, or supply a replacement unit. Should the repairs or replacement delivery fail, statutory provisions shall be valid. The period of warranty shall be two years, beginning on the date of purchase.

  • Page 8: Emc Guidance And Manufacturer's Declaration

    B. EMC Guidance and Manufacturer's Declaration Guidance and manufacturer’s declaration-electromagnetic emissions The MHS2600I/MHS2600I Lift Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment.
  • Page 9 Guidance and manufacturer’s declaration-electromagnetic immunity The MHS2600I/MHS2600I Lift Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. IEC 60601 Compliance...
  • Page 10 Guidance and manufacturer’s declaration-electromagnetic immunity The MHS2600I/MHS2600I Lift Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that is used in such an environment. IEC 60601 test Compliance...
  • Page 11 Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. Recommended separation distance between portable and mobile RF communications equipment and the MHS2600I/MHS2600I Lift Scale The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.

  • Page 12: Installation

    II. Installation A. General Warnings Tilt angle Tilt angle exceeding 3 degrees will result in inaccurate reading. 3∘ 3∘ Horizontal rotation After assembly at lifter, device must not be rotated horizontally. Rotation should only be conducted by lift system utilizing 360-degree swivel bearing.
  • Page 13 Cardan joint is assembled with loadcell by manufacturer. Fixed joint should not be twisted by user. Misuse may result in hazard to measurement subject.

  • Page 14: Inserting Batteries

    B. Inserting Batteries 1. Locate battery cover at rear of 2. Remove battery cover device 3. Remove battery case 4. Insert batteries 5. Insert battery case 6. Replace battery cover...

  • Page 15: Indicator And Key Functions

    III. Indicator and Key Functions HOLD GROSS HOLD GROSS Display : Stable : Negative weight : Zero : Low battery Indicator 1. HOLD: indicates if hold is active 2. NET: indicates if current result is net weight 3. GROSS: indicates if current result is gross weight 4.
  • Page 16 Key Function (2-key model) 1. ON/OFF/O/T: Power on or power off. Reset display to 0.0 kg display (can be used if within ±2% of full capacity). Press and hold for 3 seconds to turn off. 2. HOLD: Determine stable weighing value - used when weight is unstable.

  • Page 17: Using Device

    IV. Using Device A. Basic Operation Switch on the device using [ON/OFF/O/T] key. The device will automatically perform self-calibration, displaying software version. Once "0.00 kg" appears on indicator, device is ready for measurement. Note: If "0.00 kg" does not display on indicator, press [ON/OFF/O/T] key to zero the device.

  • Page 18: Bmi (3-Key Model)

    C. BMI (3-key model) 1. In normal mode, press and hold [HOLD/BMI] key to enter BMI mode. 2. Display will show last recorded height. Digits will flash. 3. Press [ON/OFF/O/T] key to increase, [△] to decrease. Press and hold to speed up. 4.

  • Page 19: Device Setup

    V. Device Setup 2-key model When the device is switched on, press and hold the [HOLD] key for about 3 seconds, until the display shows the "SETUP”, followed by "A_OFF” (first option in setting menu). In device setup menu: [HOLD] to toggle next menu option [ON/OFF/O/T] to confirm selection / enter submenu Auto Power-Off: Instruct device to shut off automatically after a certain period of time.
  • Page 20 3-key model When the device is switched on, press and hold the key for about 3 △ seconds, until the display shows the "SETUP”, followed by "A_OFF” (first option in setting menu). In device setup menu: [HOLD/BMI] to toggle next menu option [ON/OFF/O/T] to confirm selection / enter submenu Auto Power-Off: Instruct device to shut off automatically after a certain period of time.

  • Page 21: Troubleshooting

    Warranty Program & Return Policy. 1. If Charder is responsible for a fault or defect present upon receipt of the unit, Charder shall either repair the fault, or supply a replacement unit.
  • Page 22 Distributor support required If the following errors occur, we recommend contacting your local Charder distributor for repair or replacement services: 1. Device will not power on Faulty on/off key  Broken or damaged wires causing short circuit or faulty connection ...

  • Page 23: Product Specifications

    VII. Product Specifications A. Device Information Model MHS2600I Weight Capacity 300 kg x 0.1 kg 400 kg x 0.2 kg Measurement ± 1.5e Accuracy OIML Class III LCD Screen 1.0-inch LCD screen (5 1/2 digits) Dimensions Overall 122(W) x 52(D) x 180(H) mm Device 1.04 kg...

  • Page 24: Declaration Of Conformity

    2014/31/EU Non-automatic Weighing Instruments Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 41262 Taiwan (R.O.C.) CD-IN-0990 7013V 11/2020...
