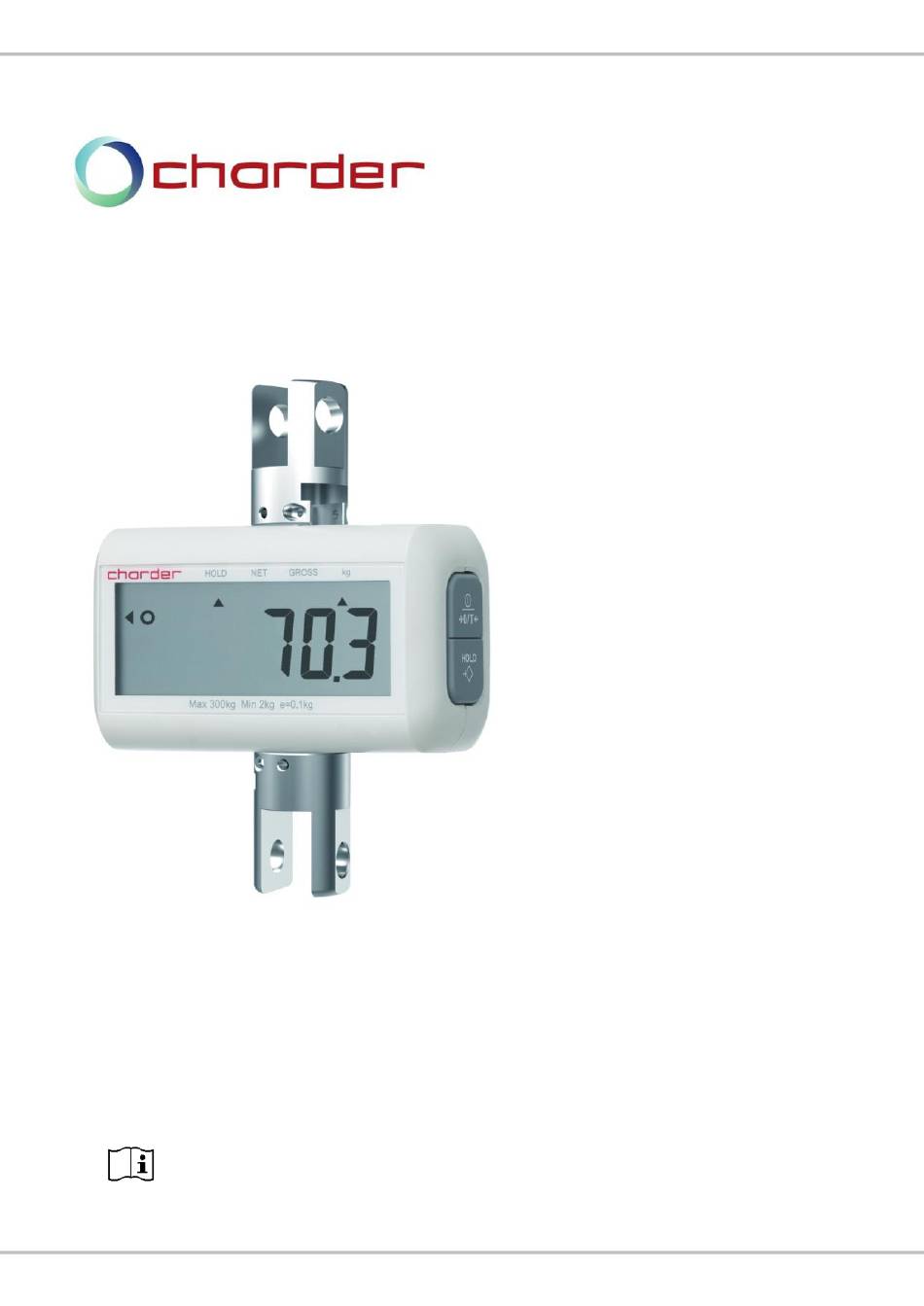

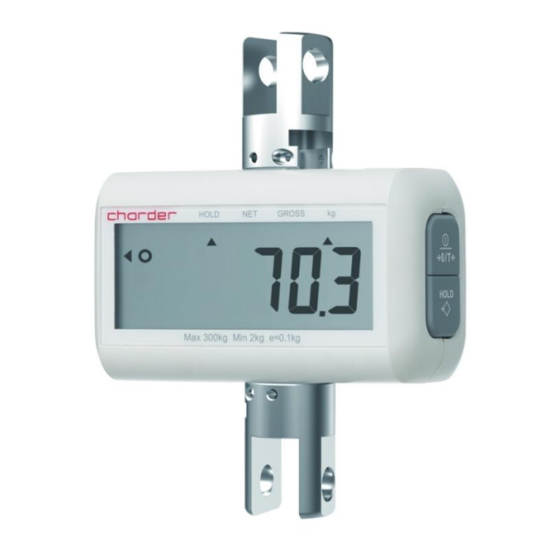

USER MANUAL
MHS2710
Lift Scale
Please keep the instruction manual at hand all the time for future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MHS2710 and is the answer not in the manual?

Questions and answers

Related Manuals for Charder MHS2710

Summary of Contents for Charder MHS2710

  • Page 1 USER MANUAL MHS2710 Lift Scale Please keep the instruction manual at hand all the time for future reference.
  • Page 2 Explanation of Graphic Symbols on Label/Packaging Caution, consult Authorized accompanying documents representative in the before use European Community Manufacturer of medical Indicates that device device conforms to International Organization of Legal Metrology (Class III) requirements Manufacturing year of Indicates that device medical device conforms to 2014/31/EU Non...
  • Page 3 This user manual is protected by international copyright law. All content is licensed, and usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual.

  • Page 4: Table Of Contents

    CONTENTS I. Safety Notes ................5 A. General Information ............. 5 B. EMC Guidance and Manufacturer's Declaration ......8 II. Installation ................12 A. General Warnings............... 12 B. Inserting Batteries ............. 15 III. Indicator and Key Functions ..........16 IV. Using Device ...............18 A.

  • Page 5: Safety Notes

    I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner.
  • Page 6 If results are inaccurate, please contact local distributor. Warranty/Liability If Charder is responsible for a fault or defect present upon receipt of  the unit, Charder shall either repair the fault, or supply a replacement unit.
  • Page 7 Charder service partner, using original Charder accessories and spare parts. Charder is not liable for any damages arising from improper maintenance or usage. Dismantlement of the device will void the warranty.

  • Page 8: Emc Guidance And Manufacturer's Declaration

    B. EMC Guidance and Manufacturer's Declaration Guidance and manufacturer’s declaration-electromagnetic emissions The MHS2710 Lift Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment.
  • Page 9 Guidance and manufacturer’s declaration-electromagnetic immunity The MHS2710 Lift Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. IEC 60601 Compliance...
  • Page 10 Guidance and manufacturer’s declaration-electromagnetic immunity The MHS2710 Lift Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that is used in such an environment. IEC 60601 test Compliance...
  • Page 11 Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. Recommended separation distance between portable and mobile RF communications equipment and the MHS2710 Lift Scale The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.

  • Page 12: Installation

    transmitter in watts (W) according to the transmitter manufacturer. NOTE1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. II.
  • Page 13 Set Screws Set screws are used to fix direction of lift scale, and should not be loosened. Ensure screws are tight before use. Set screw...
  • Page 14 Tilt angle Tilt angle exceeding 3 degrees will result in inaccurate reading. 3∘ 3∘ Horizontal rotation Although not strictly necessary, device should ideally be installed on lift system utilizing 360-degree swivel bearing. After assembly at lifter, rotation should ideally be conducted using lift system rather than device.

  • Page 15: Inserting Batteries

    B. Inserting Batteries The device utilizes a rechargeable battery pack. When power is low, please recharge the battery pack using the micro-USB port. When the port light is blinking red, battery is being charged. When the port light is stable green, battery is fully charged. Charging Port...

  • Page 16: Indicator And Key Functions

    III. Indicator and Key Functions HOLD GROSS HOLD GROSS Display : Stable : Negative weight : Zero : Low battery Key Function : Power on or power off. Reset display to 0.0 kg display (can be used if within ±2% of full capacity). Press and hold for 3 seconds to turn off.
  • Page 17 Press and hold for 3 seconds to enter BMI mode. : Switch between kg and lb. Last-used unit will be stored in memory. (non-functional on OIML model) Indicator 1. HOLD: indicates if hold is active 2. NET: indicates if current result is net weight 3.

  • Page 18: Using Device

    IV. Using Device A. Basic Operation Switch on the device using key. The device will automatically perform self-calibration, displaying software version. Once "0.00 kg" appears on indicator, device is ready for measurement. Note: If "0.00 kg" does not display on indicator, press key to zero the device.

  • Page 19: Bmi

    C. BMI 1. In normal mode, press and hold key for 3 seconds to enter BMI mode. 2. Display will show last recorded height. Digits will flash. 3. Press key to increase, to decrease. Press and hold to speed 4. After inputting height, press to confirm.

  • Page 20: Device Setup

    and press key. V. Device Setup 3-key model When the device is switched on, press the key 3 times while pressing and holding key. Display will show "SET”, followed by "A_OFF” (first option in setting menu). In device setup menu: [HOLD] to toggle next menu option [UNIT] to toggle previous menu option to confirm selection / enter submenu...

  • Page 21: Wireless Connection

    Warranty Program & Return Policy. 1. If Charder is responsible for a fault or defect present upon receipt of the unit, Charder shall either repair the fault, or supply a replacement unit.
  • Page 22 If the steps above cannot resolve the problem, re-calibration may be  required to correct weighing accuracy Distributor support required If the following errors occur, we recommend contacting your local Charder distributor for repair or replacement services: 1. Device will not power on Faulty on/off key ...

  • Page 23: Product Specifications

    VIII. Product Specifications A. Device Information Model MHS2710 Weight Capacity 300 kg x 0.1 kg 400 kg x 0.2 kg Measurement Accuracy ± 150g ± 300g OIML Class III LCD Screen 1.0-inch LCD screen (5 1/2 digits) Dimensions Overall 122(W) x 52(D) x 180(H) mm Device 1.04 kg...

  • Page 24: Technical Data For Joints

    B. Technical Data for Joints SS-6381 16mm SS-6384 13mm SS-7121 18.5mm SS-6385 12mm SS-6662 14mm SS-6663 24mm SS-6664 30mm SS-7122 6mm SS1-0681 24mm SS1-0691 29mm SS1-0641 12mm SS-00058 7.7mm...
  • Page 25 Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...
  • Page 26 Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...
  • Page 27 Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...

  • Page 28: Declaration Of Conformity

    Non-automatic Weighing Instruments Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 412 Taiwan (R.O.C.) CD-IN-XXXXX REV XXX 09/2020...
