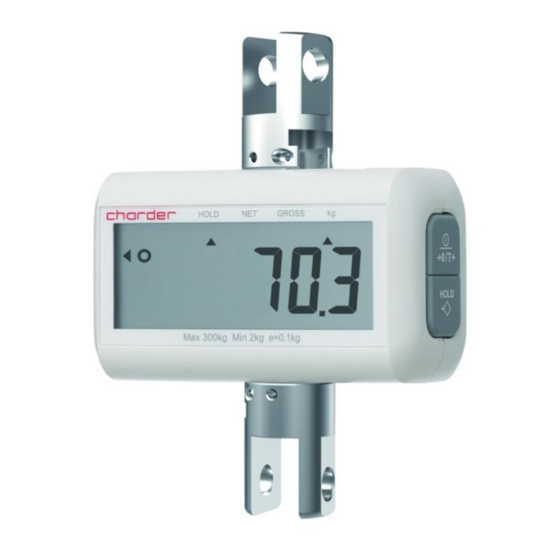

Charder MHS2510I User Manual

Lift scale
Hide thumbs Also See for MHS2510I:
Table of Contents

Advertisement

Quick Links

Download this manual

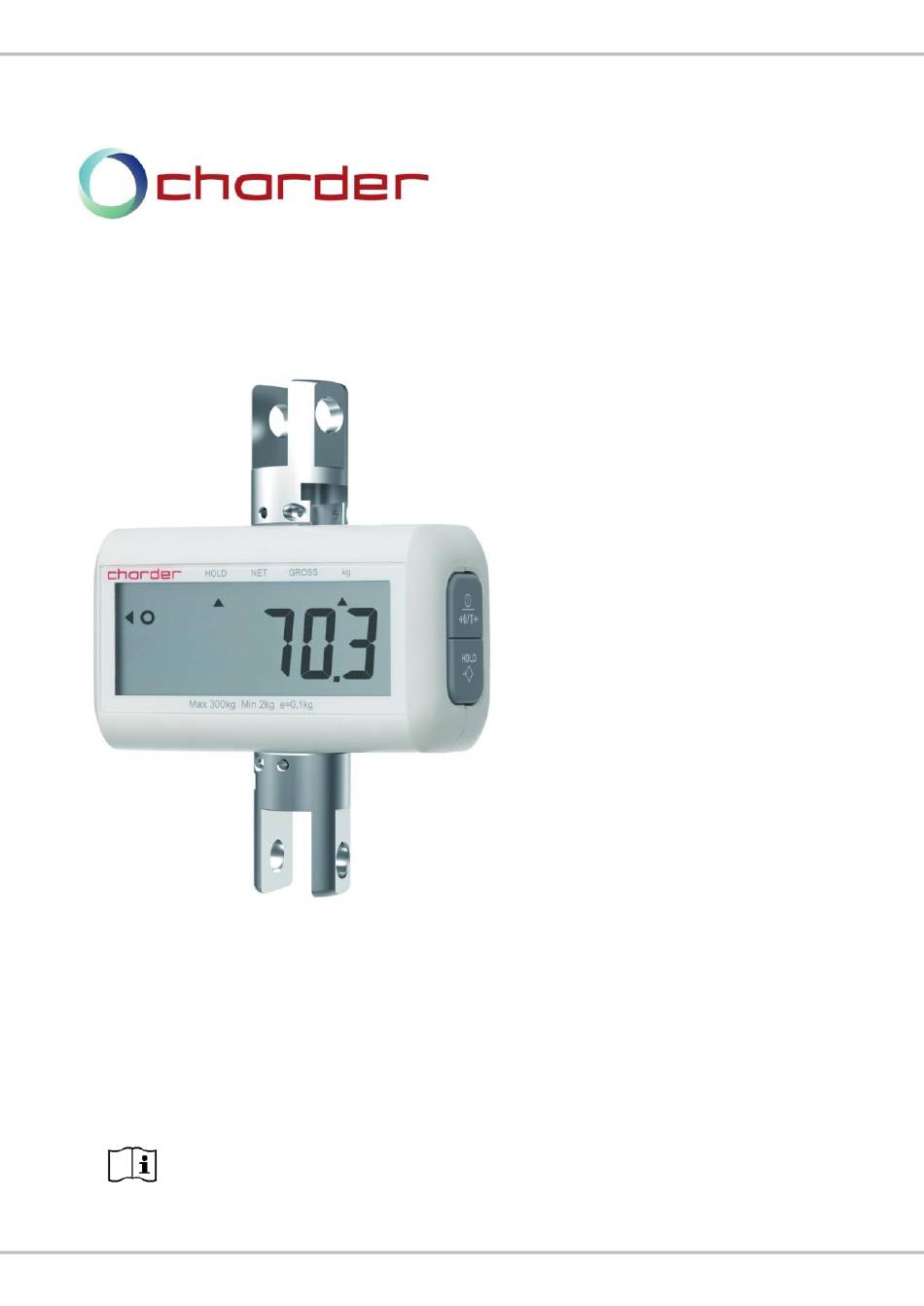

USER MANUAL
MHS2510I/MHS2610I
Lift Scale
Please keep the instruction manual at hand all the time for future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MHS2510I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Charder MHS2510I

Summary of Contents for Charder MHS2510I

  • Page 1 USER MANUAL MHS2510I/MHS2610I Lift Scale Please keep the instruction manual at hand all the time for future reference.
  • Page 2 Explanation of Graphic Symbols on Label/Packaging Caution, consult Authorized accompanying documents representative in the before use European Community Manufacturer of medical Indicates that device device conforms to International Organization of Legal Metrology (Class III) requirements Manufacturing year of Indicates that device medical device conforms to 2014/31/EU Non...
  • Page 3 This user manual is protected by international copyright law. All content is licensed, and usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual.

  • Page 4: Table Of Contents

    CONTENTS I. Safety Notes ................5 A. General Information ............. 5 B. EMC Guidance and Manufacturer's Declaration ......8 II. Installation ................12 A. General Warnings............... 12 B. Inserting Batteries ............. 15 III. Indicator and Key Functions ..........16 IV. Using Device ...............18 A.

  • Page 5: Safety Notes

    I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner.
  • Page 6 If results are inaccurate, please contact local distributor. Warranty/Liability If Charder is responsible for a fault or defect present upon receipt of  the unit, Charder shall either repair the fault, or supply a replacement unit.
  • Page 7 Charder service partner, using original Charder accessories and spare parts. Charder is not liable for any damages arising from improper maintenance or usage. Dismantlement of the device will void the warranty.

  • Page 8: Emc Guidance And Manufacturer's Declaration

    B. EMC Guidance and Manufacturer's Declaration Guidance and manufacturer’s declaration-electromagnetic emissions The MHS2510I/MHS2610I Lift Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment.
  • Page 9 Guidance and manufacturer’s declaration-electromagnetic immunity The MHS2510I/MHS2610I Lift Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. IEC 60601 Compliance...
  • Page 10 Guidance and manufacturer’s declaration-electromagnetic immunity The MHS2510I/MHS2610I Lift Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that is used in such an environment. IEC 60601 test Compliance...
  • Page 11 Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. Recommended separation distance between portable and mobile RF communications equipment and the MHS2510I/MHS2610I Lift Scale The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.

  • Page 12: Installation

    II. Installation A. General Warnings To ensure safety, correct assembling procedure must be followed. Tools required: hexagon screwdriver, torque wrench 1. Hold one side of device securely 2. Secure screws from other side. Repeat for both sides (ex: first secure left, then right, or vice versa).
  • Page 13 Set Screws Set screws are used to fix direction of lift scale, and should not be loosened. Ensure screws are tight before use. Set screw...
  • Page 14 Tilt angle Tilt angle exceeding 3 degrees will result in inaccurate reading. 3∘ 3∘ Horizontal rotation Although not strictly necessary, device should ideally be installed on lift system utilizing 360-degree swivel bearing. After assembly at lifter, rotation should ideally be conducted using lift system rather than device.

  • Page 15: Inserting Batteries

    B. Inserting Batteries 1. Locate battery cover at rear of 2. Remove battery cover device 3. Remove battery case 4. Insert batteries 5. Insert battery case 6. Replace battery cover...

  • Page 16: Indicator And Key Functions

    III. Indicator and Key Functions HOLD GROSS HOLD GROSS Display : Stable : Negative weight : Zero : Low battery Key Function (2-key model) 1. ON/OFF/O/T: Power on or power off. Reset display to 0.0 kg display (can be used if within ±2% of full capacity). Press and hold for 3 seconds to turn off.
  • Page 17 Key Function (3-key model) 1. ON/OFF/O/T: Power on or power off. Reset display to 0.0 kg display (can be used if within ±2% of full capacity). Press and hold for 3 seconds to turn off. 2. HOLD/BMI: Determine stable weighing value - used when weight is unstable.

  • Page 18: Using Device

    IV. Using Device A. Basic Operation Switch on the device using [ON/OFF/O/T] key. The device will automatically perform self-calibration, displaying software version. Once "0.00 kg" appears on indicator, device is ready for measurement. Note: If "0.00 kg" does not display on indicator, press [ON/OFF/O/T] key to zero the device.

  • Page 19: Bmi (3-Key Model)

    C. BMI (3-key model) 1. In normal mode, press and hold [HOLD/BMI] key to enter BMI mode. 2. Display will show last recorded height. Digits will flash. 3. Press [ON/OFF/O/T] key to increase, [△] to decrease. Press and hold to speed up. 4.

  • Page 20: Device Setup

    V. Device Setup 2-key model When the device is switched on, press and hold the [HOLD] key for about 3 seconds, until the display shows the "SETUP”, followed by "A_OFF” (first option in setting menu). In device setup menu: [HOLD] to toggle next menu option [ON/OFF/O/T] to confirm selection / enter submenu Auto Power-Off: Instruct device to shut off automatically after a certain period of time.
  • Page 21 3-key model When the device is switched on, press and hold the key for about 3 △ seconds, until the display shows the "SETUP”, followed by "A_OFF” (first option in setting menu). In device setup menu: [HOLD/BMI] to toggle next menu option [ON/OFF/O/T] to confirm selection / enter submenu Auto Power-Off: Instruct device to shut off automatically after a certain period of time.

  • Page 22: Troubleshooting

    Warranty Program & Return Policy. 1. If Charder is responsible for a fault or defect present upon receipt of the unit, Charder shall either repair the fault, or supply a replacement unit.
  • Page 23 Distributor support required If the following errors occur, we recommend contacting your local Charder distributor for repair or replacement services: 1. Device will not power on Faulty on/off key  Broken or damaged wires causing short circuit or faulty connection ...
  • Page 24 Error Messages Error Message Reason Action Low battery warning Replace batteries Voltage of battery is too low to operate device Overload Reduce weight on Total load exceeds measurement device's maximum platform and try again capacity Counting Error Error normally caused Signal from loadcells too by faulty loadcell or wiring.

  • Page 25: Product Specifications

    VII. Product Specifications A. Device Information Model MHS2510I / MHS2610I Weight Capacity 300 kg x 0.1 kg 400 kg x 0.2 kg Measurement Accuracy ± 150g ± 300g OIML Class III LCD Screen 1.0-inch LCD screen (5 1/2 digits) Dimensions...

  • Page 26: Technical Data For Joints

    B. Technical Data for Joints SS-6381 16mm SS-6384 13mm SS-7121 18.5mm SS-6385 12mm SS-6662 14mm SS-6663 24mm SS-6664 30mm SS-7122 6mm SS1-0681 24mm SS1-0691 29mm SS1-0641 12mm SS-00058 7.7mm...
  • Page 27 Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...

  • Page 28: Declaration Of Conformity

    Non-automatic Weighing Instruments Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 412 Taiwan (R.O.C.) CD-IN-1191 REV XXX 06/2020...
