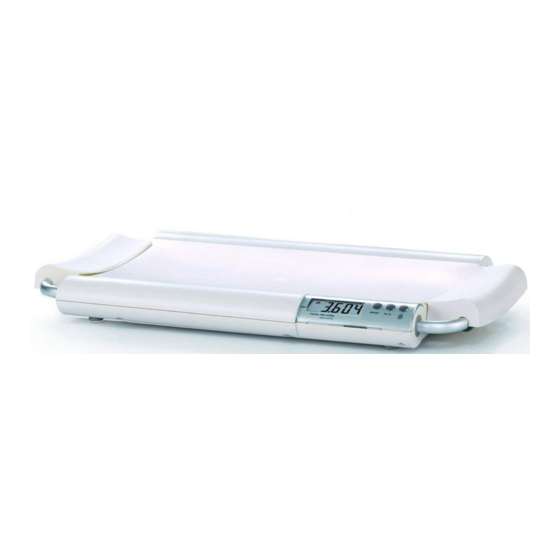

Infant scale
Hide thumbs Also See for MS2400:
Table of Contents

Advertisement

Quick Links

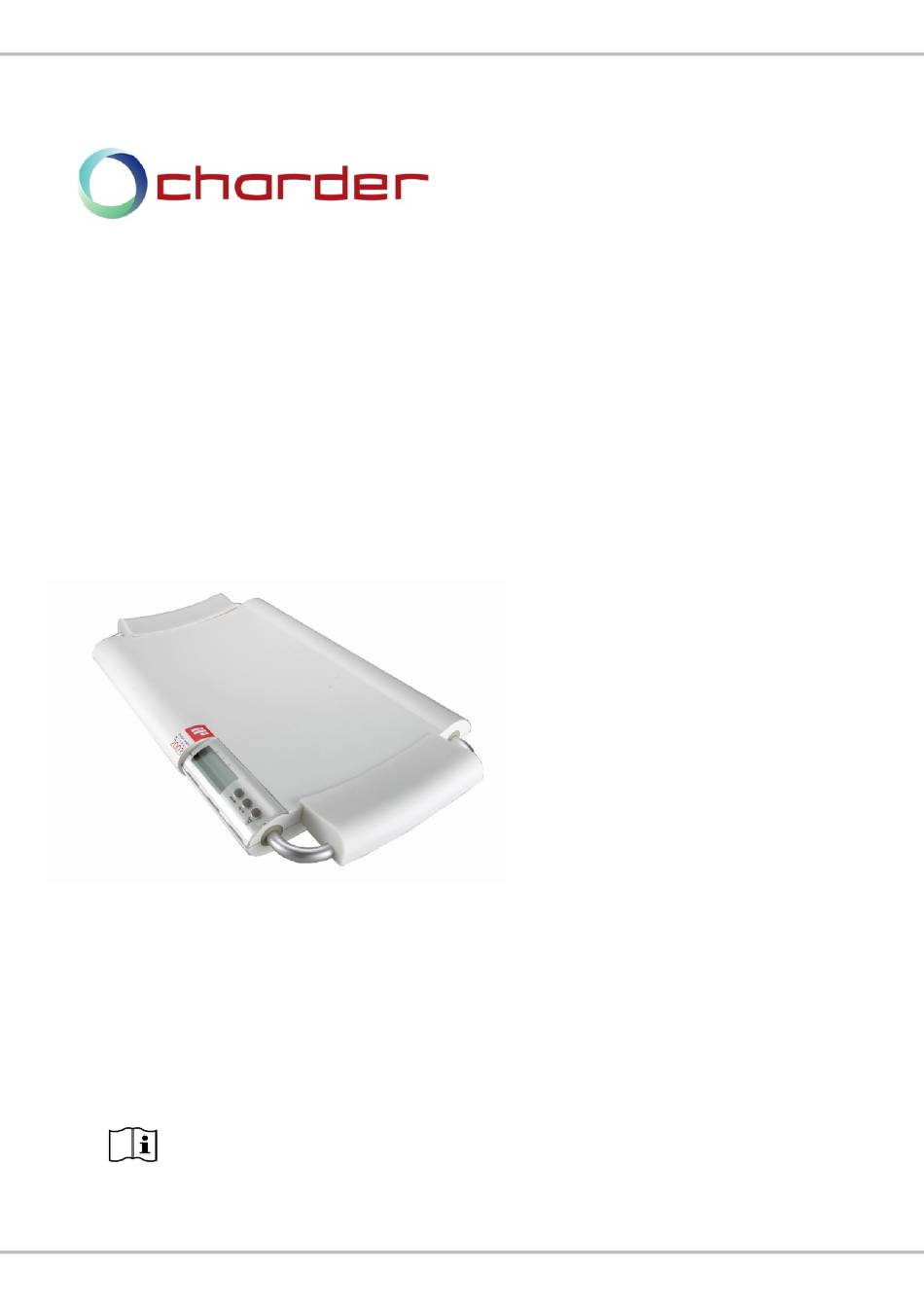

USER MANUAL
MS2400
Infant Scale
Please keep the instruction manual at hand all the time for future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS2400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Charder MS2400

Summary of Contents for Charder MS2400

  • Page 1 USER MANUAL MS2400 Infant Scale Please keep the instruction manual at hand all the time for future reference.
  • Page 2 Explanation of Graphic Symbols on Label/Packaging Caution, consult Authorized accompanying documents representative in the before use European Community Manufacturer of medical Indicates that device device conforms to International Organization of Legal Metrology (Class III) requirements Manufacturing year of Indicates that device medical device conforms to 2014/31/EU Non...
  • Page 3 This user manual is protected by international copyright law. All content is licensed, and usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual.

  • Page 4: Table Of Contents

    CONTENTS I. Safety Notes ................5 A. General Information ............. 5 B. EMC Guidance and Manufacturer's Declaration ......8 II. Installation ................12 A. Height Measure Attachment ..........12 B. Inserting Batteries ............. 14 C. Using AC Adapter ............... 14 III. Indicator ................15 IV.

  • Page 5: Safety Notes

    I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner.
  • Page 6 If results are inaccurate, please contact local distributor. Warranty/Liability If Charder is responsible for a fault or defect present upon receipt of  the unit, Charder shall either repair the fault, or supply a replacement unit.
  • Page 7 Charder service partner, using original Charder accessories and spare parts. Charder is not liable for any damages arising from improper maintenance or usage. Dismantlement of the device will void the warranty. Disposal This product is not to be treated as regular household waste, but ...

  • Page 8: Emc Guidance And Manufacturer's Declaration

    B. EMC Guidance and Manufacturer's Declaration Guidance and manufacturer’s declaration-electromagnetic emissions The MS2400 Infant Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment.
  • Page 9 Guidance and manufacturer’s declaration-electromagnetic immunity The MS2400 Infant Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. IEC 60601 Compliance...
  • Page 10 Guidance and manufacturer’s declaration-electromagnetic immunity The MS2400 Infant Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that is used in such an environment. IEC 60601 test Compliance...
  • Page 11 Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. Recommended separation distance between portable and mobile RF communications equipment and the MS2400 Infant Scale The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.

  • Page 12: Installation

    II. Installation A. Height Measure Attachment 1. Attach bracket to device, and fasten screws using screwdriver. Version with rubber head pad rubber head pad Attach bracket here rubber head pad Version without rubber head pad Attach bracket here...
  • Page 13 2. Connect height measure attachment (HM80D or HM80M) to bracket. A clicking noise will be heard. 3. To detach height measure, find the latch located at the rear of the attachment. Press down on the buckle, and gently remove the attachment from bracket.

  • Page 14: Inserting Batteries

    B. Inserting Batteries Step 1. Locate battery cover Step 2. Remove battery cover Step 3. Insert 9V battery Step 4. Replace battery cover C. Using AC Adapter Device can be powered using AC adapter located at rear of device. Plug adapter into device before plugging into mains.

  • Page 15: Indicator

    III. Indicator Indicator and Key Functions Key Functions 1. RECALL: Recall and release weight stored in memory 2. TARE: Deduct weight from reading after measurement 3. ON/ZERO/OFF: When device is off, press to power on. When device is on, press to zero weight (under 2% of max capacity). Press and hold to turn device off.

  • Page 16: Using Device

    IV. Using Device A. Basic Operation Switch on the device using [ON/ZERO/OFF] key. The device will automatically perform self-calibration, displaying software version. Once "0.00 kg" appears on indicator, device is ready for measurement. Note: If "0.00 kg" does not display on indicator, press [ZERO] key to zero the device.

  • Page 17: Device Setup

    V. Device Setup When the device is switched on, press and hold the [TARE] key until the display shows "SET" followed by "A.OFF” (first option in setting menu). In device setup menu: [TARE] to toggle menu option [RECALL] to confirm selection / enter submenu Auto Power-Off: Instruct device to shut off automatically after a certain period of time.
  • Page 18 Bluetooth (optional): If device has Bluetooth module installed, Bluetooth function can be turned on or off. Press [TARE] to toggle between on/off, and [RECALL] key to confirm selection. Wi-Fi (optional): If device has Wi-Fi module installed, Wi-Fi function can be turned on or off. Press [TARE] to toggle between on/off, and [RECALL] key to confirm selection.

  • Page 19: Troubleshooting

    Warranty Program & Return Policy. 1. If Charder is responsible for a fault or defect present upon receipt of the unit, Charder shall either repair the fault, or supply a replacement unit.
  • Page 20 If the steps above cannot resolve the problem, re-calibration may be  required to correct weighing accuracy Distributor support required If the following errors occur, we recommend contacting your local Charder distributor for repair or replacement services: 1. Device will not power on Faulty on/off key ...
  • Page 21 Error Messages Error Message Reason Action Low battery warning Replace batteries, or Voltage of battery is too plug in AC adapter low to operate device Overload Reduce weight on Total load exceeds measurement device's maximum platform and try again capacity Over Zero Error normally caused Zero count is higher than...

  • Page 22: Product Specifications

    VII. Product Specifications A. Device Information Model MS2400 Weight Capacity 20 kg x 20g Measurement Accuracy ±0.30g LCD Screen 1.0-inch LCD screen (4 1/2 digits) Dimensions Device plus 640(W) x 355(D) x 60(H) mm Handle Platform 500(W) x 350(D) mm...

  • Page 23: Power Adapter Standards

    B. Power Adapter Standards Warning The device is only compatible with the power adapters specified in the dashed block below. DRAWING NO.: CE APPROVED TYPE NO. / TYPE Adapter VOLTAGE MODEL NO.: plug 9V DC 100mA AD-038A D41W1090100-13/1 9V DC 100mA AD-0484 D35W090100-23/1 9V DC 100mA...

  • Page 24: Declaration Of Conformity

    Non-automatic Weighing Instruments Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 412 Taiwan (R.O.C.) CD-IN-1095 REV XXX 06/2020...
